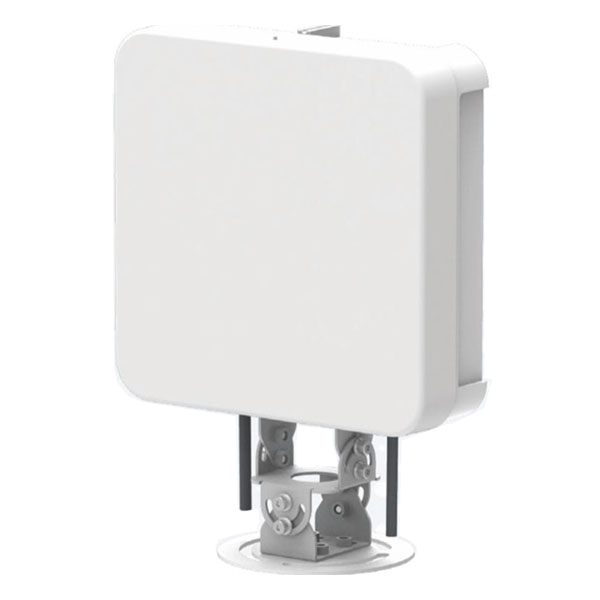

OT-MTTR-3-485 Checkpoint Speed
Simultaneous identification of up to 64 vehicle targets with classification (depending on model).
High vehicle capture rate exceeding 99% with a multi-capture rate of less than 1%.
Precise vehicle positioning accuracy of 0.1 meters.
Configurable capture trigger range from 15m to 40m with support for remote adjustment.
Supports three capture modes: incoming, outgoing, and bidirectional traffic.
Specifically optimized for single, triple, and six-lane road checkpoint monitoring.
Military-grade technology ensures high reliability and long-term stability.
Supports RS485 and WIFI communication for flexible system integration.
- Description
- Datasheet
- Reviews (0)
Description
The OT-MTTR-3-485 Checkpoint Speed Measurement Radar series is a new generation of radar products designed with fully independent intellectual property rights. This series is engineered to meet the monitoring requirements of single-lane, three-lane, and six-lane roads, providing real-time data on vehicle distance, speed, and direction. Built using military-grade technology, it offers exceptional reliability and precision that meets national metrology standards. The OT-MTTR-3-485 can trigger cameras to capture high-definition images of specific vehicles, such as those speeding or driving in the wrong direction. Its design supports remote debugging and easy installation, making it highly effective for checkpoint monitoring, traffic violation detection, and intelligent transportation systems.
OT-MTTR-3-485 |
|
|
OT-MTTR-3-485 Checkpoint Speed |
|
Property |
Value |
|
Base Hole Diameter |
6.5mm |
|
Capture Distance |
15~40m (adjustable) |
|
Capture Rate |
99% |
|
Communication |
RS485 / WIFI |
|
Corrosion Resistance |
IEC60068-2-11 |
|
Data Update Time |
50ms |
|
Dimensions |
185x98x264mm (with base) |
|
Input Voltage Range |
9V to 24V DC |
|
Interface |
RS485 |
|
Max Resolved Targets |
16 |
|
Missed Capture Rate |
<1% |
|
Monitored Lanes |
1 / 3 / 6 Lanes |
|
Multi-capture Rate |
<1% |
|
Operating Frequency |
24GHz |
|
Operating Humidity |
0% to 90% @ RH (50 degC) |
|
Operating Temperature |
-40 degC to +85 degC |
|
Power Consumption |
6W |
|
Power Supply |
DC12V (supports 9~24V range) |
|
Protection Grade |
IP67 |
|
Radar Installation Height |
4~10m (6m recommended) |
|
Radar Installation Pitch Angle |
10 deg to 15 deg |
|
Radar Installation Yaw Angle |
-12 deg to 12 deg (0 deg recommended) |
|
Ranging Error |
+0.325m |
|
Ranging Range |
0.2~50m |
|
Speed Error (180-400km/h) |
-1 to 0km/h |
|
Speed Error (20-180km/h) |
-0.5 to 0km/h |
|
Speed Range |
20~400km/h |
|
Transmit Power |
10dBm |
|
Weight |
1.54kg |
Features |
|
|
Simultaneous identification of up to 64 vehicle targets with classification (depending on model). |
|
|
High vehicle capture rate exceeding 99% with a multi-capture rate of less than 1%. |
|
|
Precise vehicle positioning accuracy of 0.1 meters. |
|
|
Configurable capture trigger range from 15m to 40m with support for remote adjustment. |
|
|
Supports three capture modes: incoming, outgoing, and bidirectional traffic. |
|
|
Specifically optimized for single, triple, and six-lane road checkpoint monitoring. |
|
|
Military-grade technology ensures high reliability and long-term stability. |
|
|
Supports RS485 and WIFI communication for flexible system integration. |
|
Applications |
|
|
Its design supports remote debugging and easy installation, making it highly effective for checkpoint monitoring, traffic violation detection, and intelligent transportation systems. |
|
