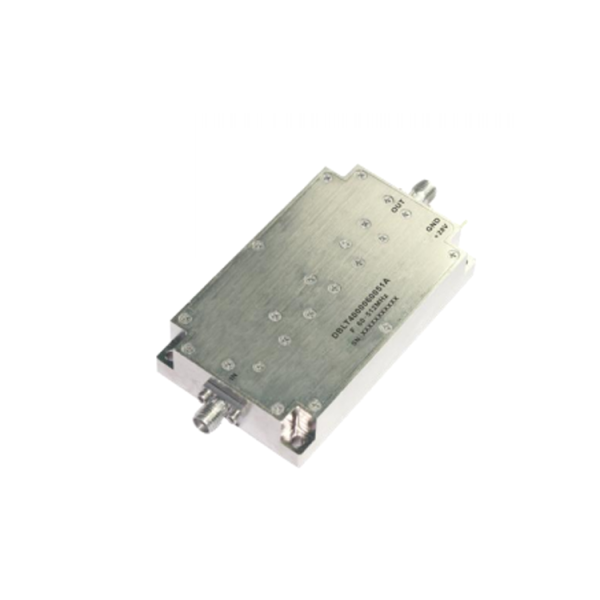

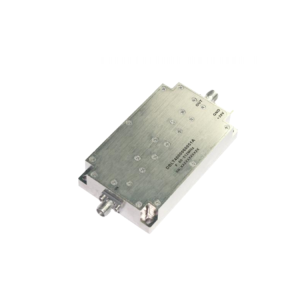

Power Limiter 0.06GHz – 0.512GHz . OLT4000060051A

HOT

Power Limiter 0.06GHz – 0.512GHz . OLT4000060051A

RFECHO Power Limiter is an active product, and its frequency range from 0.06GHz to 0.512GHz . The RFECHO Power Limiter has a High Isolation Limiter, Low insertion loss and good return loss, etc. according to the conditions of different working frequencies, microwave power, microwave pulse width, duty cycle and required interface form, the design of RFECHO limiter has different innovative adjustments.

SKU: OLT4000060051A Categories: Active Device, power limiter

Description



PDF

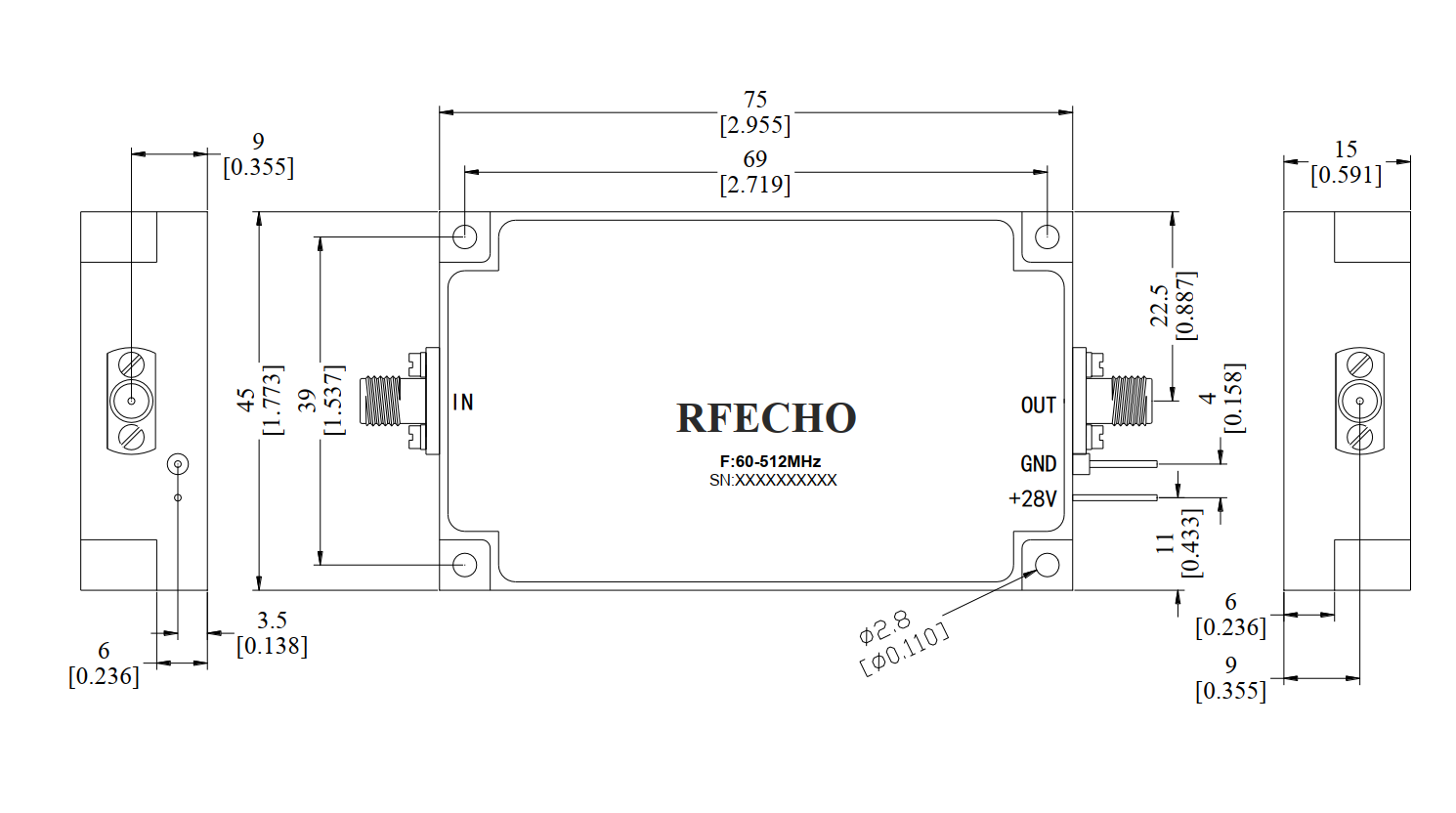

Outline

Text















Additional information

Min. Frequency (GHz)

0.06

Max. Frequency (GHz)

0.512

CW Input Power (W)

2

Peak Power Flat Linkage (dBm)

20

Insertion Loss (dB)

0.8

VSWR

1.4
