OHP-11000-20000-A:

  • Cut Off Frequency: 11GHz,
  • Pass Band Frequency:  11-20GHz,
  • Pass Band Insertion Loss: 1.0dB,
  • Pass Band VSWR: 1.7,
  • Rejection: ≥55 dB @ DC-9.3 GHz.
SKU: OHP-11000-20000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

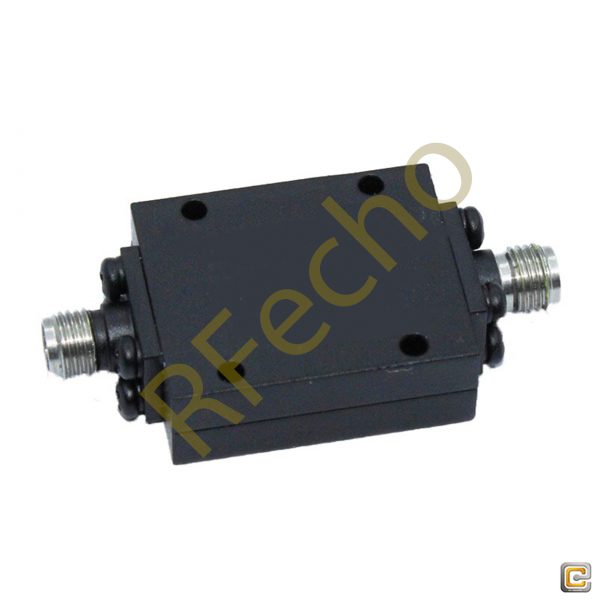

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Cavity Filter – OHP-11000-20000-A:

  • Cut Off Frequency: 11GHz,
  • Pass Band Frequency:  11-20GHz,
  • Pass Band Insertion Loss: 1.0dB,
  • Pass Band VSWR: 1.7,
  • Rejection: ≥55 dB @ DC-9.3 GHz.

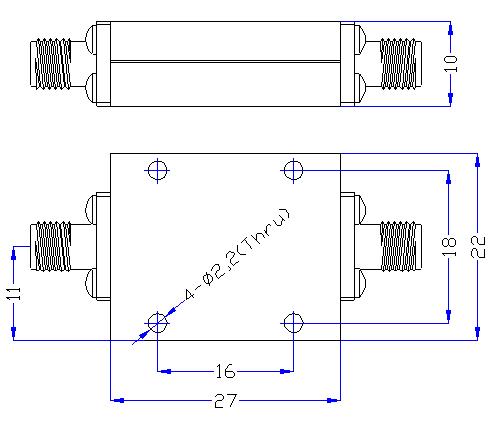

Outline

11 GHz to 20 GHz Rejection ≥55 dB @ DC-9.3 GHz High Pass Cavity Filter 01

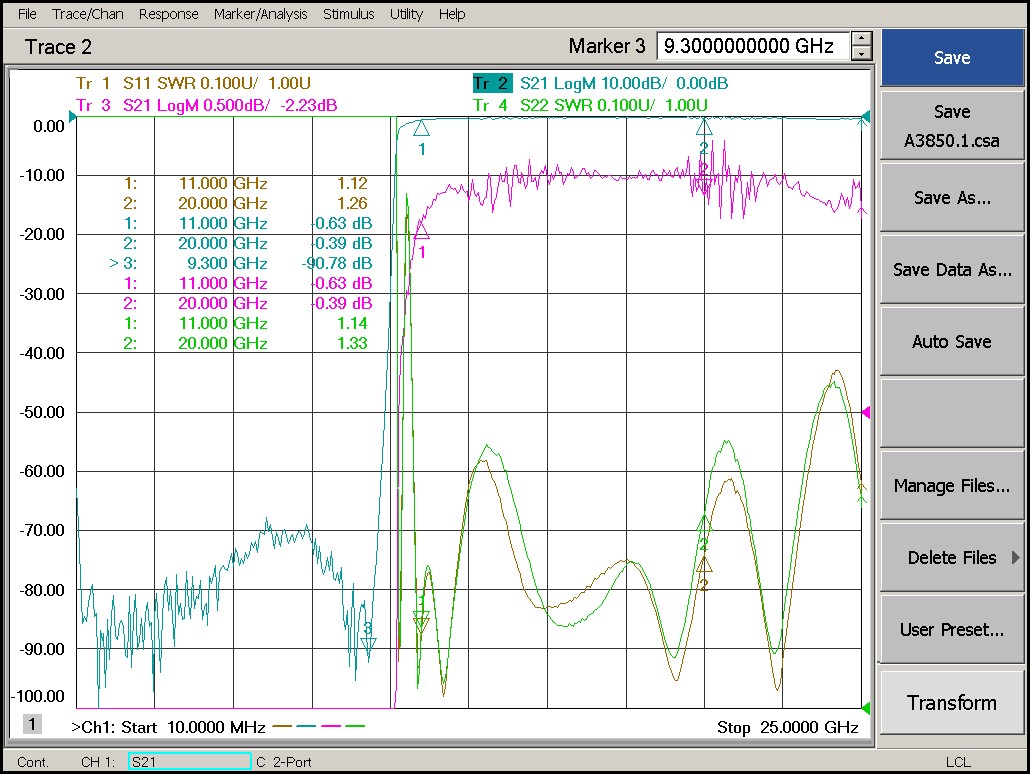

Plot

11 GHz to 20 GHz Rejection ≥55 dB @ DC-9.3 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.0314 kg
Min. Pass Band Frequency (GHz)

11.0

Max. Pass Band Frequency (GHz)

20

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤1.0dB

VSWR

≤1.7:1

Rejection

≥55 dB @ DC-9.3 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
