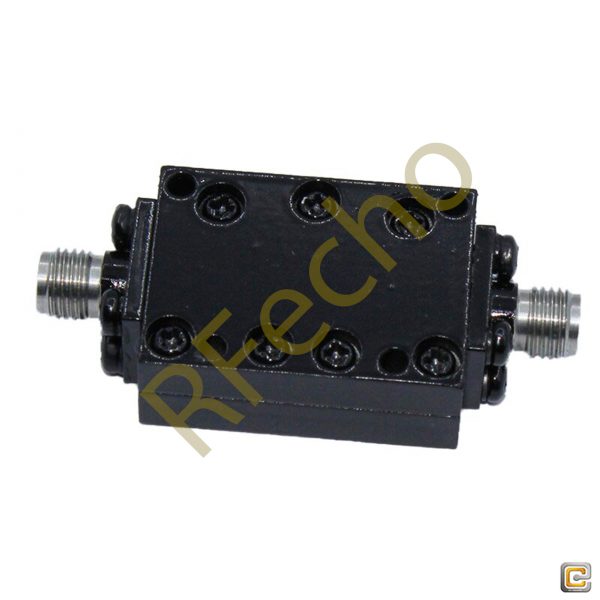

High Pass Passive RF Filter model OHP: 12500-24500 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This High Pass Passive RF Filter Manufactured with a passband frequency from 12.5GHz to 24.5GHz and a Cut-off frequency 12.5GHz. Our Cavity RF High Pass Filter provides a nominal insertion loss of ≤2.0dB @ 12.5GHz – 13GHz | ≤1.0dB @ 13GHz – 24.5GHz across its passband and a typical rejection of ≥60dB @ DC – 11.4GHz. Since the high end cutoff frequency of High Pass Passive RF Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Cavity RF High Pass Filter has Passband VSWR of ≤1.5:1 @ 12.5GHz – 20GHz | ≤1.8:1 @ 20GHz – 24.5GHz and power handling of ≤15W. High Pass Passive RF Filter is manufactured with SMA Female Connector and Net weight of 0.019Kg.
12.5GHz to 24.5GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 12.5GHz to 24.5GHz High Pass Passive RF Filter is ready for shipping worldwide after purchase. Additional specs of this Cavity RF High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-12500-24500 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Cavity Filter – OHP-12500-245000:

  • Cut Off Frequency: 12.5GHz,
  • Pass Band Frequency:  12.5-24.5GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.8,
  • Rejection: ≥60 dB @ DC-11.4 GHz.

Outline

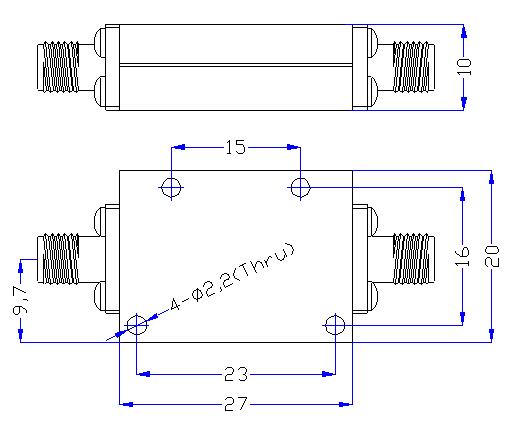

12.5 GHz to 24.5 GHz Rejection ≥60 dB @ DC-11.4 GHz High Pass Cavity Filter 01

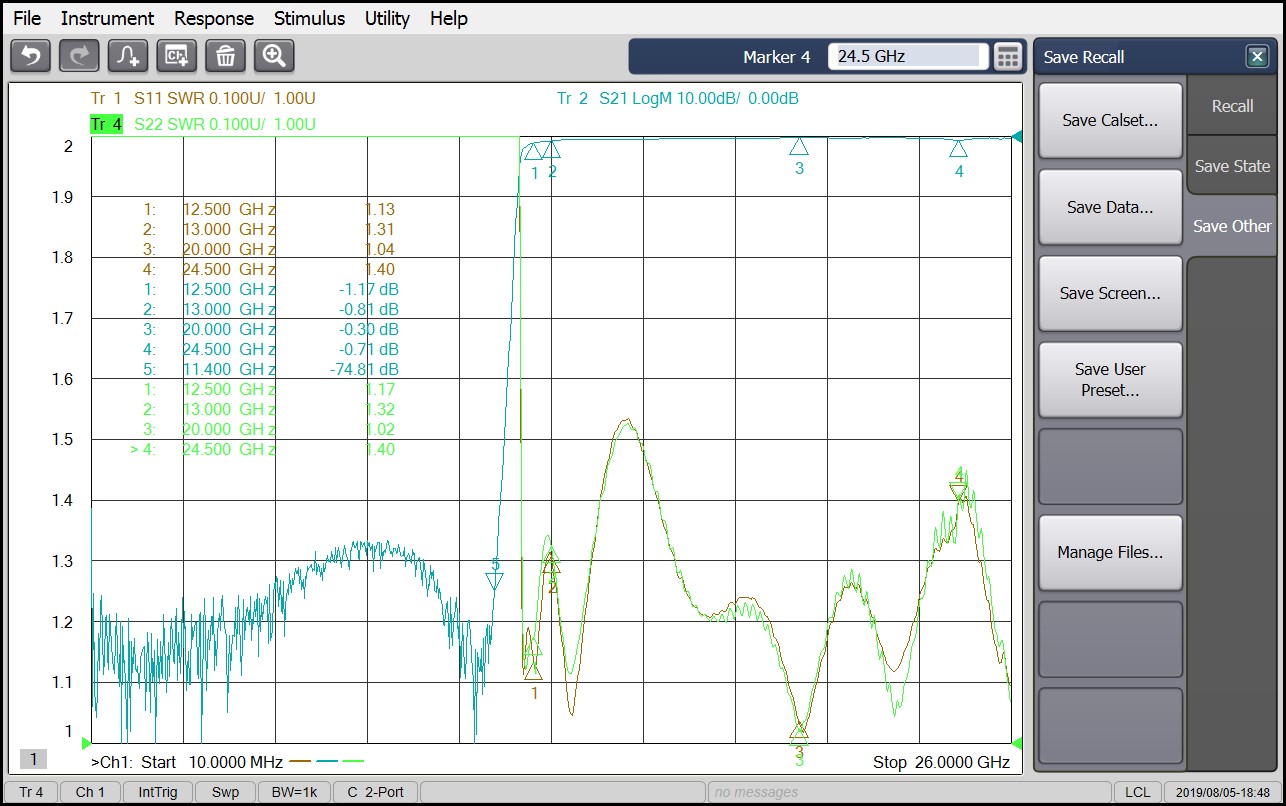

Plot

12.5 GHz to 24.5 GHz Rejection ≥60 dB @ DC-11.4 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.019 kg
Min. Pass Band Frequency (GHz)

12.5

Max. Pass Band Frequency (GHz)

24.5

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤2.0dB @12.5 ~13GHz ≤1.0dB @ 13~24.5GHz

VSWR

≤1.5:1@12.5~20GHz ≤1.8:1@20~24.5GHz

Rejection

≥60 dB @ DC-11.4 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
