1200Mbps PCIe/USB Wi-Fi 6 Module 6252C-PUB-CG

1200Mbps USB2.0 Wi-Fi 6 Module 6252B-UUB-V1.0
2402Mbps PCIe/USB Wi-Fi 6 Module 6252M-PUC-CG
0 out of 5
( There are no reviews yet. )

Main chipset: RTL8852BE-CG
Wi-Fi standard: a/b/g/n/ac/ax
Interface (Wi-Fi/BT): PCIe/USB
Throughput: 1200Mbps
Dimension: 12.0 × 16.0 mm
Compact surface-mount module for embedded integration
1200Mbps Wi-Fi 6 module 6252C-PUB-CG supports Wi-Fi 6 connectivity for IoT, smart home and embedded designs.
This Wi-Fi 6 module is available from RFecho with datasheet and quote.

SKU: 6252C-PUB-CG Category: Wi-Fi 6 Modules
Add to Wishlist

Description

Wi-Fi 6 Module Specifications

a/b/g/n/ac/ax, 1200Mbps

6252C-PUB-CG

Property

Value

Main Chipset

RTL8852BE-CG

Wi-Fi Standard

a/b/g/n/ac/ax

Interface Wi-Fi/BT

PCIe/USB

Throughput

1200Mbps

Dimension (mm)

12.0 × 16.0

The 6252C-PUB-CG is a Wi-Fi 6 (a/b/g/n/ac/ax) module built on the RTL8852BE-CG chipset. It delivers up to 1200Mbps over a PCIe/USB host interface. The module measures 12.0 × 16.0 mm, suiting space-constrained embedded designs.

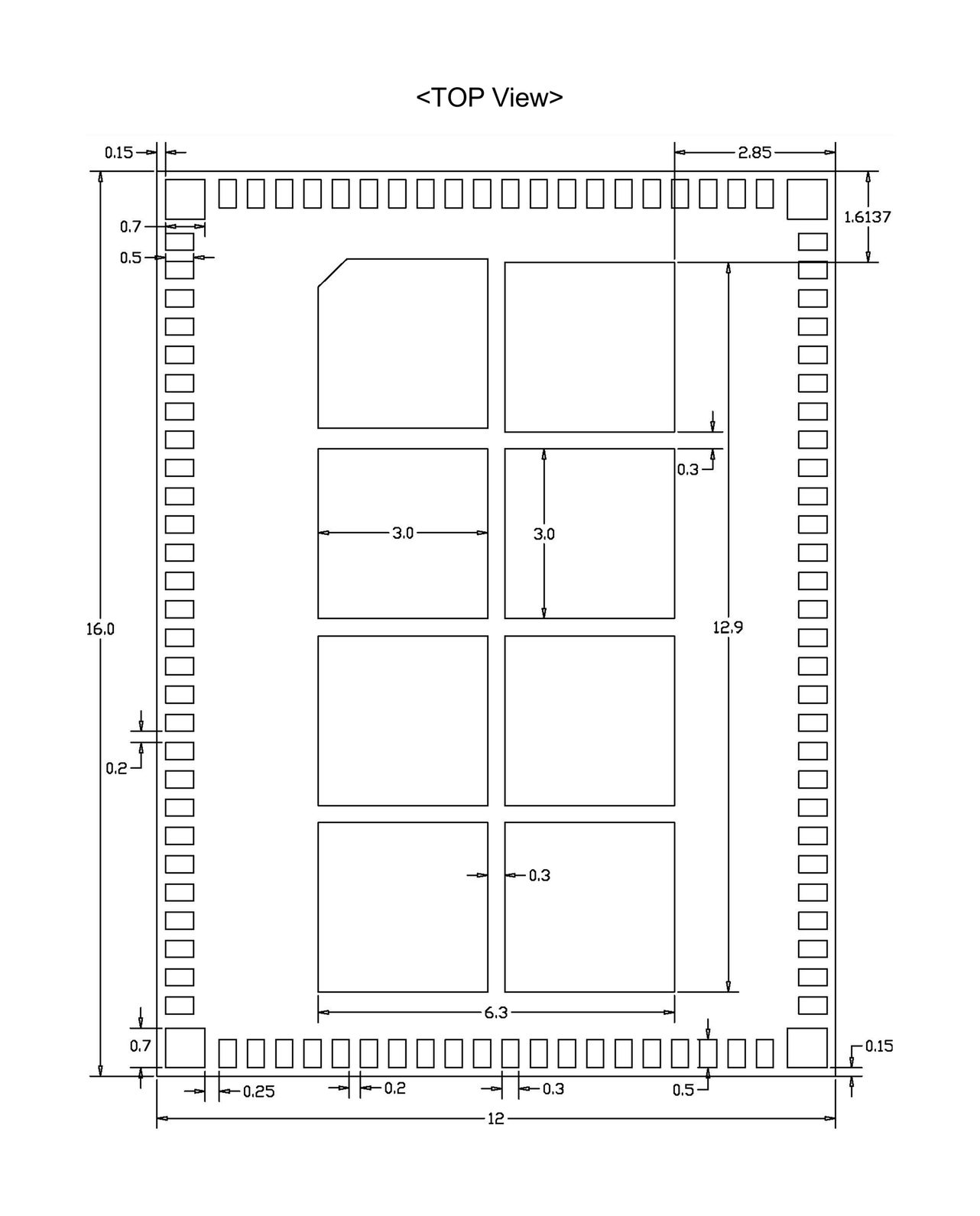

1200Mbps PCIe/USB Wi-Fi 6 Module 6252C-PUB-CG-Outline

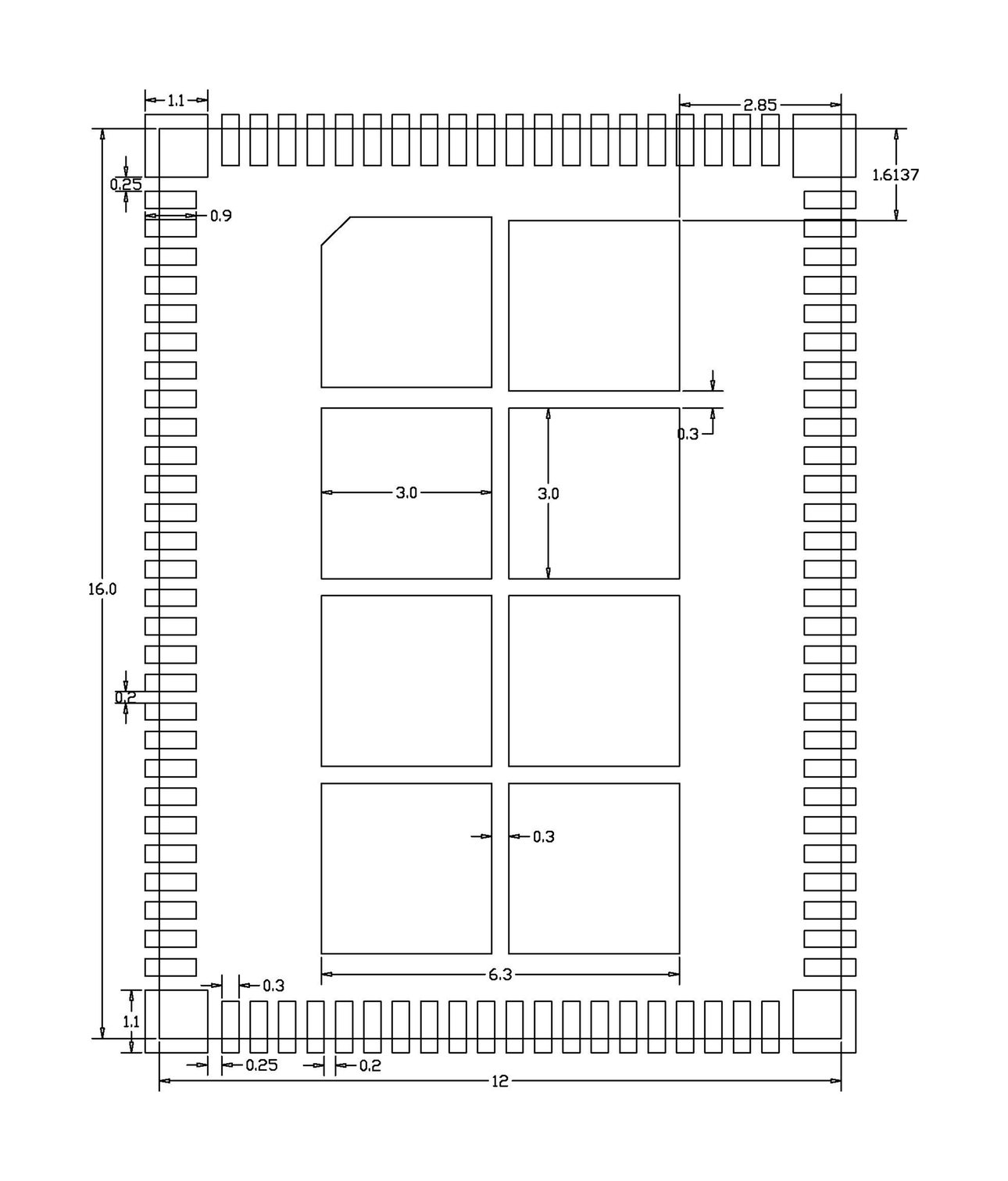

1200Mbps PCIe/USB Wi-Fi 6 Module 6252C-PUB-CG-Outline

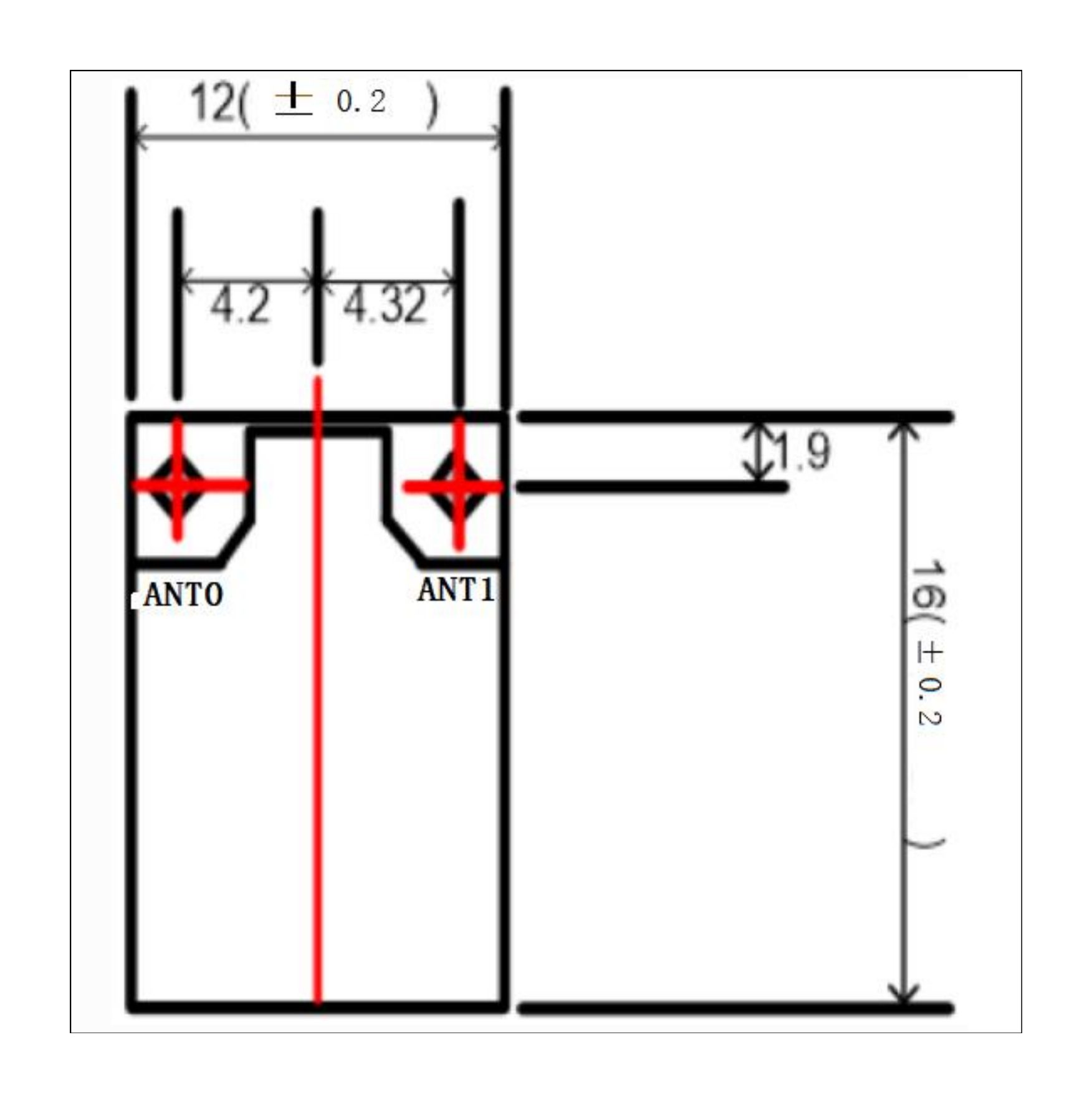

1200Mbps PCIe/USB Wi-Fi 6 Module 6252C-PUB-CG-Outline
