2402Mbps PCIe/USB Wi-Fi 6 Module 6252M-PUC-CG

1200Mbps PCIe/USB Wi-Fi 6 Module 6252C-PUB-CG
Awaiting product image 286.8Mbps USB2.0 Wi-Fi 6 Module N240E-UL
0 out of 5
( There are no reviews yet. )

Main chipset: RTL8852CE-CG
Wi-Fi standard: a/b/g/n/ac/ax
Interface (Wi-Fi/BT): PCIe/USB
Throughput: 2402Mbps
Dimension: 22.0 × 30.0 mm
Compact surface-mount module for embedded integration
2402Mbps Wi-Fi 6 module 6252M-PUC-CG supports Wi-Fi 6 connectivity for IoT, smart home and embedded designs.
This Wi-Fi 6 module is available from RFecho with datasheet and quote.

SKU: 6252M-PUC-CG Category: Wi-Fi 6 Modules
Add to Wishlist

Description

Wi-Fi 6 Module Specifications

a/b/g/n/ac/ax, 2402Mbps

6252M-PUC-CG

Property

Value

Main Chipset

RTL8852CE-CG

Wi-Fi Standard

a/b/g/n/ac/ax

Interface Wi-Fi/BT

PCIe/USB

Throughput

2402Mbps

Dimension (mm)

22.0 × 30.0

The 6252M-PUC-CG is a Wi-Fi 6 (a/b/g/n/ac/ax) module built on the RTL8852CE-CG chipset. It delivers up to 2402Mbps over a PCIe/USB host interface. The module measures 22.0 × 30.0 mm, suiting space-constrained embedded designs.

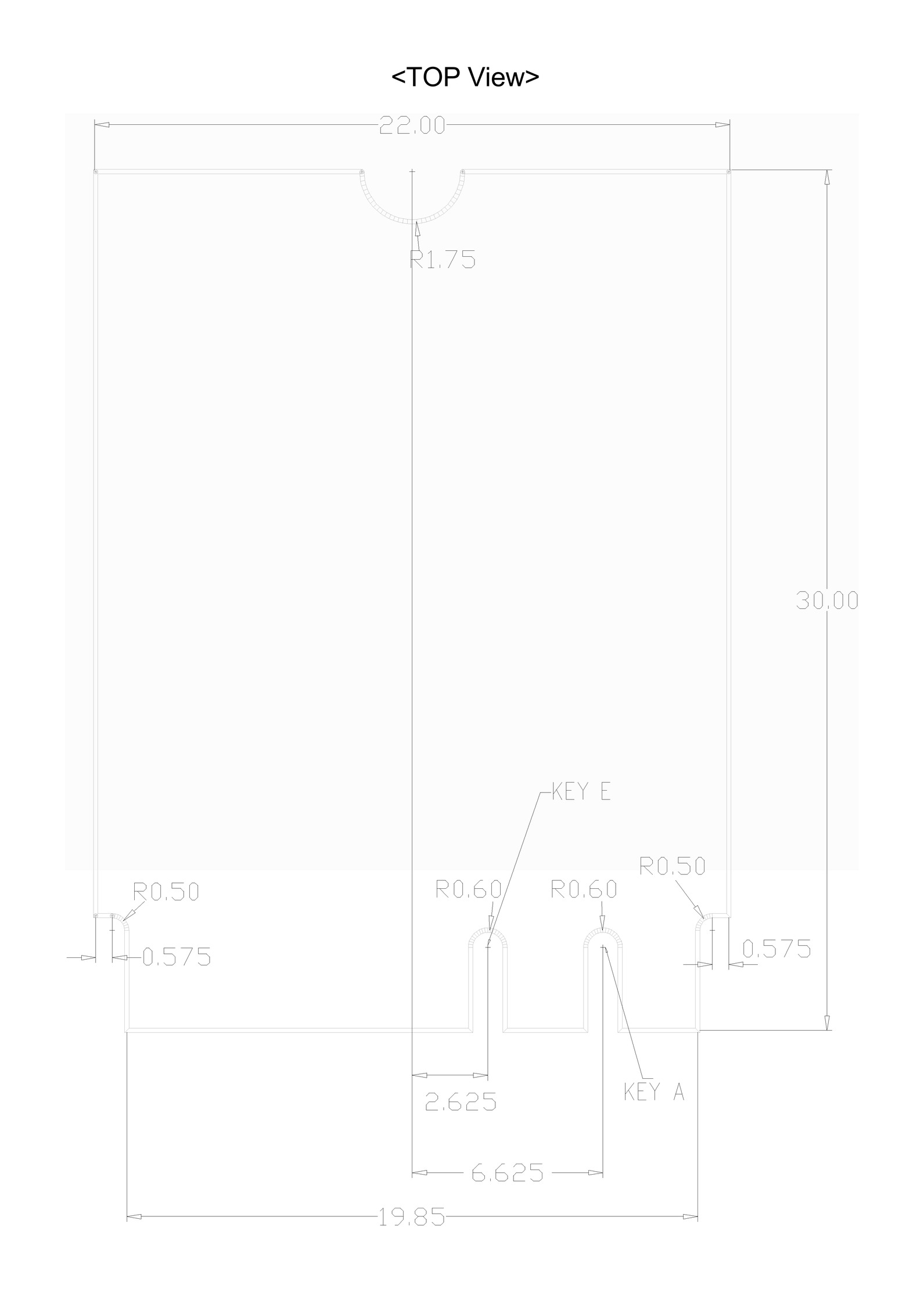

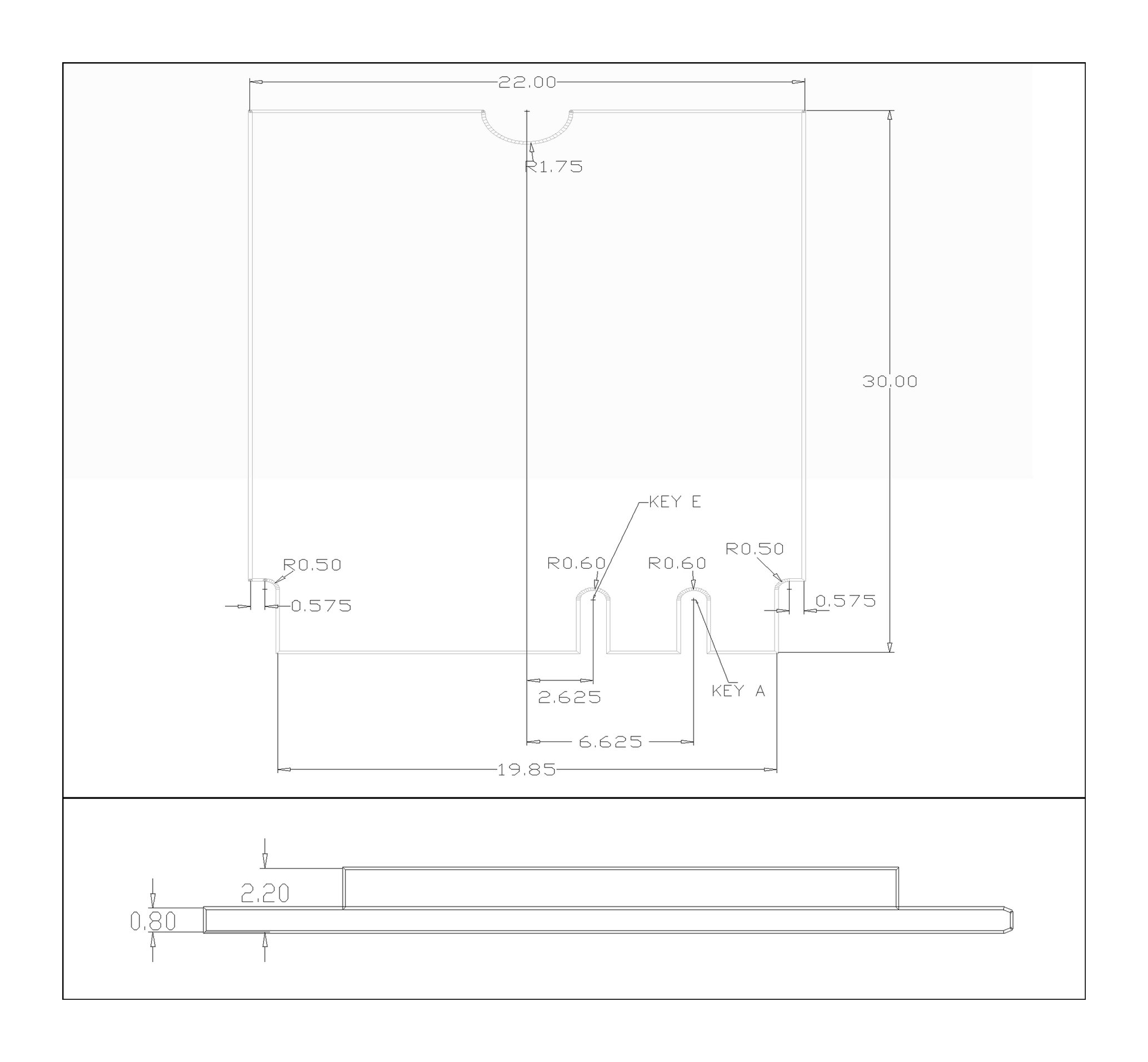

2402Mbps PCIe/USB Wi-Fi 6 Module 6252M-PUC-CG-Outline
2402Mbps PCIe/USB Wi-Fi 6 Module 6252M-PUC-CG-Outline
