15 dBi Gain, 20 GHz to 24.5 GHz, 0.396″ Diameter Circular Waveguide WR-396 Waveguide K Band Conical Horn Antennas

15 dBi Gain, 20 GHz to 24.5 GHz, 0.396″ Diameter Circular Waveguide WR-396 Waveguide K Band Conical Horn Antennas

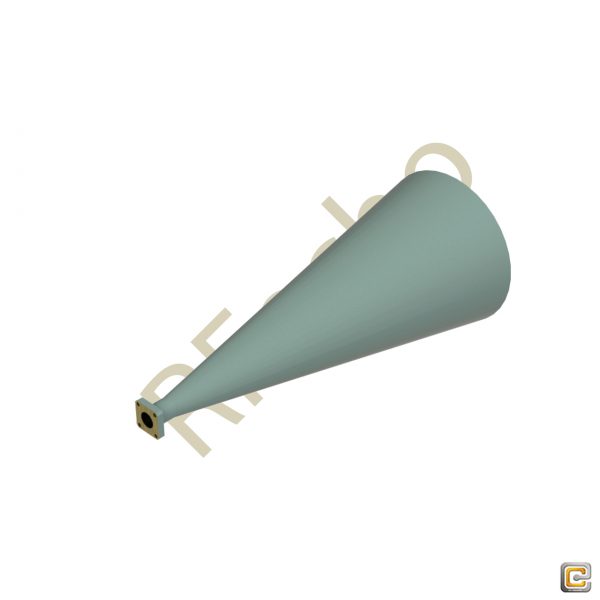

Model OCN-396-15 is a WR-396 Circular Waveguide K Band conical horn antenna that operates from 20 GHz to 24.5 GHz. The antenna offers 15 dB nominal gain and a typical half-power beamwidth of 30 degrees on the E-plane and 36 degrees on the H-plane.

The horn also offers typical side lobes of 16 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.396 diameter circular waveguide with UG-595/U-M flange.

Description

Model OCN-396-15 is a WR-396 Circular Waveguide K Band conical horn antenna that operates from 20 GHz to 24.5 GHz. The antenna offers 15 dB nominal gain and a typical half-power beamwidth of 30 degrees on the E-plane and 36 degrees on the H-plane.

The horn also offers typical side lobes of 16 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.396 diameter circular waveguide with UG-595/U-M flange.

SPEC

WR-396 Circular Waveguide K Band Conical Horn Antennas

15 dBi Gain, 20 GHz to 24.5 GHz, 0.396″ Diameter

OCN-396-15

Property

Value

Min. Frequency (GHz)

20

Max. Frequency (GHz)

24.5

Gain(dBi)

15

3 dB Beamwidth, E-plane (?)

30

3 dB Beamwidth, H-plane (?)

36

Side Lobes, E-Plane (dB)

16

Side Lobes, H-Plane (dB)

28

Return Loss (dB)

23

Waveguide

WR-396

Band Type

K Band

Flange

UG-595/U-M flange.

Diameter (Inch)

0.396

VSWR

NA

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear and Circular Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

PDF

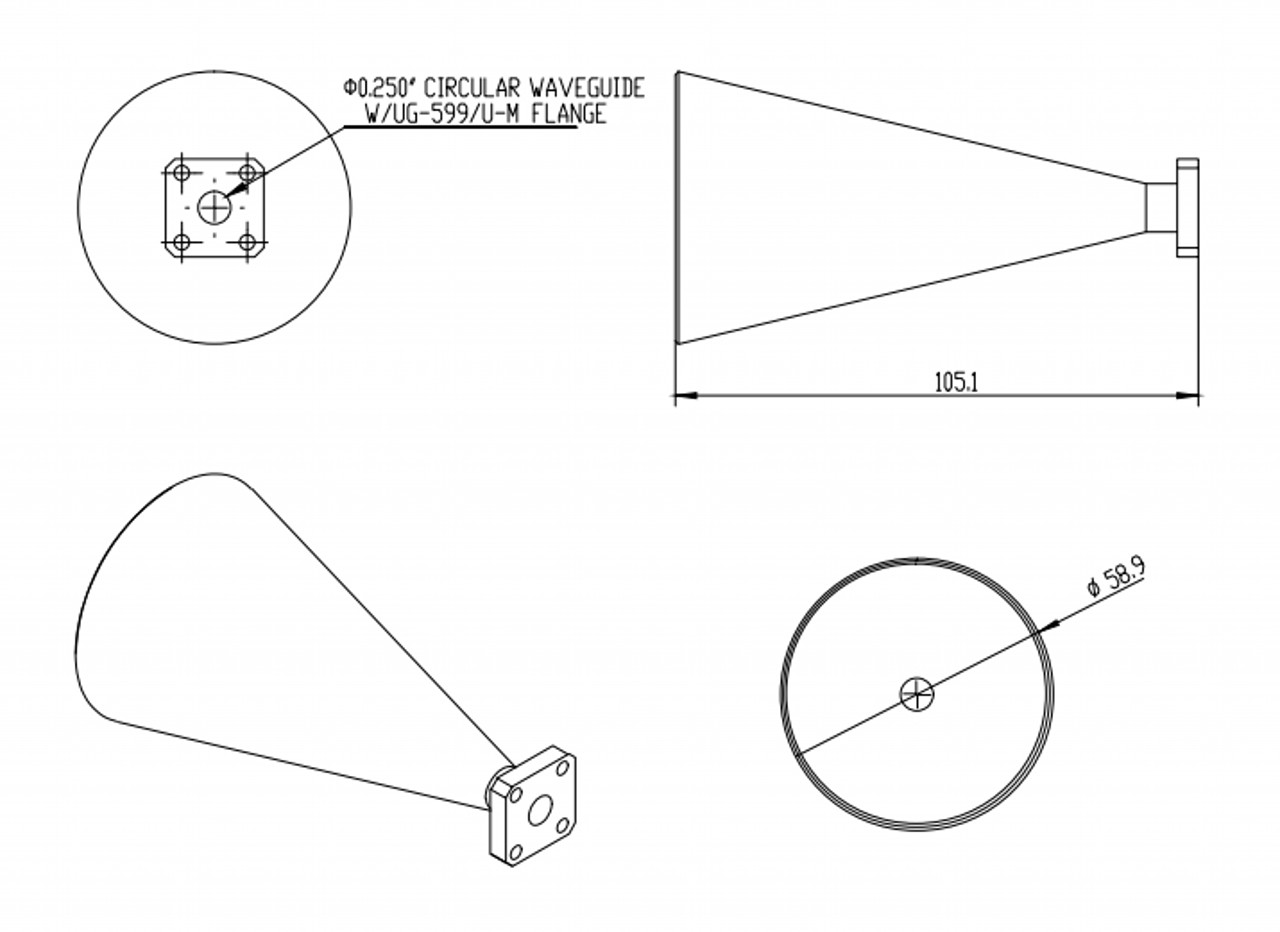

Outline

WR-396 - Circular Waveguide - K Band - Conical Horn Antenna

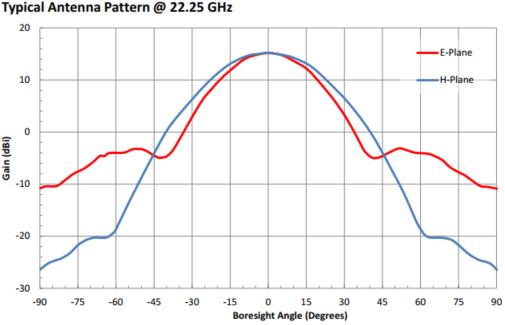

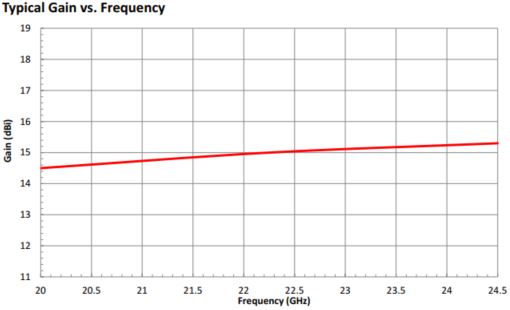

Plot

WR-396 Circular Waveguide K Band Conical Horn Antenna. Nominal Gain: 15dBi. Frequency Range: 24GHz to 24.5GHz. Diameter: 0.396 - 1WR-396 Circular Waveguide K Band Conical Horn Antenna. Nominal Gain: 15dBi. Frequency Range: 24GHz to 24.5GHz. Diameter: 0.396 - 2

Additional information

Min. Frequency (GHz)

20

Max. Frequency (GHz)

24.5

Gain (dBi)

15

Waveguide

VSWR

NA

Side Lobes, H-Plane (dB)

Side Lobes, E-Plane (dB)

Flange

Band Type

Return Loss (dB)

Diameter (inch)
