Model OCN-219-15 is a U Band conical horn antenna that operates from 38.5 GHz to 43 GHz. The antenna offers 15 dB nominal gain and a typical half power beamwidth of 30 degrees on the E-plane and 36 degrees on the H-plane.

The horn also offers typical side lobes of -16 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.219 diameter circular waveguide with UG-383/U-M flange.

Description

SPEC

Conical Horn Antennas

15 dBi Gain, 38.5 GHz to 43 GHz, 0.219″ Diameter Circular Waveguide WR-219 Waveguide U Band Conical Horn Antennas

OCN-219-15

Model OCN-219-15 is a U Band conical horn antenna that operates from 38.5 GHz to 43 GHz. The antenna offers 15 dB nominal gain and a typical half power beamwidth of 30 degrees on the E-plane and 36 degrees on the H-plane.

The horn also offers typical side lobes of -16 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.219 diameter circular waveguide with UG-383/U-M flange.

Property

Value

Min. Frequency (GHz)

38.5

Max. Frequency (GHz)

43

Gain(dBi)

15

3 dB Beamwidth, E-plane (?)

30

3 dB Beamwidth, H-plane (?)

36

Side Lobes, E-Plane (dB)

-16

Side Lobes, H-Plane (dB)

-28

Return Loss (dB)

NA

Waveguide

WR-219

Band Type

U Band

Flange

UG-383/U-M flange

Diameter (Inch)

0.219

VSWR

1.15:1

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear and Circular Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

PDF

Outline

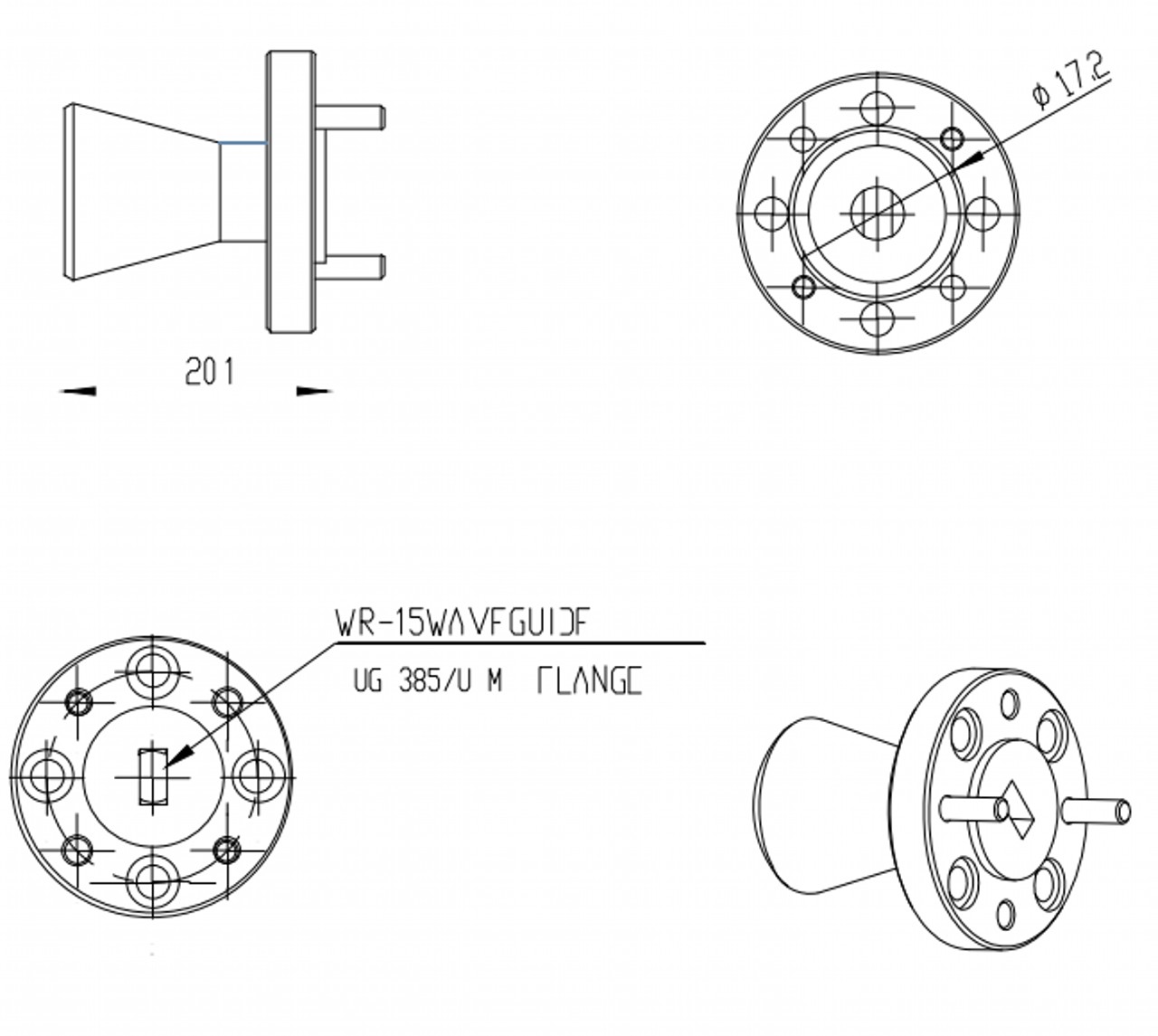

OCN 219 15 outline 15 dBi Gain, 38.5 GHz to 43 GHz, 0.219" Diameter Circular Waveguide WR-219 Waveguide U Band Conical Horn Antennas

Plot

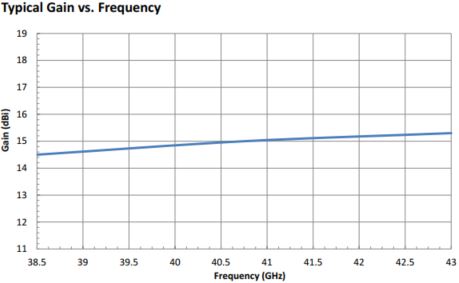

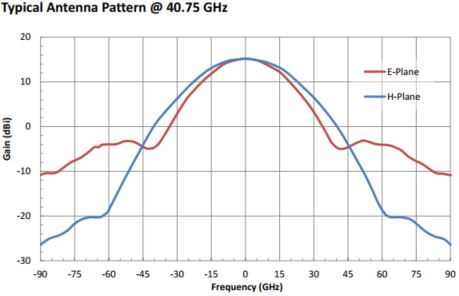

OCN 219 15 plot1 15 dBi Gain, 38.5 GHz to 43 GHz, 0.219" Diameter Circular Waveguide WR-219 Waveguide U Band Conical Horn AntennasOCN 219 15 plot2 15 dBi Gain, 38.5 GHz to 43 GHz, 0.219" Diameter Circular Waveguide WR-219 Waveguide U Band Conical Horn Antennas
