15 dBi Gain, 58 GHz to 68 GHz, 0.141″ Diameter Circular Waveguide WR-141 Waveguide V Band Conical Horn Antennas

15 dBi Gain, 58 GHz to 68 GHz, 0.141″ Diameter Circular Waveguide WR-141 Waveguide V Band Conical Horn Antennas

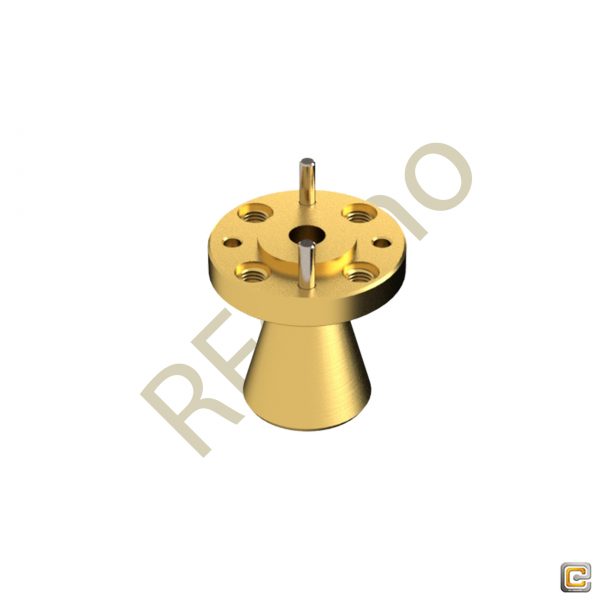

Model OCN-141-15 is a WR-141 Circular Waveguide V-band conical horn antenna that operates from 58 GHz to 68 GHz. The antenna offers 15 dB nominal gain, 30 degrees half-power beamwidth, and 15 dB typical sidelobe level at the center frequency.

The conical horn antenna can support linear and circular polarization. The input of this antenna is a 0.141″ diameter circular waveguide with UG-385/U flange.

Description

Model OCN-141-15 is a WR-141 Circular Waveguide V-band conical horn antenna that operates from 58 GHz to 68 GHz. The antenna offers 15 dB nominal gain, 30 degrees half-power beamwidth, and 15 dB typical sidelobe level at the center frequency.

The conical horn antenna can support linear and circular polarization. The input of this antenna is a 0.141″ diameter circular waveguide with UG-385/U flange.

SPEC

WR-141 Circular Waveguide V Band Conical Horn Antennas

15 dBi Gain, 58 GHz to 68 GHz, 0.141″ Diameter

OCN-141-15



Property

Value

Min. Frequency (GHz)

58

Max. Frequency (GHz)

68

Gain(dBi)

15

3 dB Beamwidth, E-plane (?)

30

3 dB Beamwidth, H-plane (?)

36

Side Lobes, E-Plane (dB)

-16

Side Lobes, H-plane (dB)

-5

Return Loss (dB)

23

Waveguide

WR-141

Band Type

V Band

Flange

UG-385/U-M flange

Diameter (Inch)

0.141

VSWR

NA

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear and Circular Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

PDF

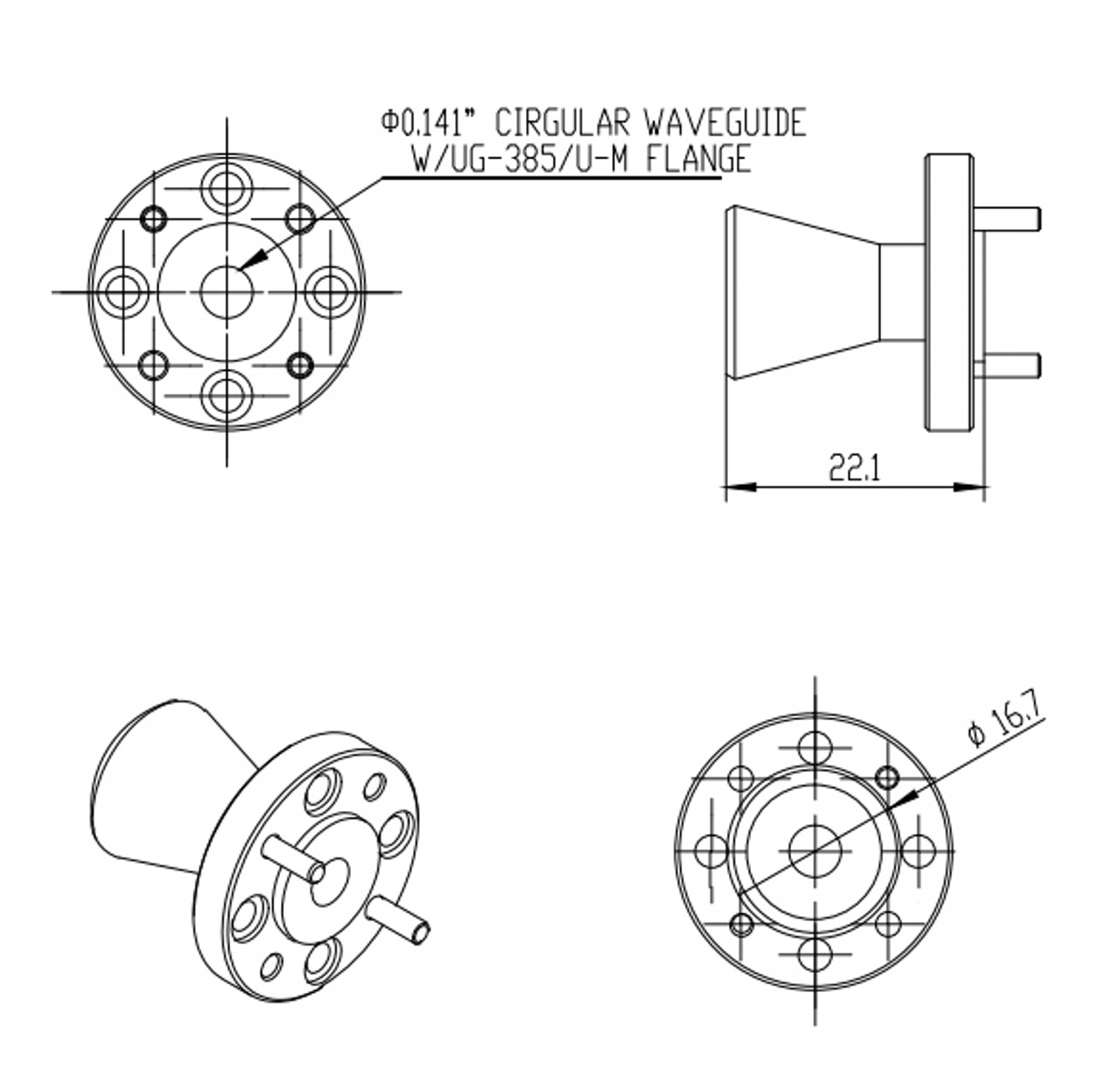

Outline

WR-141 - Circular Waveguide - V Band - Conical Horn Antenna - 15dBi

Plot

WR-141 Circular Waveguide V Band Conical Horn Antenna. Nominal Gain: 15dBi. Frequency Range: 58GHz to 68GHz. Diameter: 0.141" - 1WR-141 Circular Waveguide V Band Conical Horn Antenna. Nominal Gain: 15dBi. Frequency Range: 58GHz to 68GHz. Diameter: 0.141" - 2

Additional information

Min. Frequency (GHz)

58

Max. Frequency (GHz)

68

Gain (dBi)

15

Waveguide

VSWR

NA

Side Lobes, H-Plane (dB)

Side Lobes, E-Plane (dB)

Flange

Band Type

Return Loss (dB)

Diameter (inch)
