Main chipset: RTL8723DS-CG
Wi-Fi standard: b/g/n
Interface (Wi-Fi/BT): SDIO2.0/Uart
Throughput: 150Mbps
Dimension: 12.0 × 12.0 mm
Compact surface-mount module for embedded integration
150Mbps Wi-Fi 4 module 6223A-SRD supports Wi-Fi 4 connectivity for IoT, smart home and embedded designs.
This Wi-Fi 4 module is available from RFecho with datasheet and quote.

SKU: 6223A-SRD Category: Wi-Fi 4 Modules
Add to Wishlist

Description

Wi-Fi 4 Module Specifications

b/g/n, 150Mbps

6223A-SRD

Property

Value

Main Chipset

RTL8723DS-CG

Wi-Fi Standard

b/g/n

Interface Wi-Fi/BT

SDIO2.0/Uart

Throughput

150Mbps

Dimension (mm)

12.0 × 12.0

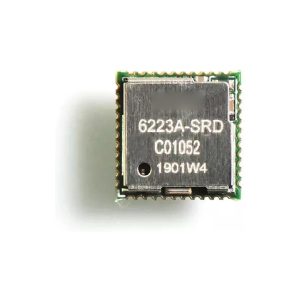

The 6223A-SRD is a Wi-Fi 4 (b/g/n) module built on the RTL8723DS-CG chipset. It delivers up to 150Mbps over a SDIO2.0/Uart host interface. The module measures 12.0 × 12.0 mm, suiting space-constrained embedded designs.

150Mbps SDIO2.0/Uart Wi-Fi 4 Module 6223A-SRD-Outline

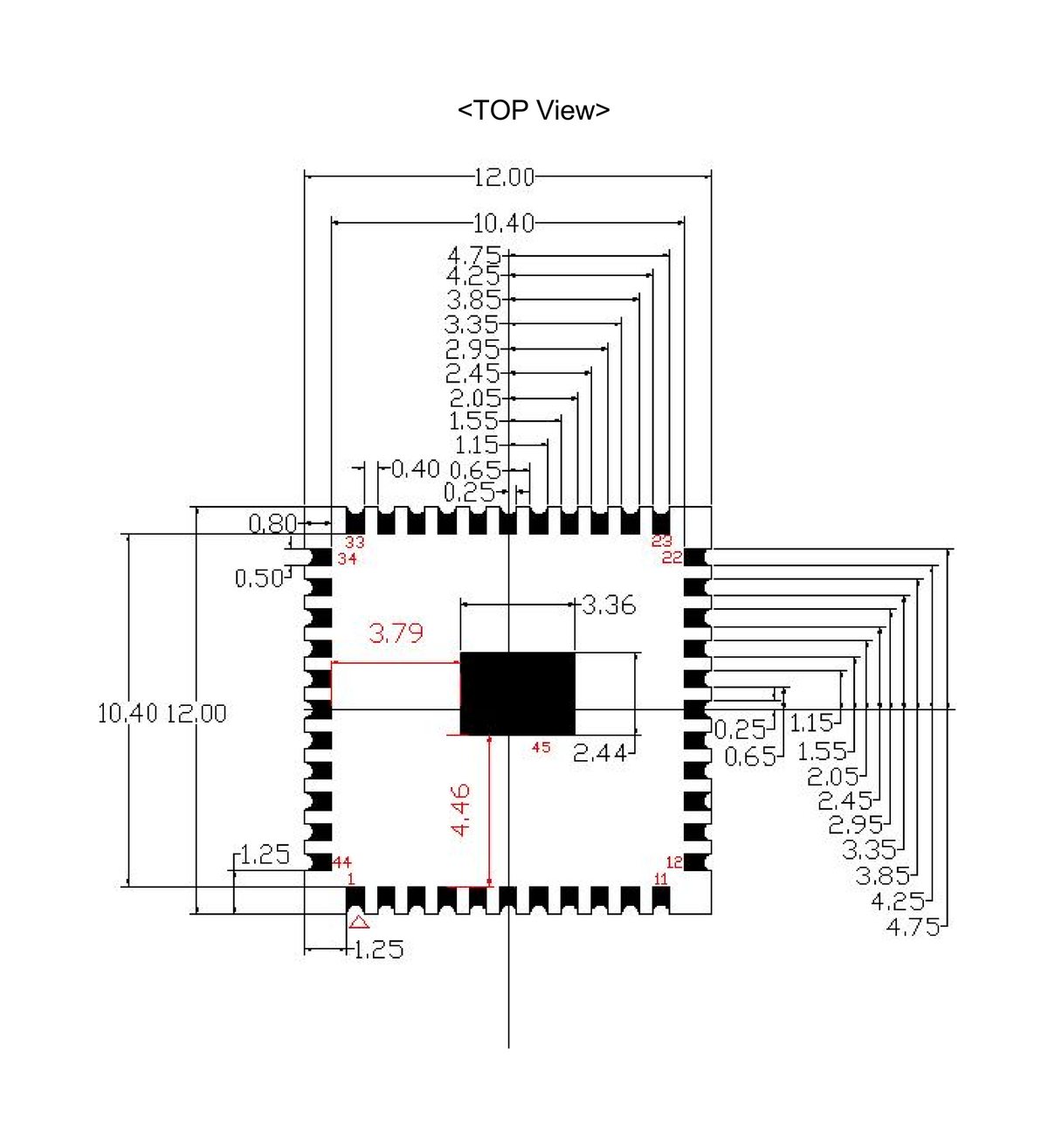

150Mbps SDIO2.0/Uart Wi-Fi 4 Module 6223A-SRD-Outline

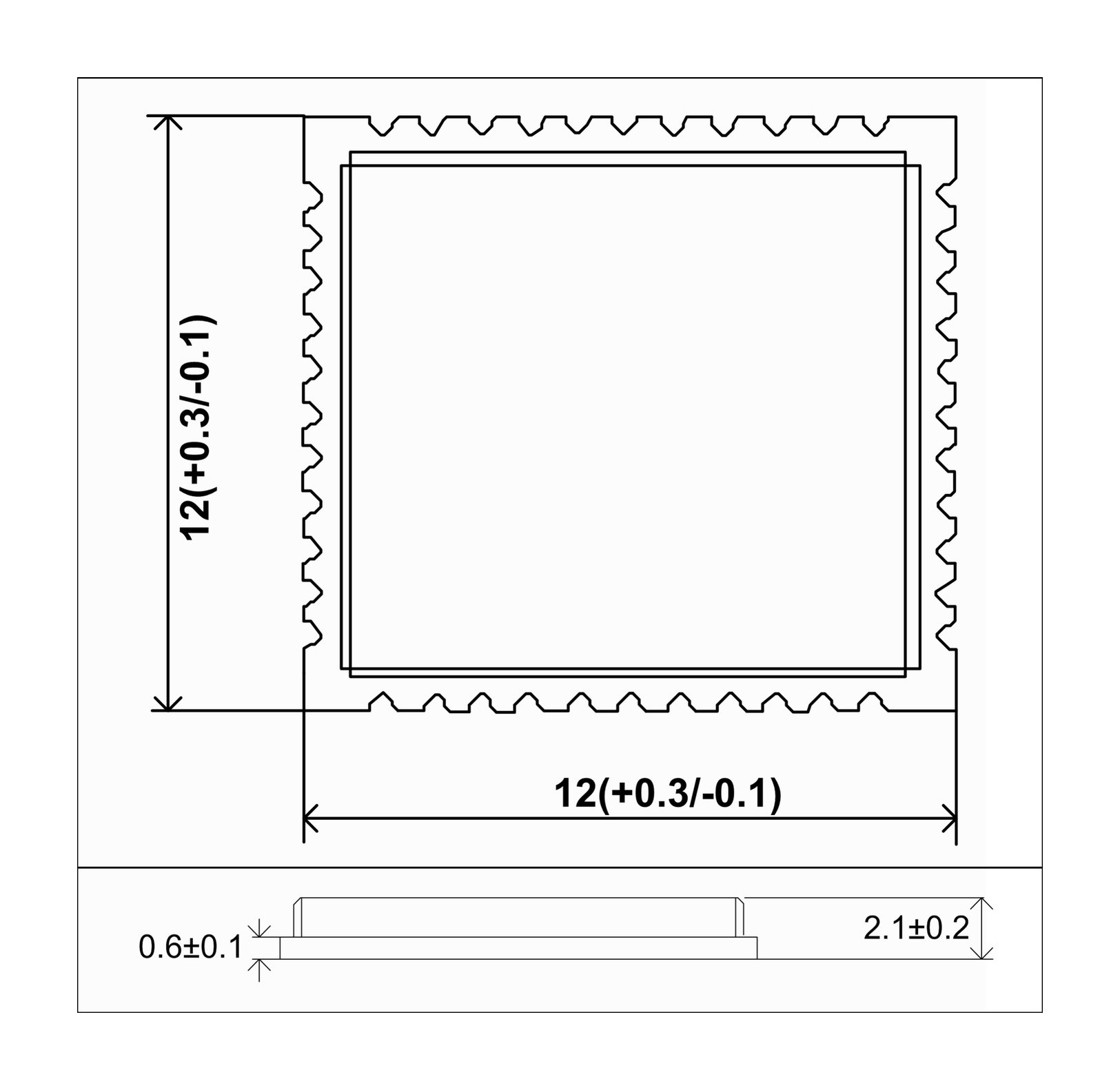

150Mbps SDIO2.0/Uart Wi-Fi 4 Module 6223A-SRD-Outline
