Main chipset: RTL8723DU-CG
Wi-Fi standard: b/g/n
Interface (Wi-Fi/BT): USB2.0/PCM
Throughput: 150Mbps
Dimension: 12.2 × 13.0 mm
Compact surface-mount module for embedded integration
150Mbps Wi-Fi 4 module 6223E-UUD supports Wi-Fi 4 connectivity for IoT, smart home and embedded designs.
This Wi-Fi 4 module is available from RFecho with datasheet and quote.

SKU: 6223E-UUD Category: Wi-Fi 4 Modules
Add to Wishlist

Description

Wi-Fi 4 Module Specifications

b/g/n, 150Mbps

6223E-UUD

Property

Value

Main Chipset

RTL8723DU-CG

Wi-Fi Standard

b/g/n

Interface Wi-Fi/BT

USB2.0/PCM

Throughput

150Mbps

Dimension (mm)

12.2 × 13.0

The 6223E-UUD is a Wi-Fi 4 (b/g/n) module built on the RTL8723DU-CG chipset. It delivers up to 150Mbps over a USB2.0/PCM host interface. The module measures 12.2 × 13.0 mm, suiting space-constrained embedded designs.

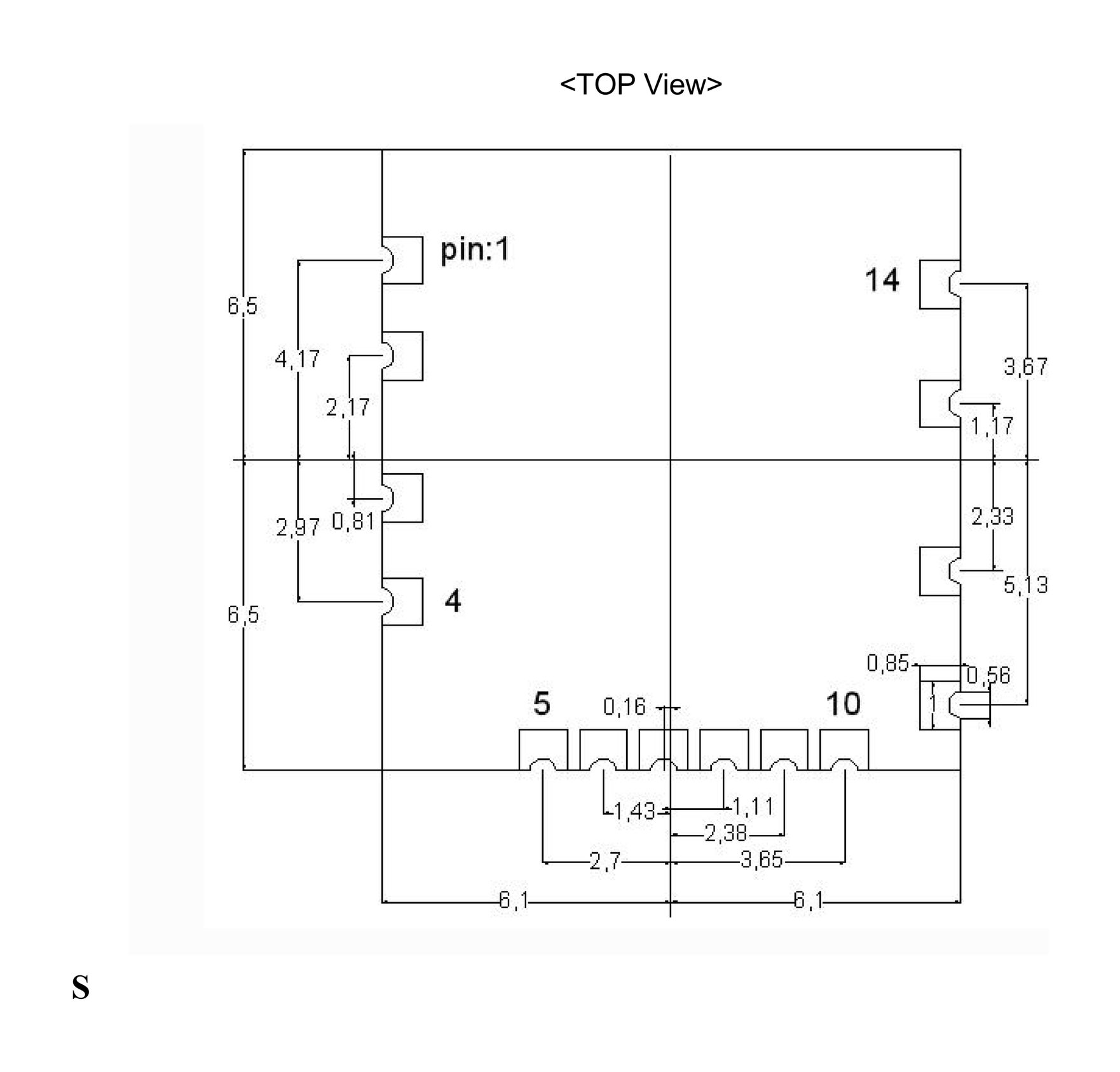

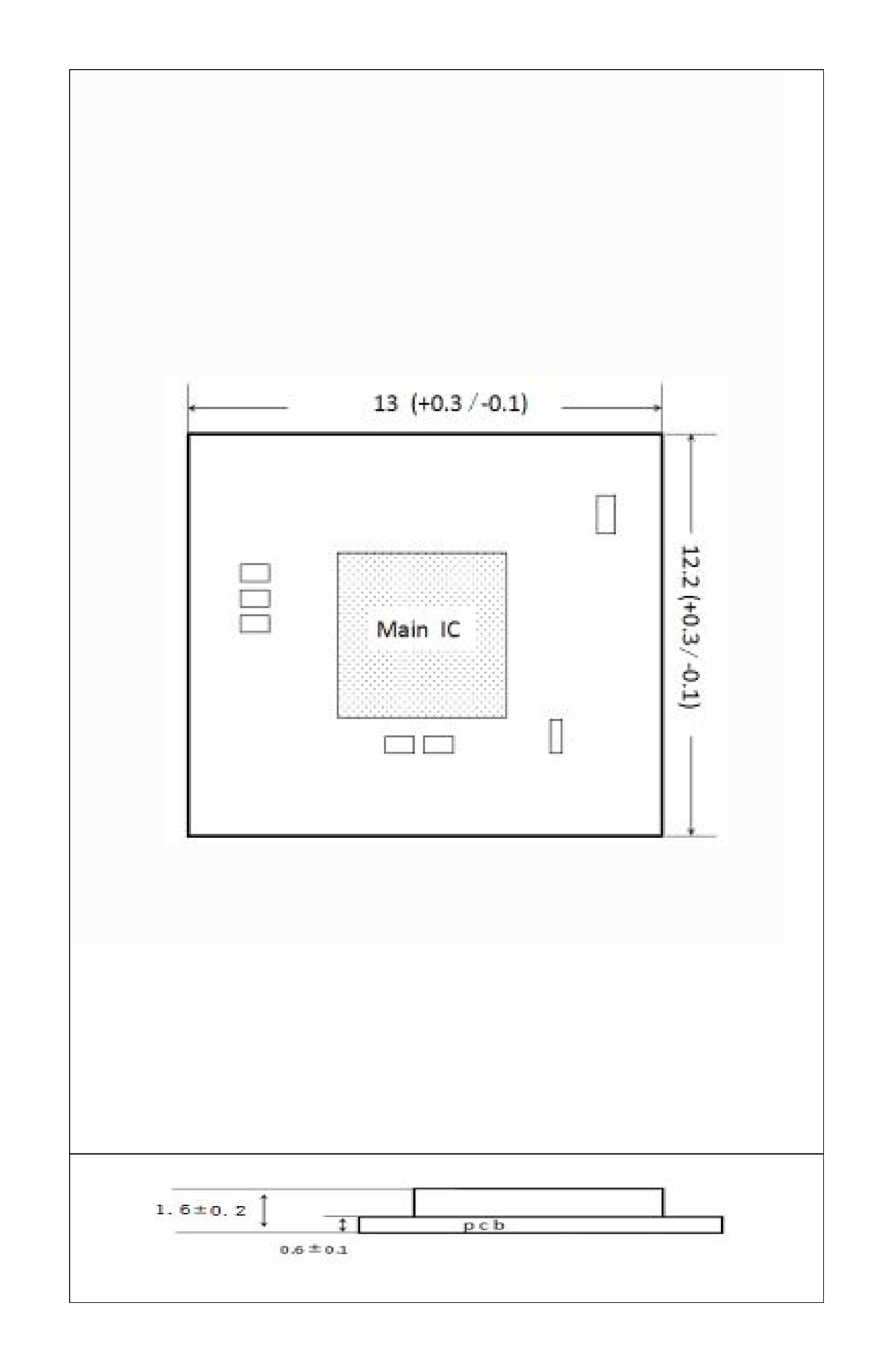

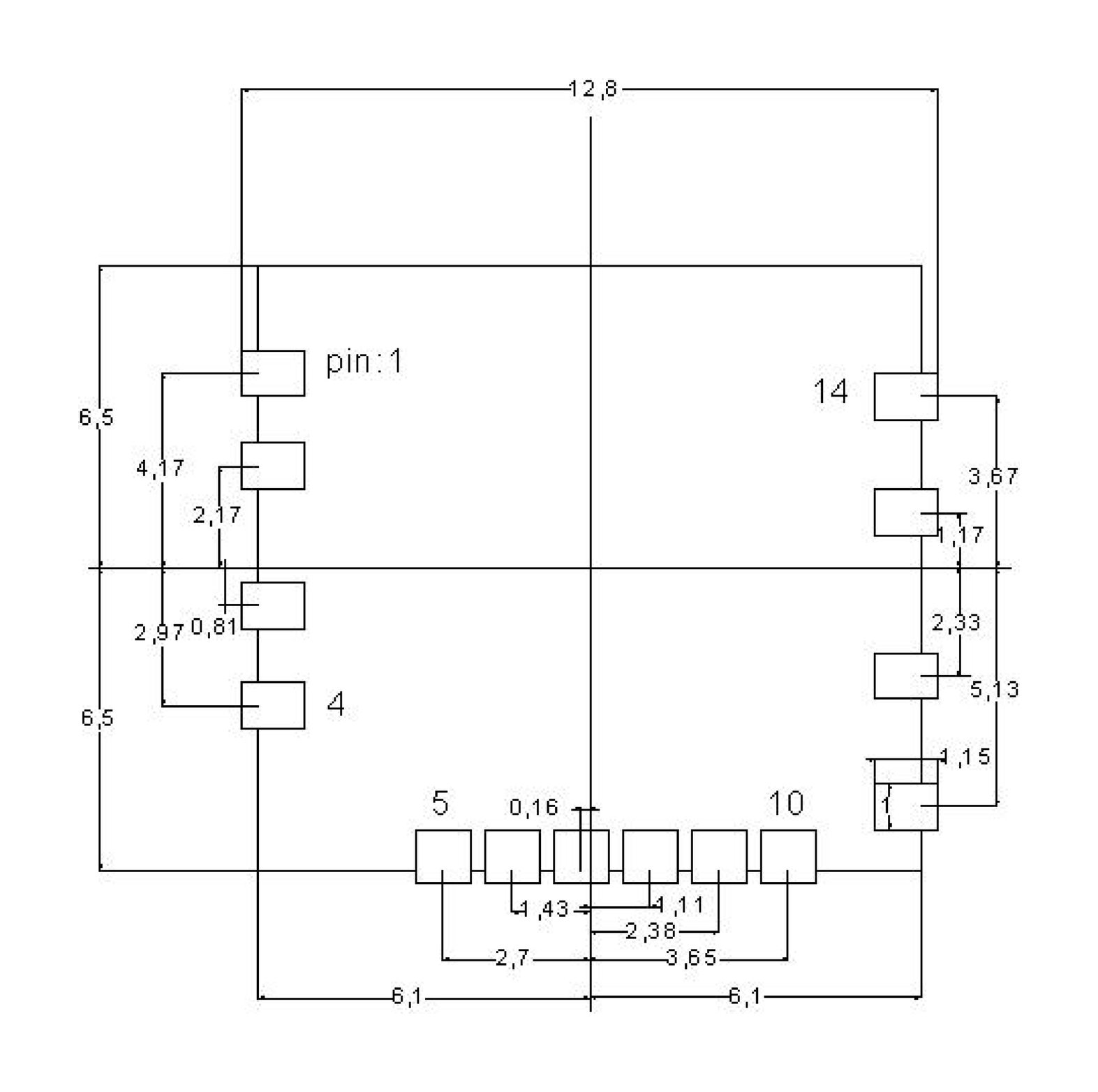

150Mbps USB2.0/PCM Wi-Fi 4 Module 6223E-UUD-Outline
150Mbps USB2.0/PCM Wi-Fi 4 Module 6223E-UUD-Outline
150Mbps USB2.0/PCM Wi-Fi 4 Module 6223E-UUD-Outline
