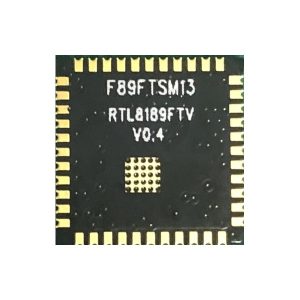

150Mbps SDIO2.0 Wi-Fi 4 Module F89FTSM13-W3
Main chipset: RTL8189FTV-VC
Wi-Fi standard: b/g/n
Interface (Wi-Fi/BT): SDIO2.0
Throughput: 150Mbps
Dimension: 12.0 × 12.0 mm
Compact surface-mount module for embedded integration
150Mbps Wi-Fi 4 module F89FTSM13-W3 supports Wi-Fi 4 connectivity for IoT, smart home and embedded designs.
This Wi-Fi 4 module is available from RFecho with datasheet and quote.
- Description

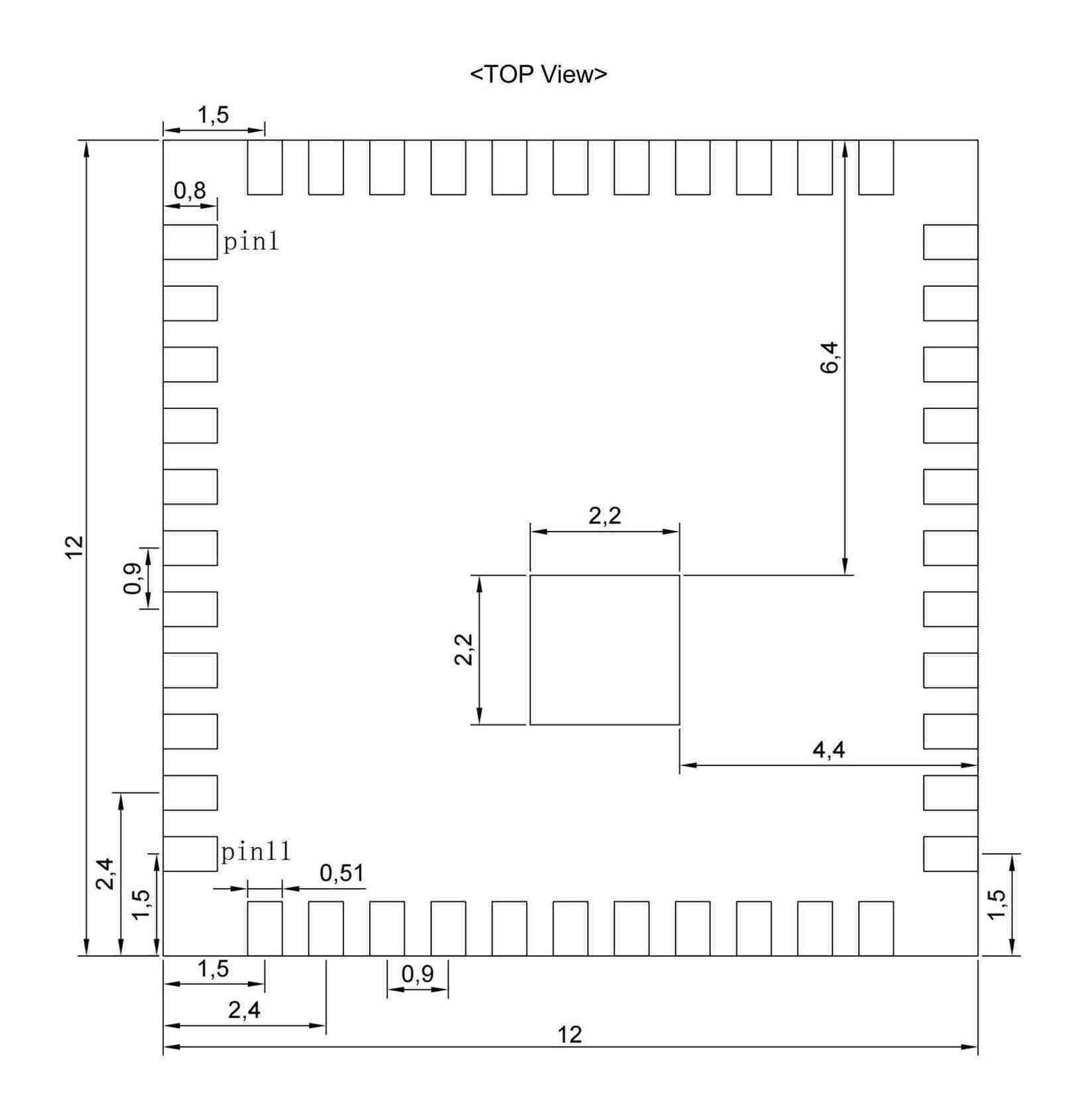

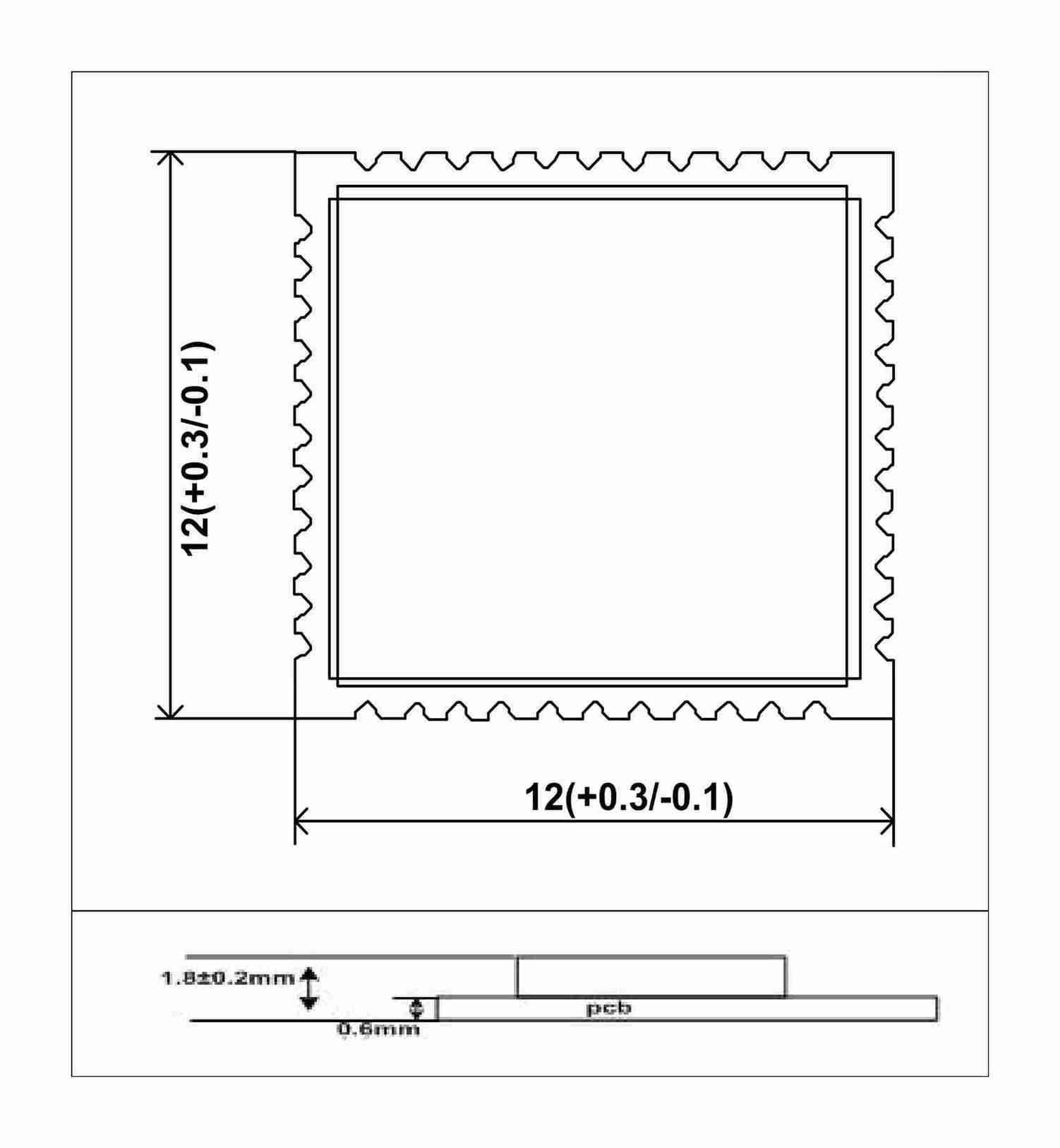

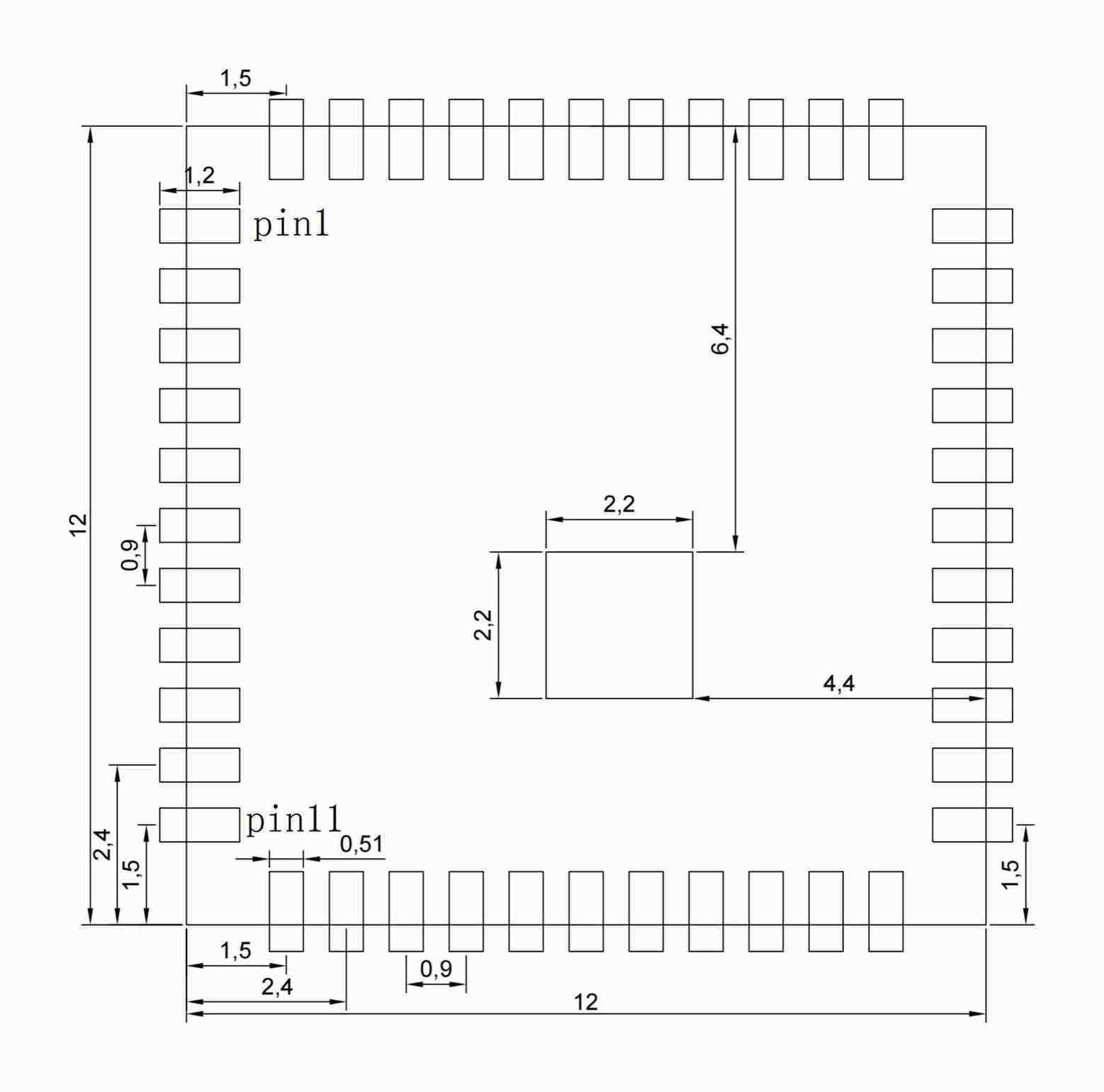

- Outline
- Reviews (0)
Description
Wi-Fi 4 Module Specifications | |
| b/g/n, 150Mbps | |
| F89FTSM13-W3 | |
Property | Value |
| Main Chipset | RTL8189FTV-VC |
| Wi-Fi Standard | b/g/n |
| Interface Wi-Fi/BT | SDIO2.0 |
| Throughput | 150Mbps |
| Dimension (mm) | 12.0 × 12.0 |
The F89FTSM13-W3 is a Wi-Fi 4 (b/g/n) module built on the RTL8189FTV-VC chipset. It delivers up to 150Mbps over a SDIO2.0 host interface. The module measures 12.0 × 12.0 mm, suiting space-constrained embedded designs.
