72.2Mbps SDIO2.0 Wi-Fi 4 Module F89FTSM13

150Mbps USB2.0 Wi-Fi 4 Module 6188S-UF
150Mbps SDIO2.0 Wi-Fi 4 Module F89FTSM13-W3
0 out of 5
( There are no reviews yet. )

Main chipset: RTL8189FTV-VQ1
Wi-Fi standard: b/g/n
Interface (Wi-Fi/BT): SDIO2.0
Throughput: 72.2Mbps
Dimension: 12.0 × 12.0 mm
Compact surface-mount module for embedded integration
72.2Mbps Wi-Fi 4 module F89FTSM13 supports Wi-Fi 4 connectivity for IoT, smart home and embedded designs.
This Wi-Fi 4 module is available from RFecho with datasheet and quote.

SKU: F89FTSM13 Category: Wi-Fi 4 Modules
Add to Wishlist

Description

Wi-Fi 4 Module Specifications

b/g/n, 72.2Mbps

F89FTSM13

Property

Value

Main Chipset

RTL8189FTV-VQ1

Wi-Fi Standard

b/g/n

Interface Wi-Fi/BT

SDIO2.0

Throughput

72.2Mbps

Dimension (mm)

12.0 × 12.0

The F89FTSM13 is a Wi-Fi 4 (b/g/n) module built on the RTL8189FTV-VQ1 chipset. It delivers up to 72.2Mbps over a SDIO2.0 host interface. The module measures 12.0 × 12.0 mm, suiting space-constrained embedded designs.

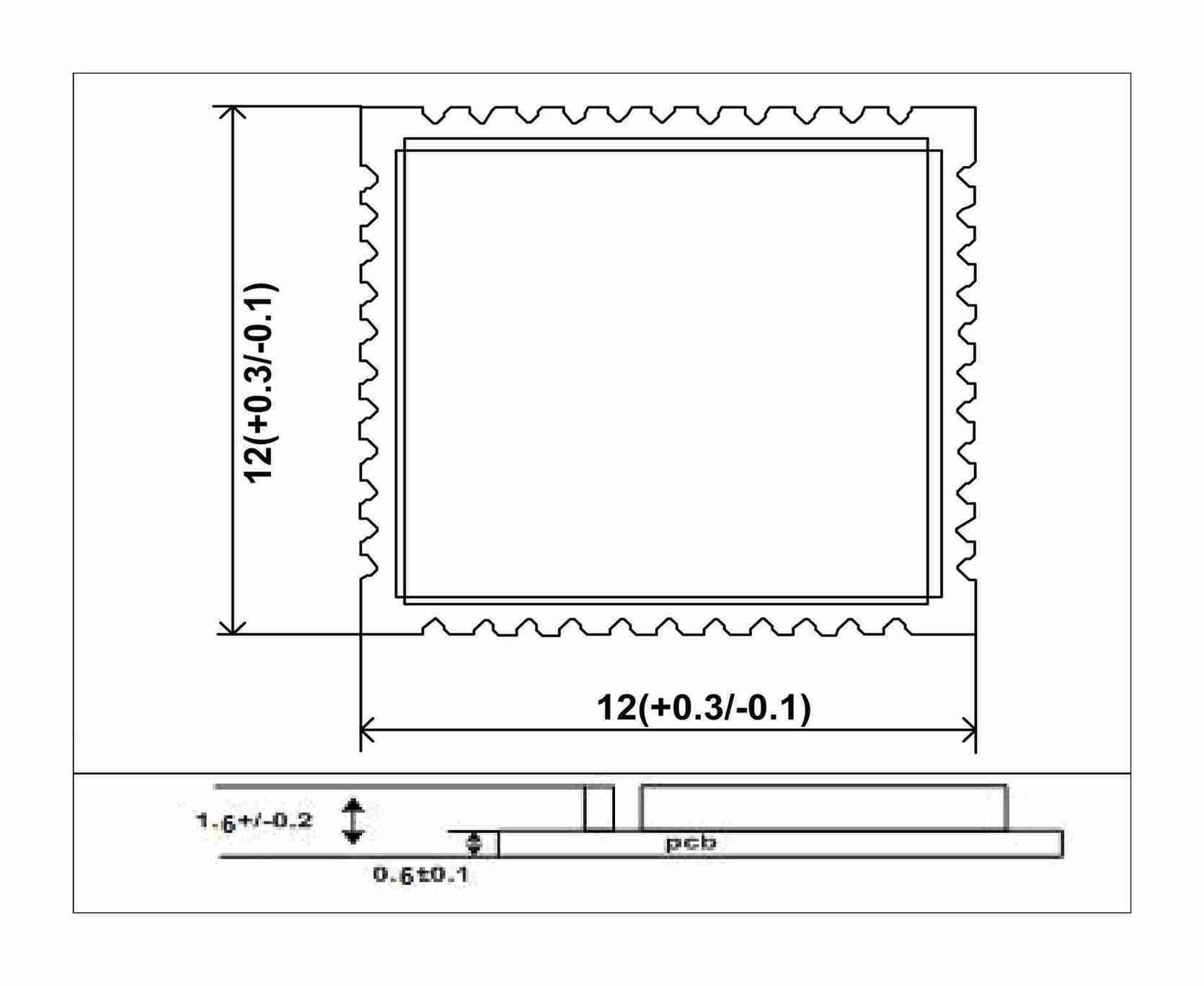

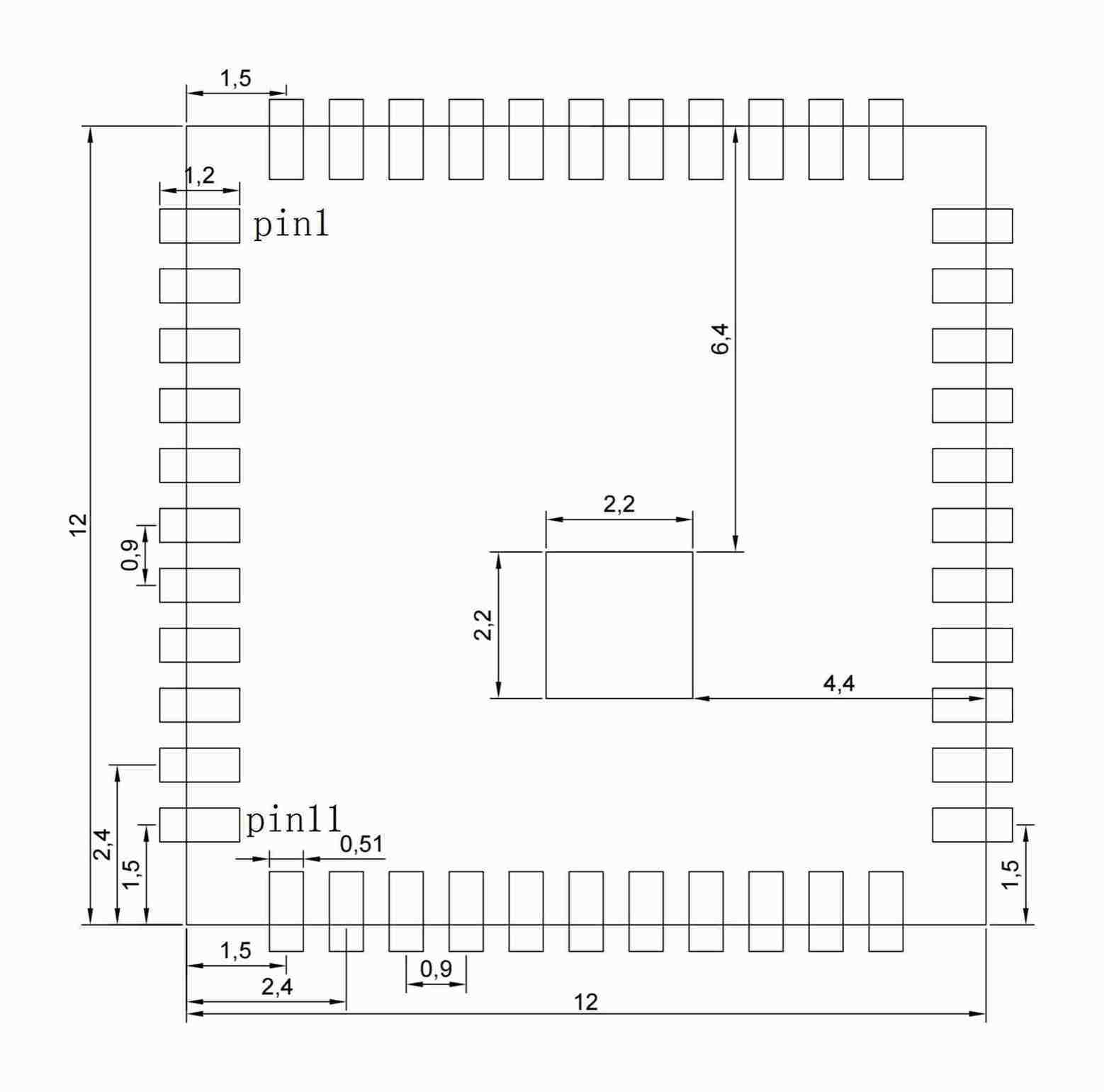

72.2Mbps SDIO2.0 Wi-Fi 4 Module F89FTSM13-Outline
72.2Mbps SDIO2.0 Wi-Fi 4 Module F89FTSM13-Outline
72.2Mbps SDIO2.0 Wi-Fi 4 Module F89FTSM13-Outline
