18GHz to 28GHz Microwave RF High Pass Filter rejection ≥ 60dB @ DC~16GHz High Pass Cavity RF Filter with SMA Female Connector

18GHz to 28GHz Microwave RF High Pass Filter model OHP: 18000-28000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This 18GHz to 28GHz Microwave RF High Pass Filter Manufactured with a passband frequency from 18GHz to 28GHz and a Cut-off frequency 18GHz. Our High Pass Cavity RF Filter provides a nominal insertion loss of ≤2.0dB @ 18GHz to 19.5GHz | ≤1.0dB @ 19.5GHz to 28GHz across its passband and a typical rejection of ≥60dB @ DC to 16GHz. Since the high end cutoff frequency of 18GHz to 28GHz Microwave RF High Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This High Pass Cavity RF Filter has Passband VSWR of ≤1.8:1 and power handling of ≤15W. 18GHz to 28GHz Microwave RF High Pass Filter is manufactured with SMA Female Connector and Net weight of 0.015Kg.
18GHz to 28GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 18GHz to 28GHz Microwave RF High Pass Filter is ready for shipping worldwide after purchase. Additional specs of this High Pass Cavity RF Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-18000-28000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Cavity Filter (OHP) – OHP-18000-28000:

  • Cut Off Frequency: 18GHz,
  • Pass Band Frequency: 18-28GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.8,
  • Rejection: ≥60 dB @ DC-16 GHz

[/vc_column_text][/vc_tab]

Empty section. Edit page to add content here.

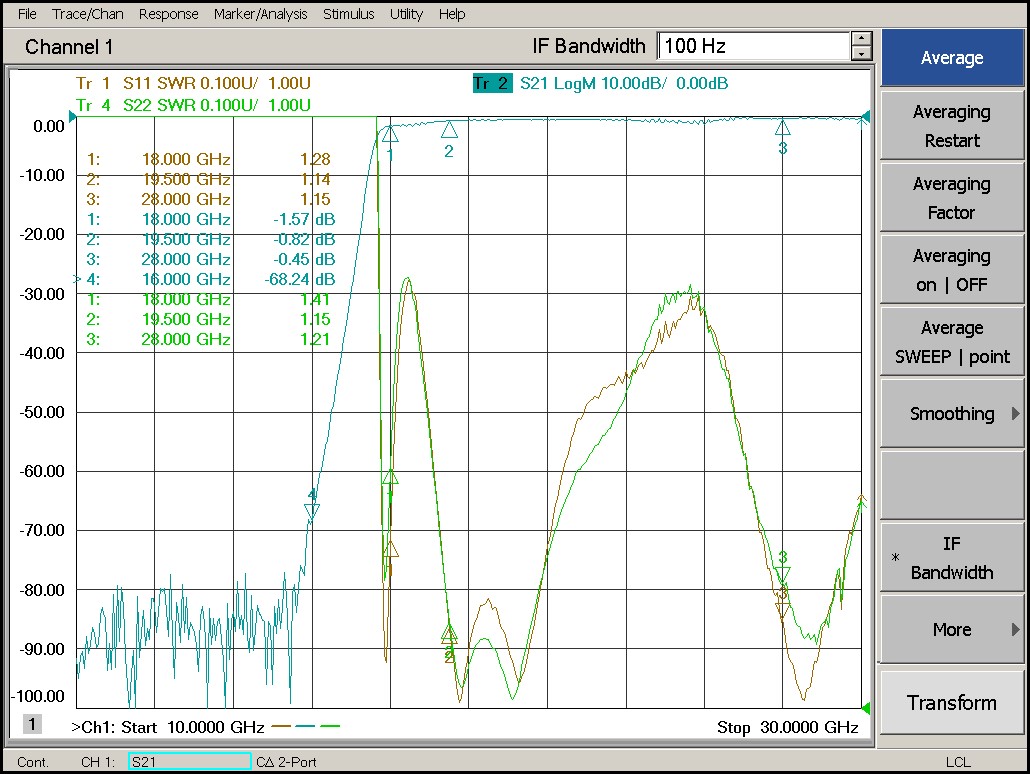

18.0 GHz to 28 GHz Rejection ≥60 dB @ DC-16 GHz High Pass Cavity Filter 01

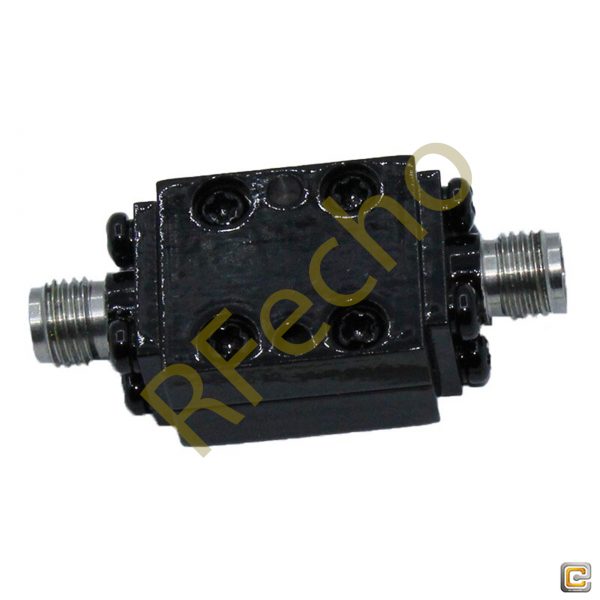

18.0 GHz to 28 GHz Rejection ≥60 dB @ DC-16 GHz High Pass Cavity Filter 02

[/vc_tabs]

Additional information

Weight 0.015 kg
Min. Pass Band Frequency (GHz)

18

Max. Pass Band Frequency (GHz)

28

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤2.0dB @ 18 ~19.5GHz ≤1.0dB @ 19.5~28GHz

VSWR

≤1.8:1

Rejection

≥60 dB @ DC-16 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
