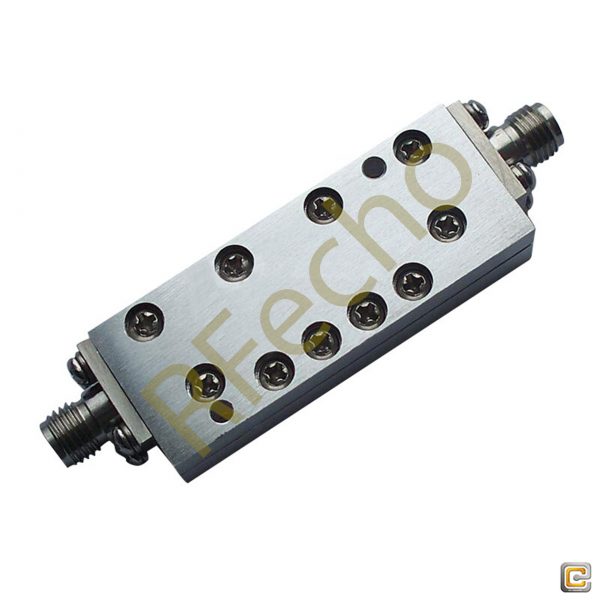

2GHz to 18GHz RF Passive High Pass Filter rejection ≥ 50dB @ DC~1.5GHz High Pass RF Filter with SMA Female Connector

2GHz to 18GHz RF Passive High Pass Filter model OHP: 2000-18000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This 2GHz to 18GHz RF Microwave High Pass Filter Manufactured with a passband frequency from 2GHz to 18GHz and a Cut-off frequency 1.5GHz. Our High Pass RF Filter provides a nominal insertion loss of ≤1.5dB across its passband and a typical rejection of ≥50dB @ DC to 1.5GHz. Since the high end cutoff frequency of 2GHz to 18GHz RF Passive High Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This High Pass RF Filter has Passband VSWR of ≤1.7:1 and power handling of ≤10W. 2GHz to 18GHz RF Passive High Pass Filter is manufactured with SMA Female Connector and Net weight of 0.025Kg. 2GHz to 18GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 2GHz to 18Hz RF Microwave High Pass Filter is ready for shipping worldwide after purchase. Additional specs of this High Pass RF Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-2000-18000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Cavity Filter – OHP-2000-18000:

  • Cut Off Frequency: 1.5GHz,
  • Pass Band Frequency:  2-18GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 1.7,
  • Rejection: ≥50 dB @ DC-1.5 GHz.

Additional information

Weight 0.025 kg
Min. Pass Band Frequency (GHz)

2

Max. Pass Band Frequency (GHz)

18

Connection Type

SMA-Female

Power Handling (W)

10

Insertion Loss

≤1.5dB

VSWR

≤1.7:1

Rejection

≥50 dB @ DC-1.5 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
