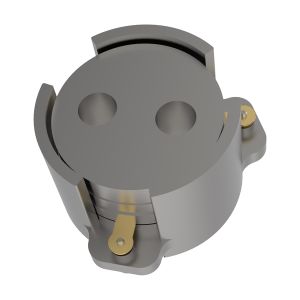

2.3 GHz to 2.4 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators OH103C-2300-2400
Stripline design
Surface mount package
Operating frequency from 1805 to 5000 MHz
High power handling up to 100W
Excellent isolation and return loss
Wide operating temperature range
- Description
- Datasheet

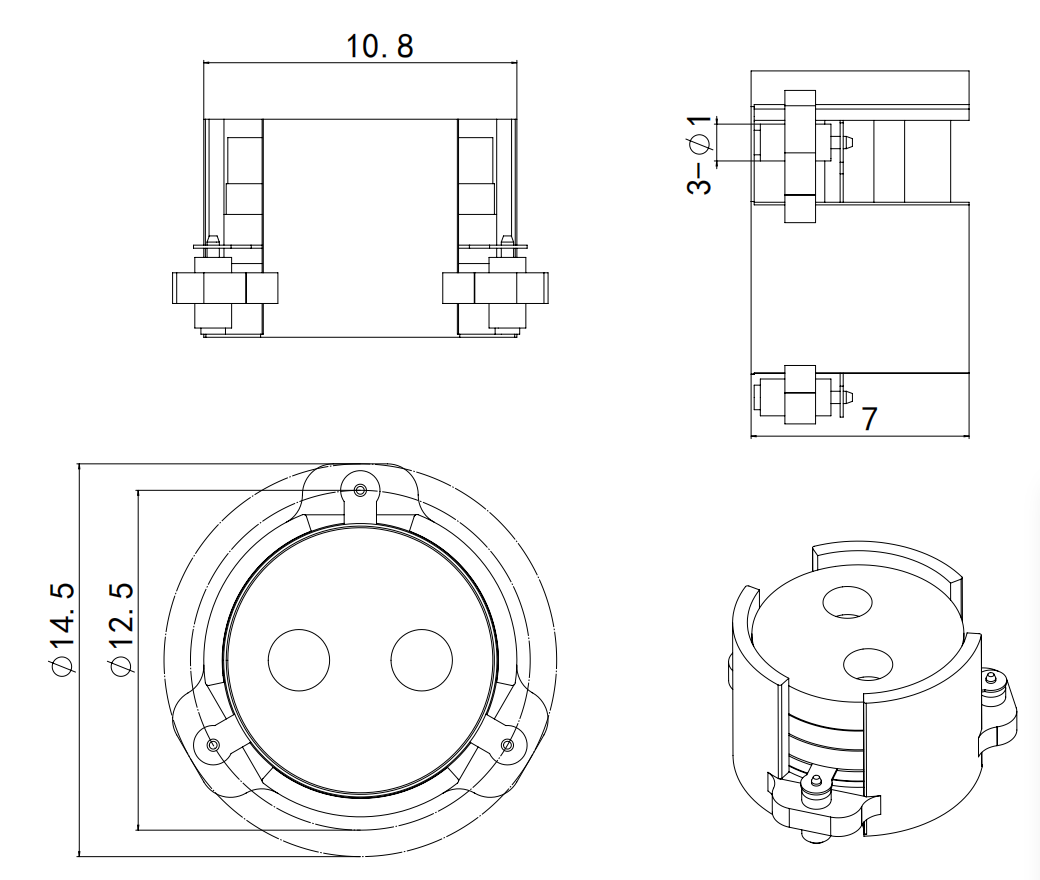

- Outline
- Reviews (0)
Description
The product named OH103C is high-performance stripline surface mount circulator designed for high-power communication systems, offering low insertion loss and high isolation across multiple frequency bands.
OH103C-2300-2400 | |
| 2.3 GHz to 2.4 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators OH103C-2300-2400 | |
Property | Value |
| Frequency (MHz) | 2300-2400 |
| Return Loss (dB) | 20 |
| Isolation (dB) | 20 |
| Insertion Loss (dB) | 0.3 |
| IMD3 (dBc) | -60 |
| Power (W) | 100 |
| Power note | 2*10W |
| Operating Temp ( degC) | -40 to 105 |
Features | |
| Stripline design | |
| Surface mount package | |
| Operating frequency from 1805 to 5000 MHz | |
| High power handling up to 100W | |
| Excellent isolation and return loss | |
| Wide operating temperature range | |
Applications | |
| Designed for robust performance in communication systems. | |
