High-Frequency Flex — OM-102FLEX Armored RF Cable

om 141flex sma sma armored transparent wm.png Flexible Value — OM-141FLEX Armored RF Cable
om 160flex sma sma plain transparent wm.png Flexible Routing — OM-160FLEX RF Cable
0 out of 5
( There are no reviews yet. )

$156.28 – $614.69

E-Testing ECO

2.4 mm male to 2.4 mm male · 50 GHz

F011-131S0-131S0-500-C

SKU: F011-131S0-131S0-500-C Categories: E-Testing ECO, OM-102Flex, RF Cables
Add to Wishlist

Description

Technical specifications

50 GHzMaximum frequency
OM-102FLEXFlexible coaxial cable
Ø 2.59 mmBase cable jacket diameter
End A
2.4 mm male, straight
End B
2.4 mm male, straight
Armour
Composite
Assembly insertion loss
Confirm for required length and frequency
Base cable jacket
ETFE
Base cable construction
PTFE, stranded silver-plated copper conductor, triple shield
One-time bend radius, base cable
8.13 mm
Repeated bend radius, base cable
24.38 mm

Cable details

OM-102FLEX armoured cable bend detail
Armoured cable routing · Illustrative bend.

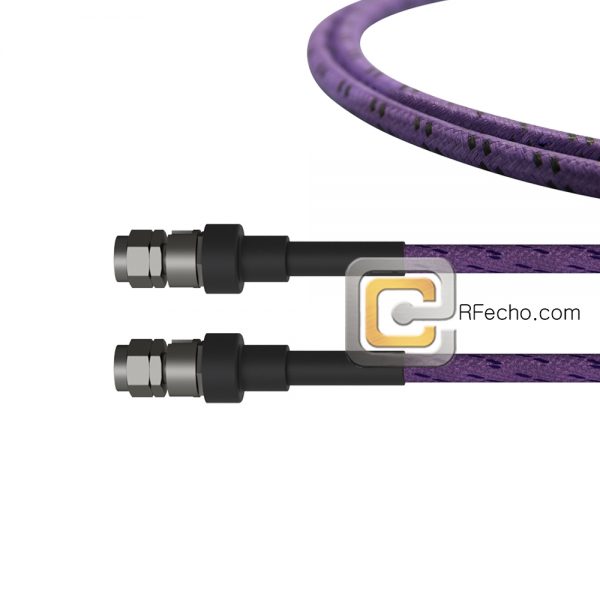

2.4 mm straight male connector close-up
2.4 mm male × 2

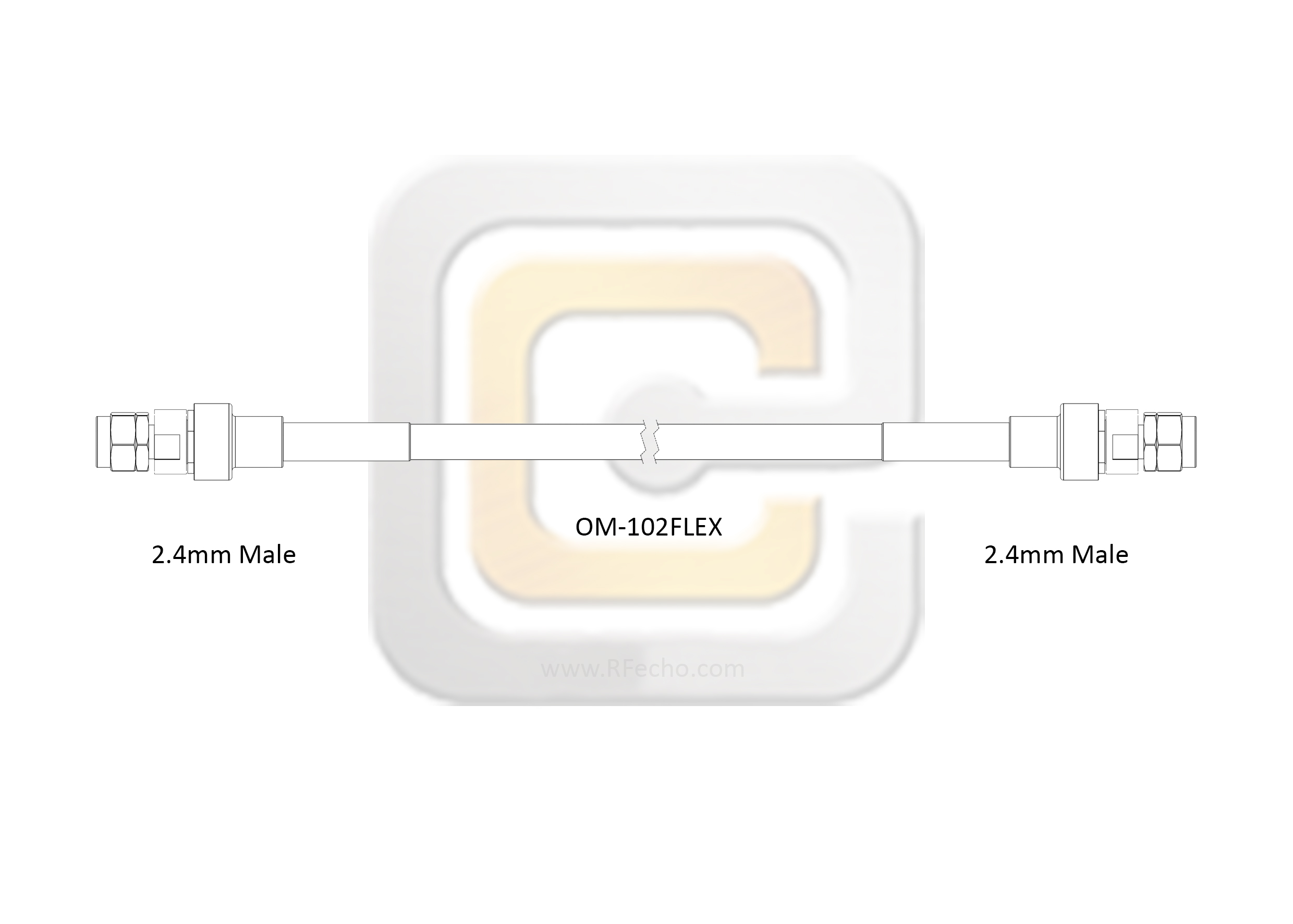

2.4 mm male  —  OM-102FLEX  —  2.4 mm male

Include your required cable length and operating frequency when requesting a quote.

Cable cutaway

OM-102FLEX base cable cutaway
Illustrative base cable construction. Layer thicknesses are schematic.

48 in reference assembly · maximum insertion loss

OM-102FLEX loss versus frequency
Frequency Loss
6 GHz 3.00 dB
12 GHz 4.32 dB
18 GHz 5.44 dB
26.5 GHz 6.68 dB
50 GHz 9.80 dB

Reference values apply to the stated assembly length and include connector effects. Bend radii above apply to the base cable.
