Flexible Routing — OM-160FLEX RF Cable

om 102flex 2.4mm 2.4mm armored transparent wm.png High-Frequency Flex — OM-102FLEX Armored RF Cable
om 195tc sma sma plain transparent wm.png Flexible Testing — OM-195TC RF Cable
0 out of 5
( There are no reviews yet. )

$77.39 – $315.53

E-Testing ECO

SMA male to SMA male · 26.5 GHz

F016-321S0-321S0-265-N

SKU: F016-321S0-321S0-265-N Categories: E-Testing ECO, OM-160Flex, RF Cables
Add to Wishlist

Description

Technical specifications

26.5 GHzMaximum frequency
OM-160FLEXFlexible coaxial cable
Ø 3.94 mmBase cable jacket diameter
End A
SMA male, straight
End B
SMA male, straight
Armour
None
Assembly insertion loss
Confirm for required length and frequency
Base cable jacket
ETFE
Base cable construction
PTFE, solid silver-plated copper conductor, triple shield
Repeated bend radius, base cable
20.32 mm

Cable details

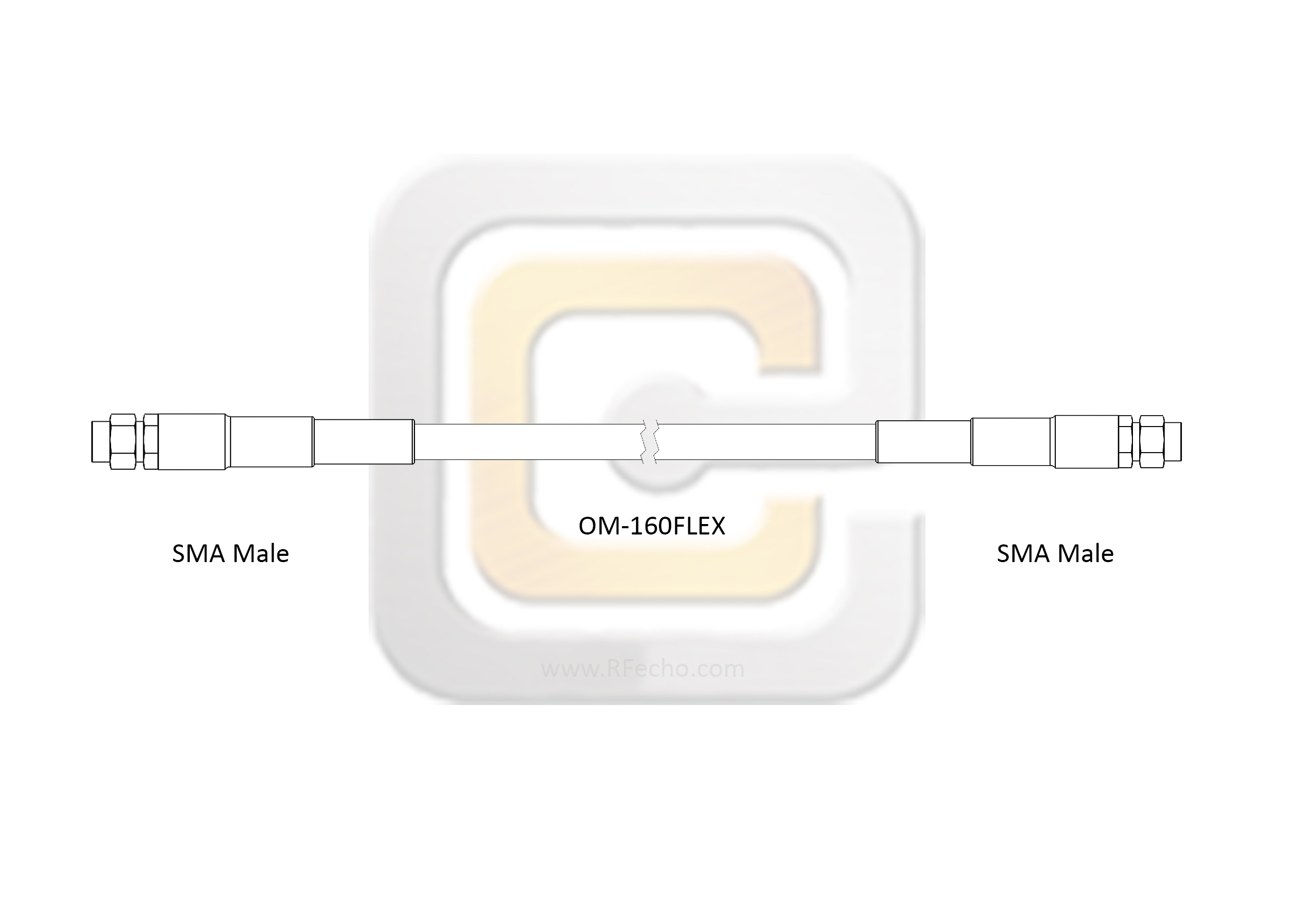

SMA male — OM-160FLEX — SMA male

OM-160FLEX plain cable routing
Cable routing · Cable family routing illustration. See connector close-ups for this SKU.

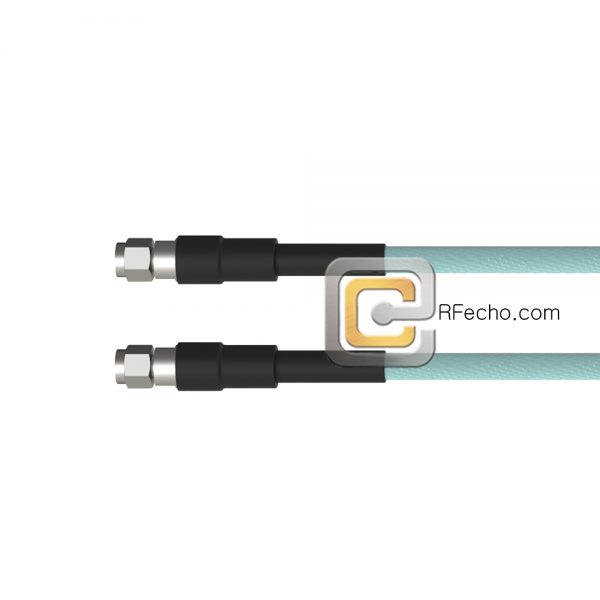

SMA straight male connector close-up
SMA male × 2 · Straight connector.

Cable cutaway

OM-160FLEX construction cutaway
Illustrative cable construction. Layer thicknesses are schematic.

Loss versus frequency

OM-160FLEX loss versus frequency
Typical base cable attenuation. The assembly frequency rating is listed above. Total insertion loss depends on length, frequency and connectors.
