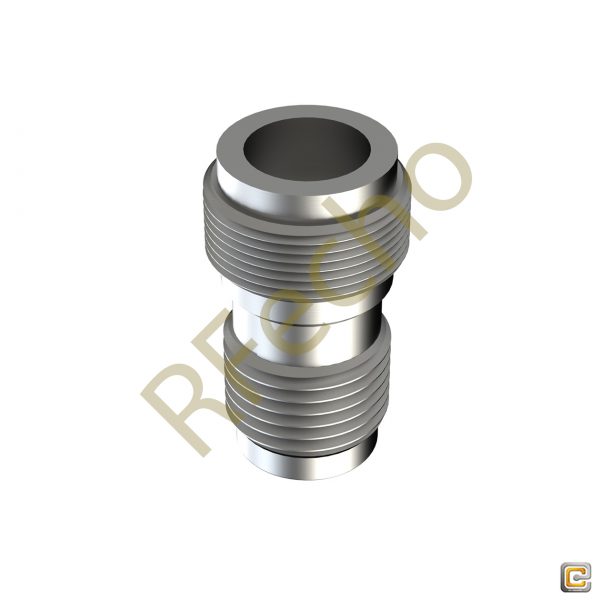

2.40mm 50 GHz, 0.009″ Accept Pin Diameter, Thread-In Female Connector

2.40mm 50 GHz, 0.009″ Accept Pin Diameter, Thread-In Female Connector

Model D370-P09-Y02-A is a Female connector. 2.40mm connectors are durable, Operational temperature rating of -55°C to +135°C. 2.40mm having low insertion loss, excellent repeatability, RF leakage ≤ -100 dB.

2.40mm Connectors offer the frequency range from DC to 50 GHz, and the mounting method is Thread-In, where the flange size is NA. This model of 2.40mm connector provide the accept pin diameter of 0.009″ inches.

Description

SPEC

2.40mm Connectors

2.40mm 50 GHz, 0.009″ Accept Pin Diameter, Thread-In NA Mounting Flange Female Connector

D370-P09-Y02-A

Model D370-P09-Y02-A is a Female connector. 2.40mm connectors are durable, Operational temperature rating of -55°C to +135°C. 2.40mm having low insertion loss, excellent repeatability, RF leakage ≤ -100 dB.

2.40mm Connectors offer the frequency range from DC to 50 GHz, and the mounting method is Thread-In, where the flange size is NA. This model of 2.40mm connector provide the accept pin diameter of 0.009″ inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

50

Flange (inch)

NA

Mounting

Thread-In

Accept Pin Diameter (inch)

0.009″

Gender

Female

Features

Low VSWR

Free through 50 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

Outline

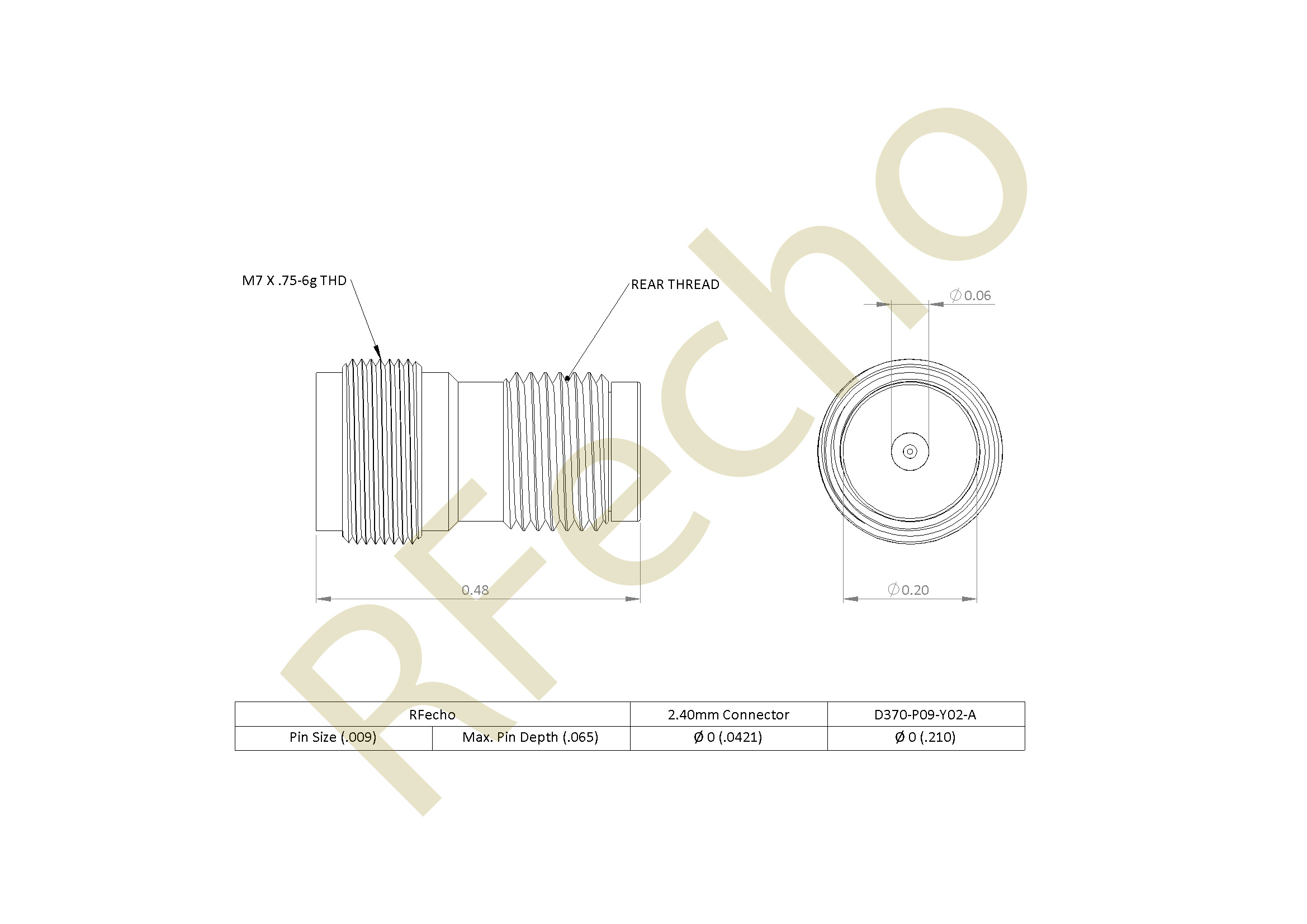

D370 P09 Y02 A outline 2.40mm 50 GHz, 0.009″ Accept Pin Diameter, Thread-In Female Connector

Plot

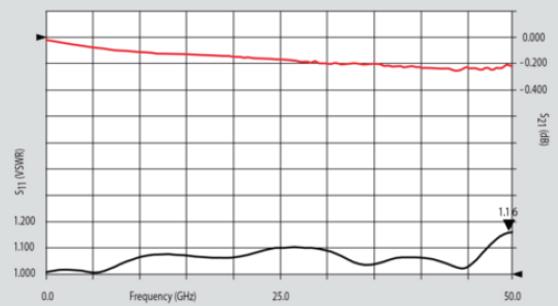

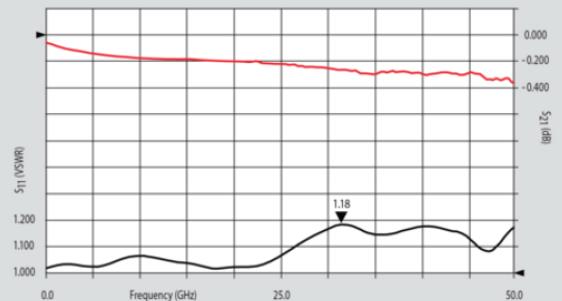

D370 P09 Y02 A plot1 2.40mm 50 GHz, 0.009″ Accept Pin Diameter, Thread-In Female ConnectorD370 P09 Y02 A plot2 2.40mm 50 GHz, 0.009″ Accept Pin Diameter, Thread-In Female Connector

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

50

Flange (inch)

Mounting

Accept Pin Diameter (inch)

Gender
