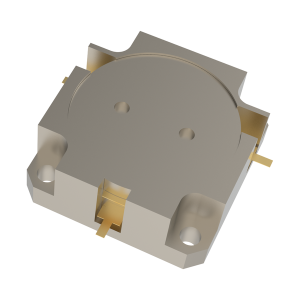

2.496 GHz to 2.69 GHz, 0.25 dB Insertion Loss, 23.0 dB Isolation, Drop-in Series Isolator-OH532-2496-2690
$0.00
Embedded stripline design
High isolation up to 23dB
Low insertion loss as low as 0.25dB
High power handling capacity
Wide operating temperature range from -40 to +85 degC
Excellent IMD3 performance
- Description
- Reviews (0)
Description
The product named OH532 is high-performance embedded circulator designed for stripline applications, offering excellent isolation and low insertion loss across its operating frequency range.
OH532-2496-2690 |
|
|
2.496 GHz to 2.69 GHz, 0.25 dB Insertion Loss, 23.0 dB Isolation, Drop-in Series Isolator-OH532-2496-2690 |
|
Property |
Value |
|
Frequency (MHz) |
2496-2690 |
|
Return Loss (dB) |
23 |
|
Isolation (dB) |
23 |
|
Insertion Loss (dB) |
0.25 |
|
IMD3 (dBc) |
-65 |
|
Power (W) |
-1 |
|
Operating Temp ( degC) |
-40 to 85 |
Features |
|
|
Embedded stripline design |
|
|
High isolation up to 23dB |
|
|
Low insertion loss as low as 0.25dB |
|
|
High power handling capacity |
|
|
Wide operating temperature range from -40 to +85 degC |
|
|
Excellent IMD3 performance |
|
Applications |
|
|
Designed for telecommunications applications, featuring robust performance and reliable signal isolation. |
|
