OH532-3400-3800

Three-port drop-in circulator

3400-3800 MHz · 0.30 dB insertion loss · 22 dB isolation

25.4 x 25.4 x 10 mm · 250 W

SKU: OH532-3400-3800 Categories: Circulators, Drop-In Series Circulators

Description

Technical specifications

3400-3800 MHzFrequency range
0.30 dBInsertion loss
22 dBIsolation
Frequency range
3400-3800 MHz
Insertion loss
0.30 dB
Isolation
22 dB
Return loss
22 dB
Power rating
250 W
IMD3
-65 dBc at 2 x 50 W
Operating temperature
-40 to +85 °C
Body dimensions
25.4 x 25.4 x 10 mm
Mounting holes
4 x Ø2.7 through; 20.8 mm pitch
RF tabs
3 x 1.2 mm wide; 2.5 ±0.5 mm projection

Circulator details

OH532-3400-3800 · Three-port drop-in circulator · 3400-3800 MHz

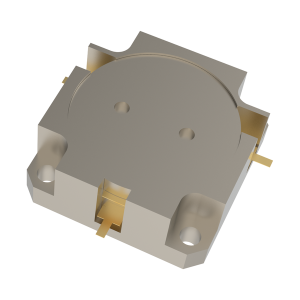

Compact embedded stripline circulator with three flat RF solder tabs and four corner mounting ears. Rated power: 250 W. IMD3 test condition: 2 x 50 W.

Mechanical outline

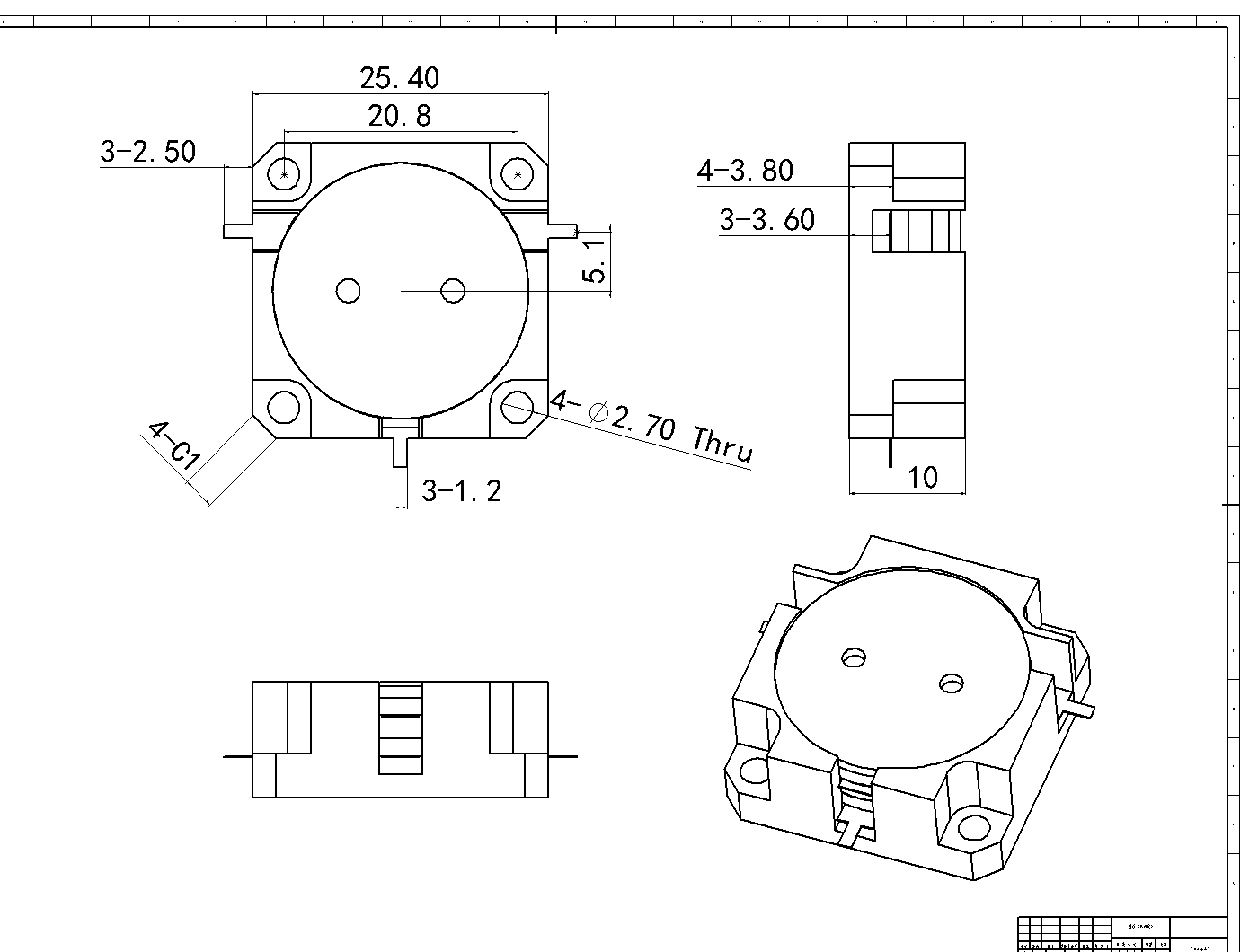

OH532-3400-3800 mechanical dimensions
Top, side, front and isometric views. Dimensions in mm.

Performance plots · 3400-3800 MHz

Full reference-curve illustration; target-band labels, not measured at this band.

OH532-3400-3800 frequency-mapped performance plots
S11 · mapped marker data
Frequency (MHz) Magnitude (dB)
3400.000 -36.828
3800.000 -31.68
S12 · mapped marker data
Frequency (MHz) Magnitude (dB)
3400.000 -0.1574
3800.000 -0.1782
S22 · mapped marker data
Frequency (MHz) Magnitude (dB)
3400.000 -29.619
3800.000 -34.224
S21 · mapped marker data
Frequency (MHz) Magnitude (dB)
3400.000 -31.748
3800.000 -31.331

Product datasheet

Full specifications, rendered mechanical dimensions and frequency-mapped performance illustrations.

Download PDF datasheet
