20.1 dBi Gain, 30 GHz to 40 GHz, 20 dB Return Loss, Luneburg Lens Antenna

20.1 dBi Gain, 30 GHz to 40 GHz, 20 dB Return Loss, Luneburg Lens Antenna

Luneburg lens antenna is a spherical dielectric lens antenna, which focuses microwaves to the focal point through dielectric. Luneburg lens antenna is widely used in microwave,millimeter wave, mobile communication, satellite communication and radio astronomy due to its high gain, low profile and multi-feed multi-beam operation.

Luneburg Lens Antenna covers the frequency range from 30 GHz to 40 GHz and offers the nominal gain of 20.1 dBi where the return loss is 20 dB. HPBW is 8°@30GHz. Luneburg Lens Antenna operates in all polarization.

SKU: OLLA-300400 Categories: Luneburg Lens Antenna, RF Antenna

Description

PDF

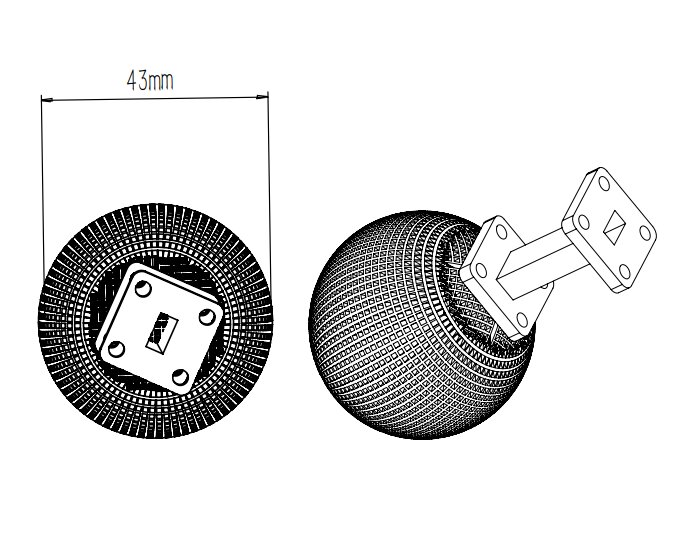

Outline

20.1 dBi Gain, 30 GHz to 40 GHz, 20 dB Return Loss, Luneburg Lens Antenna

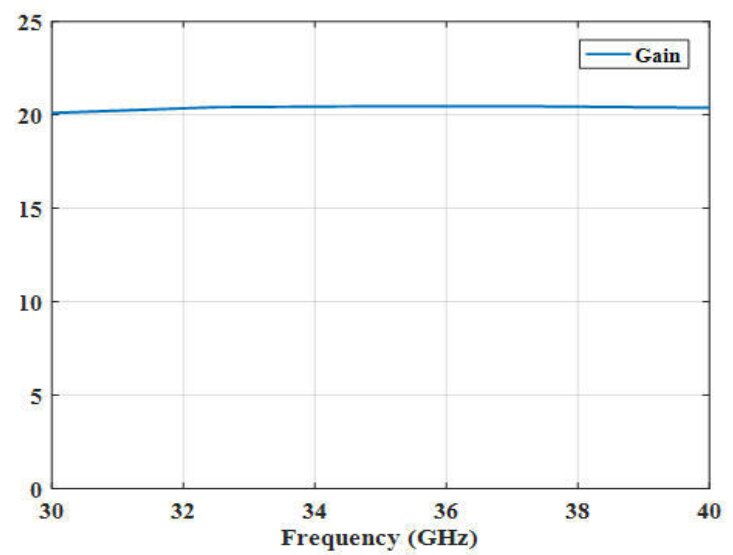

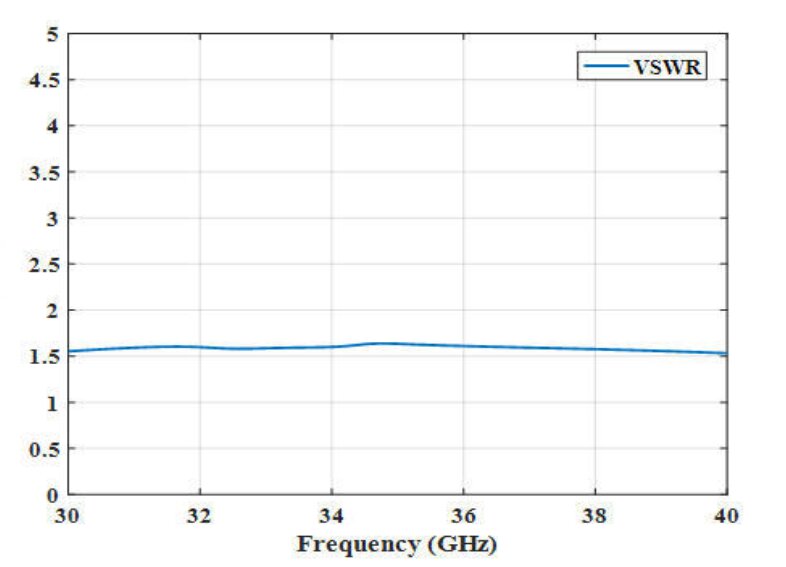

Plot

20.1 dBi Gain, 30 GHz to 40 GHz, 20 dB Return Loss, Luneburg Lens Antenna20.1 dBi Gain, 30 GHz to 40 GHz, 20 dB Return Loss, Luneburg Lens Antenna

Additional information

Min. Frequency (GHz)

30

Max. Frequency (GHz)

40

Gain (dBi)

20.1

Return Loss (dB)

20

HPBW 3 dB Beamwidth

8°@30GHz

Net Weight (Kg)

0.032

Diameter (mm)

50

Polarization

All polarizations
