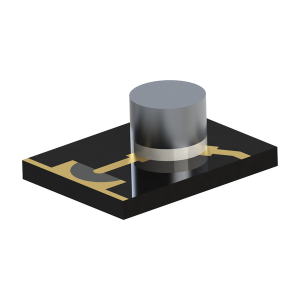

20.5 GHz to 24 GHz, 1.3 dB Insertion Loss, 16.0 dB Isolation, Micro-Strip Series Isolators Isolator-OG5A060-20.5-24
$0.00
Miniaturization and light weight
High product consistency and high reliability
Customizable
Suitable for aviation, aerospace, radar, and electronic countermeasures
Applicable for microwave communications and microwave testing fields
- Description
- Datasheet

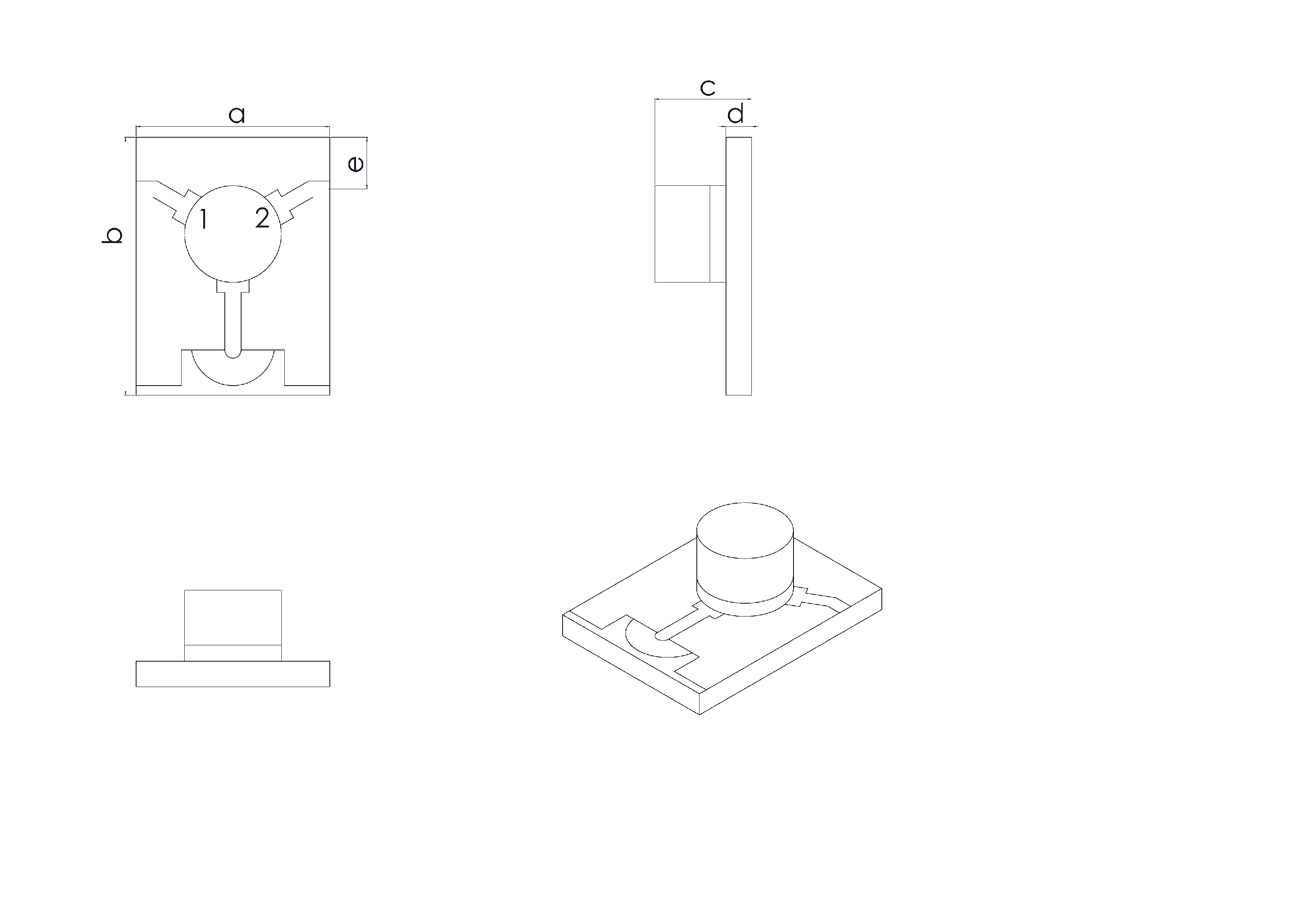

- Outline
- Reviews (0)
Description
The product named OG5A060 is high-performance microstrip isolator. These microstrip isolators are used for impedance matching and decoupling in integrated circuits, facilitating unidirectional transmission and signal processing, ideal for microwave integrated circuits.
OG5A060-20.5-24 |
|
|
20.5 GHz to 24 GHz, 1.3 dB Insertion Loss, 16.0 dB Isolation, Micro-Strip Series Isolators Isolator-OG5A060-20.5-24 |
|
Property |
Value |
|
Frequency (MHz) |
20500-24000 |
|
Return Loss (dB) |
0.7 |
|
Isolation (dB) |
16 |
|
Insertion Loss (dB) |
1.3 |
|
IMD3 (dBc) |
10 |
|
Power (W) |
-55 |
|
Operating Temp ( degC) |
+85 to 4.0 |
Features |
|
|
Miniaturization and light weight |
|
|
High product consistency and high reliability |
|
|
Customizable |
|
|
Suitable for aviation, aerospace, radar, and electronic countermeasures |
|
|
Applicable for microwave communications and microwave testing fields |
|
Applications |
|
|
Plays a role in impedance matching and decoupling in integrated circuits, while providing unidirectional transmission and signal processing functions. |
|
