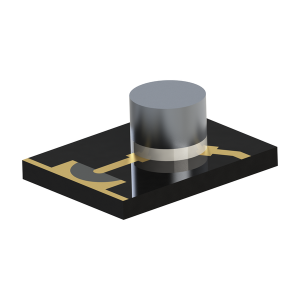

5.3 GHz to 7.5 GHz, 1.45 dB Insertion Loss, 15.0 dB Isolation, Micro-Strip Series Isolators Isolator-OG5A054-5.3-7.5
$0.00
Miniaturization and light weight
High product consistency and high reliability
Customizable
Suitable for aviation, aerospace, radar, and electronic countermeasures
Applicable for microwave communications and microwave testing fields
- Description
- Datasheet

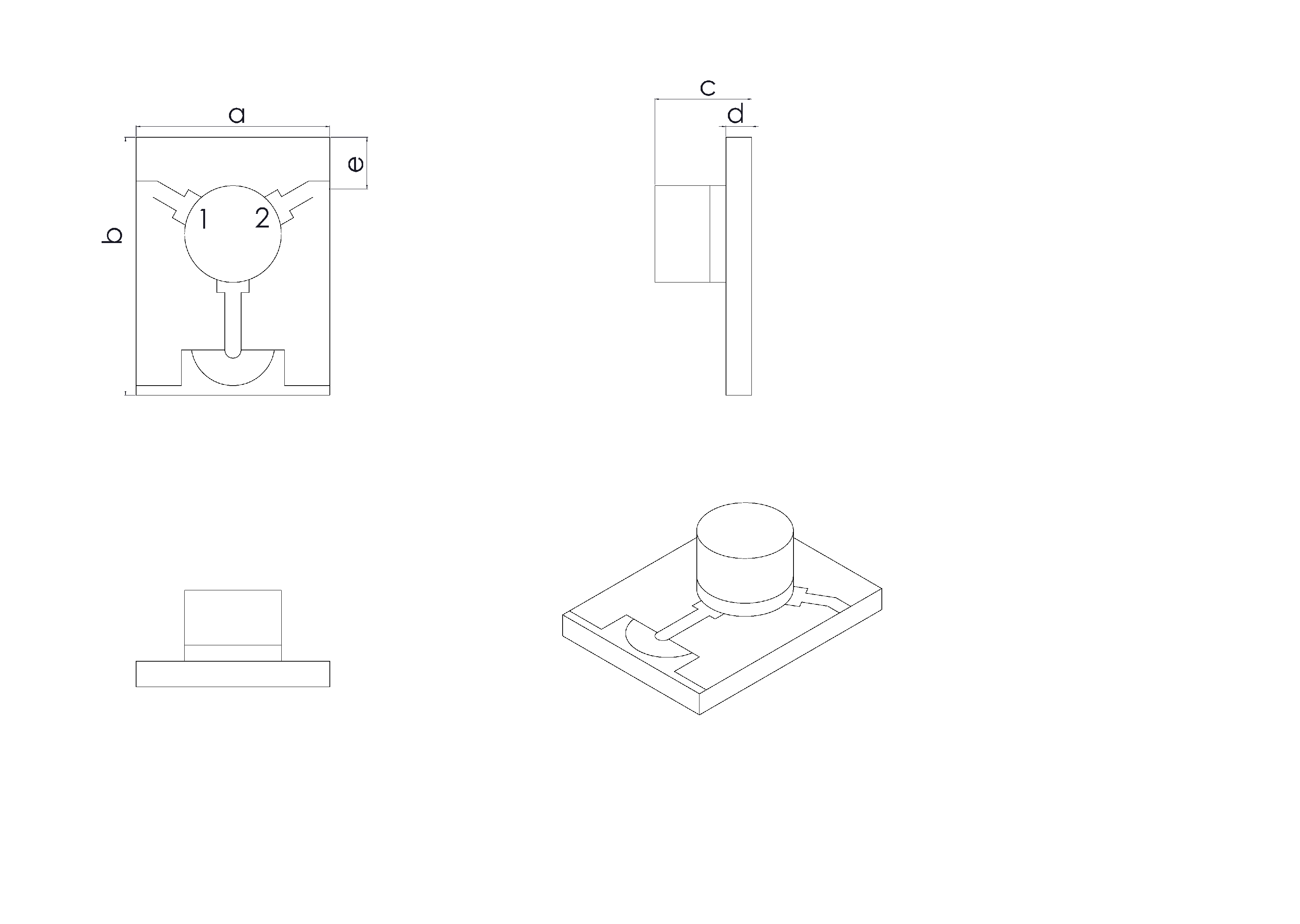

- Outline
- Reviews (0)
Description
The product named OG5A054 is high-performance microstrip isolator. These microstrip isolators are used for impedance matching and decoupling in integrated circuits, facilitating unidirectional transmission and signal processing, ideal for microwave integrated circuits.
OG5A054-5.3-7.5 |
|
|
5.3 GHz to 7.5 GHz, 1.45 dB Insertion Loss, 15.0 dB Isolation, Micro-Strip Series Isolators Isolator-OG5A054-5.3-7.5 |
|
Property |
Value |
|
Frequency (MHz) |
5300-7500 |
|
Return Loss (dB) |
0.7 |
|
Isolation (dB) |
15 |
|
Insertion Loss (dB) |
1.45 |
|
IMD3 (dBc) |
15 |
|
Power (W) |
-55 |
|
Operating Temp ( degC) |
+85 to 9.0 |
Features |
|
|
Miniaturization and light weight |
|
|
High product consistency and high reliability |
|
|
Customizable |
|
|
Suitable for aviation, aerospace, radar, and electronic countermeasures |
|
|
Applicable for microwave communications and microwave testing fields |
|
Applications |
|
|
Plays a role in impedance matching and decoupling in integrated circuits, while providing unidirectional transmission and signal processing functions. |
|
Reviews
There are no reviews yet.
