20 dBi Gain, 87 GHz to 100 GHz, 0.094″ Diameter Circular Waveguide WR-94 Waveguide W Band Conical Horn Antennas

20 dBi Gain, 87 GHz to 100 GHz, 0.094″ Diameter Circular Waveguide WR-94 Waveguide W Band Conical Horn Antennas

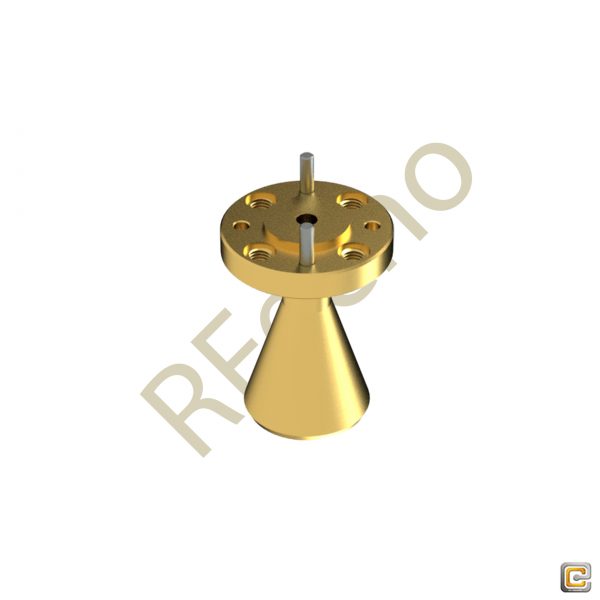

Model OCN-094-20 is a W Band conical horn antenna that operates from 87 GHz to 100 GHz. The antenna offers 20 dB nominal gain and a typical half power beamwidth of 16 degrees on the E-plane and 20 degrees on the H-plane.

The horn also offers typical side lobes of 20 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.094 diameter circular waveguide with UG-387/U-M flange.

SKU: OCN-094-20 Categories: Conical Horn Antennas, RF Antenna

Description

SPEC

Conical Horn Antennas

20 dBi Gain, 87 GHz to 100 GHz, 0.094″ Diameter Circular Waveguide WR-94 Waveguide W Band Conical Horn Antennas

OCN-094-20

Model OCN-094-20 is a W Band conical horn antenna that operates from 87 GHz to 100 GHz. The antenna offers 20 dB nominal gain and a typical half power beamwidth of 16 degrees on the E-plane and 20 degrees on the H-plane.

The horn also offers typical side lobes of 20 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.094 diameter circular waveguide with UG-387/U-M flange.

Property

Value

Min. Frequency (GHz)

87

Max. Frequency (GHz)

100

Gain(dBi)

20

3 dB Beamwidth, E-plane (?)

16

3 dB Beamwidth, H-plane (?)

20

Side Lobes, E-Plane (dB)

20

Side Lobes, H-Plane (dB)

28

Return Loss (dB)

23

Waveguide

WR-94

Band Type

W Band

Flange

UG-387/U-M flange

Diameter (Inch)

0.094

VSWR

NA

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear and Circular Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

PDF

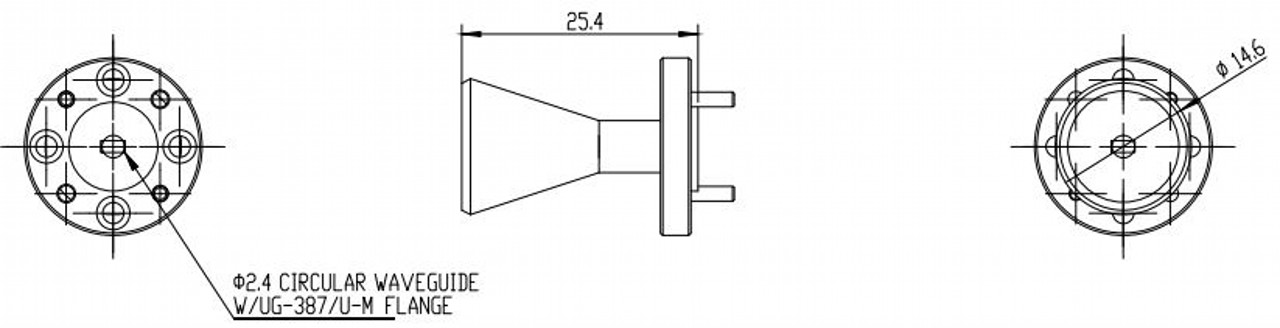

Outline

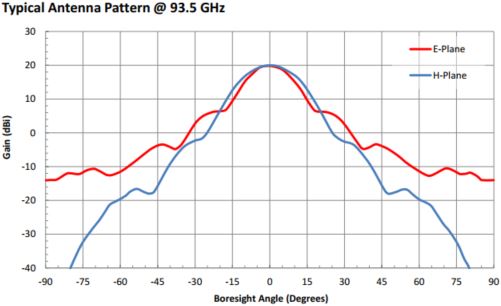

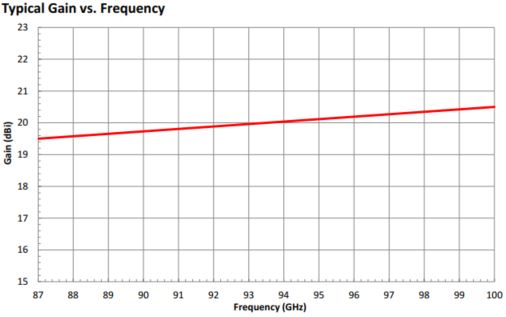

Plot

Additional information

Min. Frequency (GHz)

87

Max. Frequency (GHz)

100

Gain (dBi)

20

Waveguide

WR-94

VSWR

NA

Side Lobes, H-Plane (dB)

28

Side Lobes, E-Plane (dB)

-20

Flange

UG-387/U-M Flange

Band Type

W Band

Return Loss (dB)

23

Diameter (inch)

0.094
