23 dBi Gain, 58 GHz to 68 GHz, 0.141″ Diameter Circular Waveguide WR-141 Waveguide V Band Conical Horn Antennas

23 dBi Gain, 58 GHz to 68 GHz, 0.141″ Diameter Circular Waveguide WR-141 Waveguide V Band Conical Horn Antennas

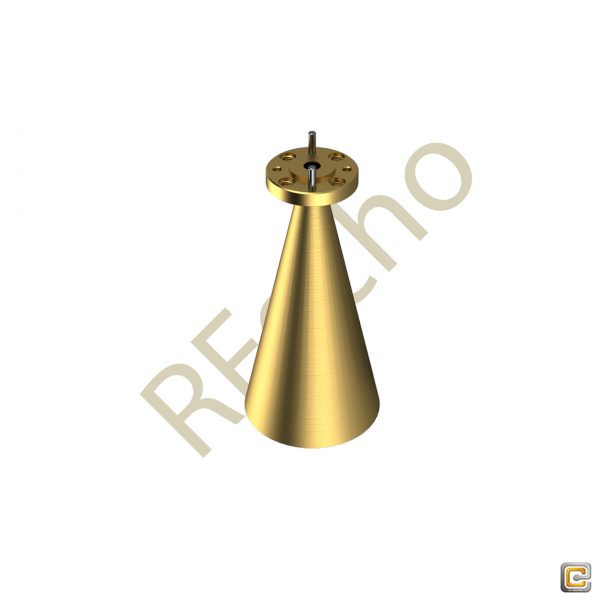

Model OCN-141-23 is a V Band conical horn antenna that operates from 58 GHz to 68 GHz. The antenna offers 23 dB nominal gain and a typical half power beamwidth of 11 degrees on the E-plane and 13 degrees on the H-plane.

The horn also offers typical side lobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.141 diameter circular waveguide with UG-385/U-M flange.

Description

SPEC

Conical Horn Antennas

23 dBi Gain, 58 GHz to 68 GHz, 0.141″ Diameter Circular Waveguide WR-141 Waveguide V Band Conical Horn Antennas

OCN-141-23

Model OCN-141-23 is a V Band conical horn antenna that operates from 58 GHz to 68 GHz. The antenna offers 23 dB nominal gain and a typical half power beamwidth of 11 degrees on the E-plane and 13 degrees on the H-plane.

The horn also offers typical side lobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.141 diameter circular waveguide with UG-385/U-M flange.

Property

Value

Min. Frequency (GHz)

58

Max. Frequency (GHz)

68

Gain(dBi)

23

3 dB Beamwidth, E-plane (?)

11

3 dB Beamwidth, H-plane (?)

13

Side Lobes, E-Plane (dB)

-20

Side Lobes, H-Plane (dB)

-28

Return Loss (dB)

NA

Waveguide

WR-141

Band Type

V Band

Flange

UG-385/U-M flange

Diameter (Inch)

0.141

VSWR

1.15:1

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear and Circular Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

PDF

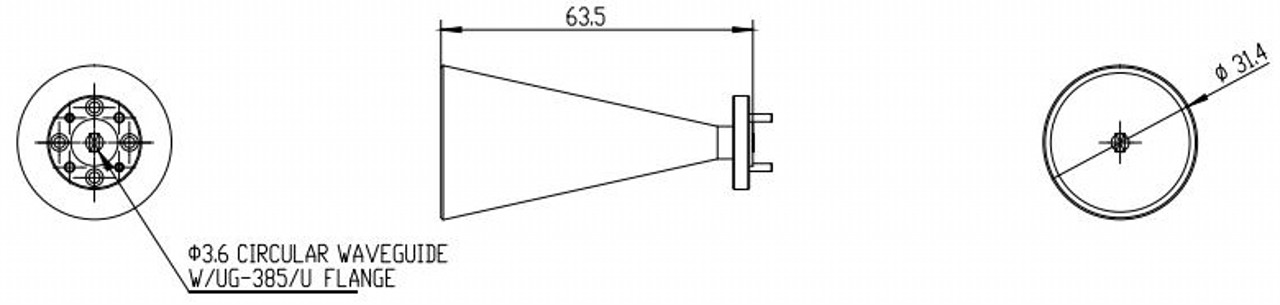

Outline

OCN 141 23 outline 23 dBi Gain, 58 GHz to 68 GHz, 0.141" Diameter Circular Waveguide WR-141 Waveguide V Band Conical Horn Antennas

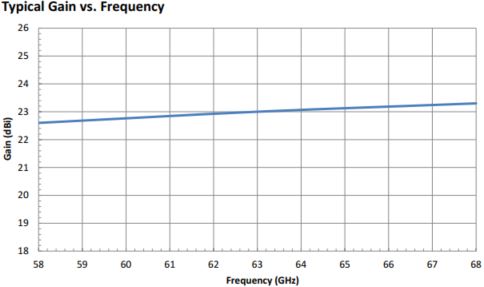

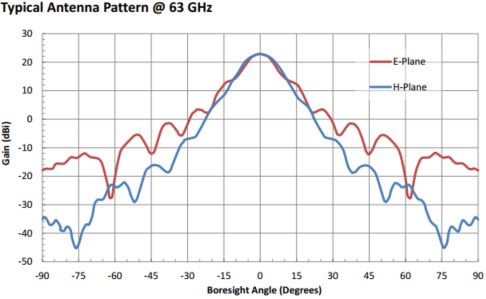

Plot

OCN 141 23 plot1 23 dBi Gain, 58 GHz to 68 GHz, 0.141" Diameter Circular Waveguide WR-141 Waveguide V Band Conical Horn AntennasOCN 141 23 plot2 23 dBi Gain, 58 GHz to 68 GHz, 0.141" Diameter Circular Waveguide WR-141 Waveguide V Band Conical Horn Antennas

Additional information

Min. Frequency (GHz)

58

Max. Frequency (GHz)

68

Gain (dBi)

23

Waveguide

VSWR

1.15:1

Side Lobes, H-Plane (dB)

Side Lobes, E-Plane (dB)

Flange

Band Type

Return Loss (dB)

Diameter (inch)
