  • Frequency range: 20 MHz to 8 GHz
  • Maximum real-time bandwidth: 80 MHz
  • Digital interfaces: Gigabit Ethernet (RJ45) and SFP+

The OZY11-CV-LT combines analog RF processing and digital signal processing in one module. It receives RF signals from an antenna and outputs digital baseband data via Gigabit Ethernet and SFP+. Its maximum real-time bandwidth is 80 MHz, and its panorama scan speed is better than 300 GHz/s (RBW = 25 kHz). The built-in GPS module timestamps data for use in time difference of arrival (TDOA) geolocation systems. The module can operate as an RF sensor or be integrated into a customer system.

SKU: OZY11-CV-LT Category: Digitized RF Receiver Modules
Add to Wishlist

Description

The OZY11-CV-LT combines analog RF processing and digital signal processing in one module. It receives RF signals from an antenna and outputs digital baseband data via Gigabit Ethernet and SFP+. Its maximum real-time bandwidth is 80 MHz, and its panorama scan speed is better than 300 GHz/s (RBW = 25 kHz). The built-in GPS module timestamps data for use in time difference of arrival (TDOA) geolocation systems. The module can operate as an RF sensor or be integrated into a customer system.

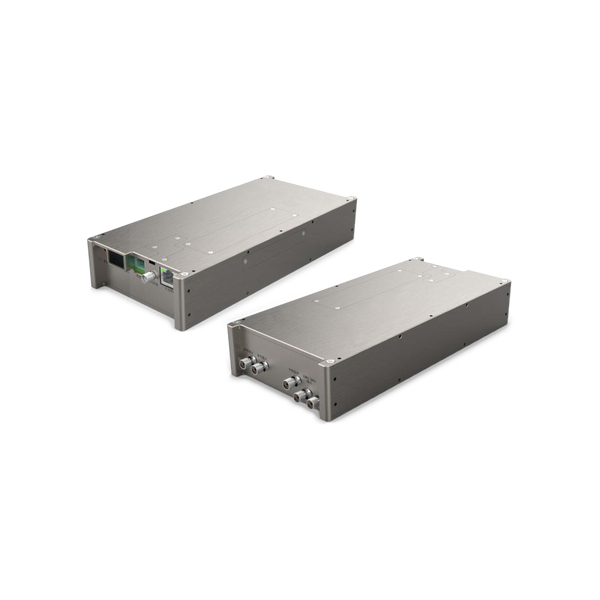

OZY11-CV-LT
20 MHz to 8 GHz, 80 MHz Real-Time Bandwidth Digital RF Receiver Module – OZY11-CV-LT

Property Value
Frequency Range 20 MHz to 8 GHz
Maximum Real-Time Bandwidth 80 MHz
Primary Functions FFM, PSCAN, FSCAN, MSCAN, MULTN, DPS
Frequency Accuracy Better than 0.5 ppm; better than 0.005 ppm (with GPS connected)
Phase Noise -100 dBc/Hz at 10 kHz offset (1 GHz carrier frequency)
Noise Figure Better than 13 dB
Second-Order Intercept Point (IP2) Better than 50 dBm
Third-Order Intercept Point (IP3) Better than 10 dBm
IF Rejection Better than 90 dB
Image Rejection Better than 90 dB
Panorama Scan Speed Better than 300 GHz/s (RBW=25 kHz)
DDC Channel Configuration 1 wideband channel (80 MHz) + 8 narrowband channels (500 kHz each), standard. Optional expansion increases the number of narrowband channels.
I/Q Data Acquisition Single-packet mode: continuous I/Q data within each packet; 8 to 500,000,000 complex samples. 32 bits per complex sample: 16-bit I and 16-bit Q. Continuous mode: with Gigabit Ethernet output only, I/Q data continuity is guaranteed at 10 MHz bandwidth. With SFP+ transfer enabled, I/Q data continuity is guaranteed at 80 MHz bandwidth. Optional stream-to-disk: an internal high-speed disk buffers the data, guaranteeing continuous I/Q data at 80 MHz bandwidth.
Minimum Signal Duration for 100% Probability of Intercept (POI) 200 ns
Communication Interfaces Gigabit Ethernet (RJ45) and SFP+
Power Consumption ≤30 W ≤35 W (with stream-to-disk enabled)
Dimensions 195.4 × 90.4 × 35.35 mm
Operating Temperature -35 °C to +60 °C
Storage Temperature -40 °C to +70 °C
Features
  • Frequency range: 20 MHz to 8 GHz
  • Maximum real-time bandwidth: 80 MHz
  • Digital interfaces: Gigabit Ethernet (RJ45) and SFP+
Typical Applications
  • Radio spectrum management
  • General spectrum analysis
  • Electromagnetic environment support for low-altitude applications
  • Signal reconnaissance and analysis
  • Satellite navigation monitoring
  • OEM integration into customer systems
Product-Family Overview

The operating principle and features describe the overall product family. The listed performance figures do not apply to every model. For the specifications of this model, refer to the technical specifications on pages 2-3 of its datasheet.

See page 4 of the datasheet for the operating principle and product-family highlights.

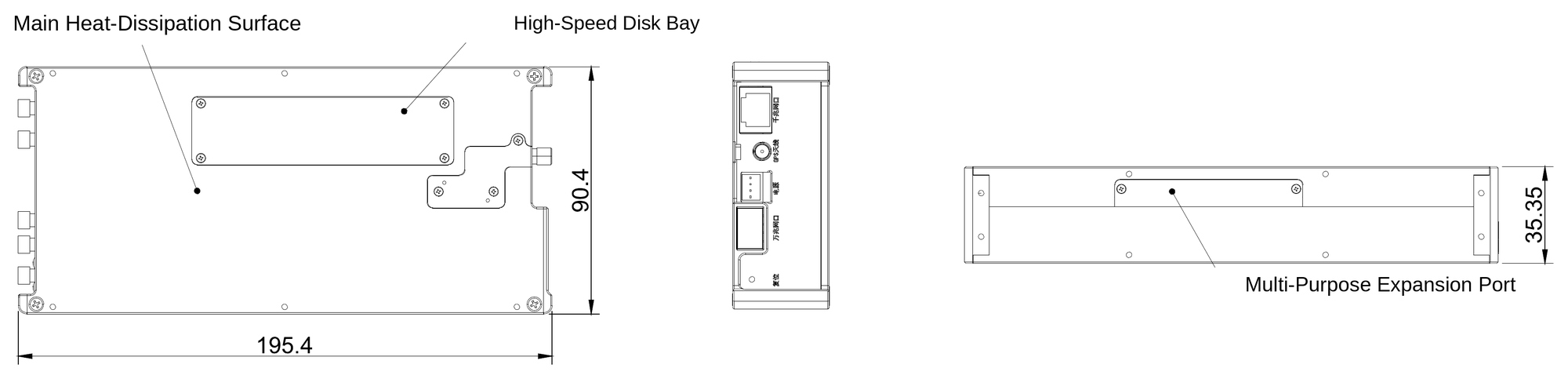

20 MHz to 8 GHz, 80 MHz Real-Time Bandwidth Digital RF Receiver Module – OZY11-CV-LT-Outline
