Configurable Digital RF Receiver, 320 MHz Real-Time Bandwidth – OZY02-Series

100 kHz to 40 GHz, 320 MHz Real-Time Bandwidth Digital RF Receiver Module – OZY02-BH-ML
20 MHz to 8 GHz, 80 MHz Real-Time Bandwidth Digital RF Receiver Module – OZY11-CV-LT
0 out of 5
( There are no reviews yet. )

  • Frequency range: Start frequency selectable: 100 kHz, 20 MHz Stop frequency selectable: 8 GHz, 18 GHz, 26.5 GHz, 40 GHz
  • Maximum real-time bandwidth: 320 MHz
  • Digital interfaces: Gigabit Ethernet (RJ45) and QSFP+

The OZY02 Series combines analog RF processing and digital signal processing using a high-performance RF receiver module and a separate digital processing unit. It receives RF signals from an antenna and outputs digital baseband data via Gigabit Ethernet and QSFP+. Its maximum real-time bandwidth is 320 MHz, and its panorama scan speed is better than 1500 GHz/s (RBW = 25 kHz). The built-in GPS module timestamps data for use in time difference of arrival (TDOA) geolocation systems. The system can operate as an RF sensor or be integrated into a customer system.

SKU: OZY02-Series Category: Digitized RF Receiver Modules
Add to Wishlist

Description

The OZY02 Series combines analog RF processing and digital signal processing using a high-performance RF receiver module and a separate digital processing unit. It receives RF signals from an antenna and outputs digital baseband data via Gigabit Ethernet and QSFP+. Its maximum real-time bandwidth is 320 MHz, and its panorama scan speed is better than 1500 GHz/s (RBW = 25 kHz). The built-in GPS module timestamps data for use in time difference of arrival (TDOA) geolocation systems. The system can operate as an RF sensor or be integrated into a customer system.

OZY02-Series
Configurable Digital RF Receiver, 320 MHz Real-Time Bandwidth – OZY02-Series

Property Value
Frequency Range Start frequency selectable: 100 kHz, 20 MHz Stop frequency selectable: 8 GHz, 18 GHz, 26.5 GHz, 40 GHz
Maximum Real-Time Bandwidth 320 MHz
Primary Functions FFM, PSCAN, FSCAN, MSCAN, MULTN, DPS, IQSTRM
Frequency Accuracy Better than 0.5 ppm; better than 0.001 ppm (with GPS connected)
Phase Noise -125 dBc/Hz at 10 kHz offset (1 GHz carrier frequency)
Noise Figure ≤12 dB (100 kHz to 19.99 MHz) ≤10 dB (19.99 MHz to 7999.99 MHz) ≤11 dB (7999.99 MHz to 26499.99 MHz) ≤16 dB (26499.99 MHz to 40000 MHz)
Second-Order Intercept Point (IP2) Better than 60 dBm
Third-Order Intercept Point (IP3) Better than 20 dBm
IF Rejection Better than 90 dB
Image Rejection Better than 90 dB
Panorama Scan Speed Better than 1500 GHz/s (RBW=25 kHz)
DDC Channel Configuration 1 wideband channel (320 MHz) + 4 narrowband channels (500 kHz each), standard. Optional expansion increases the number of narrowband channels.
I/Q Data Acquisition Single-packet mode: continuous I/Q data within each packet; 8 to 500,000,000 complex samples. 32 bits per complex sample: 16-bit I and 16-bit Q. Continuous mode: with Gigabit Ethernet output only, I/Q data continuity is guaranteed at 10 MHz bandwidth. With QSFP+ transfer enabled, I/Q data continuity is guaranteed at 320 MHz bandwidth. Optional stream-to-disk: an internal high-speed disk buffers the data, guaranteeing continuous I/Q data at 320 MHz bandwidth.
Minimum Signal Duration for 100% Probability of Intercept (POI) 100 ns
Communication Interfaces Gigabit Ethernet (RJ45) and QSFP+
Power Consumption ≤75 W ≤80 W (with stream-to-disk enabled)
Dimensions RF receiver module: 175 × 222 × 33 mm; separate digital processing unit required.
Operating Temperature -35 °C to +60 °C
Storage Temperature -40 °C to +70 °C
Features
  • Frequency range: Start frequency selectable: 100 kHz, 20 MHz Stop frequency selectable: 8 GHz, 18 GHz, 26.5 GHz, 40 GHz
  • Maximum real-time bandwidth: 320 MHz
  • Digital interfaces: Gigabit Ethernet (RJ45) and QSFP+
Typical Applications
  • Radio spectrum management
  • General spectrum analysis
  • Electromagnetic environment support for low-altitude applications
  • Signal reconnaissance and analysis
  • Satellite navigation monitoring
  • OEM integration into customer systems
Product-Family Overview

The operating principle and features describe the overall product family. The listed performance figures do not apply to every model. For the specifications of this model, refer to the technical specifications on pages 2-3 of its datasheet.

See page 4 of the datasheet for the operating principle and product-family highlights.

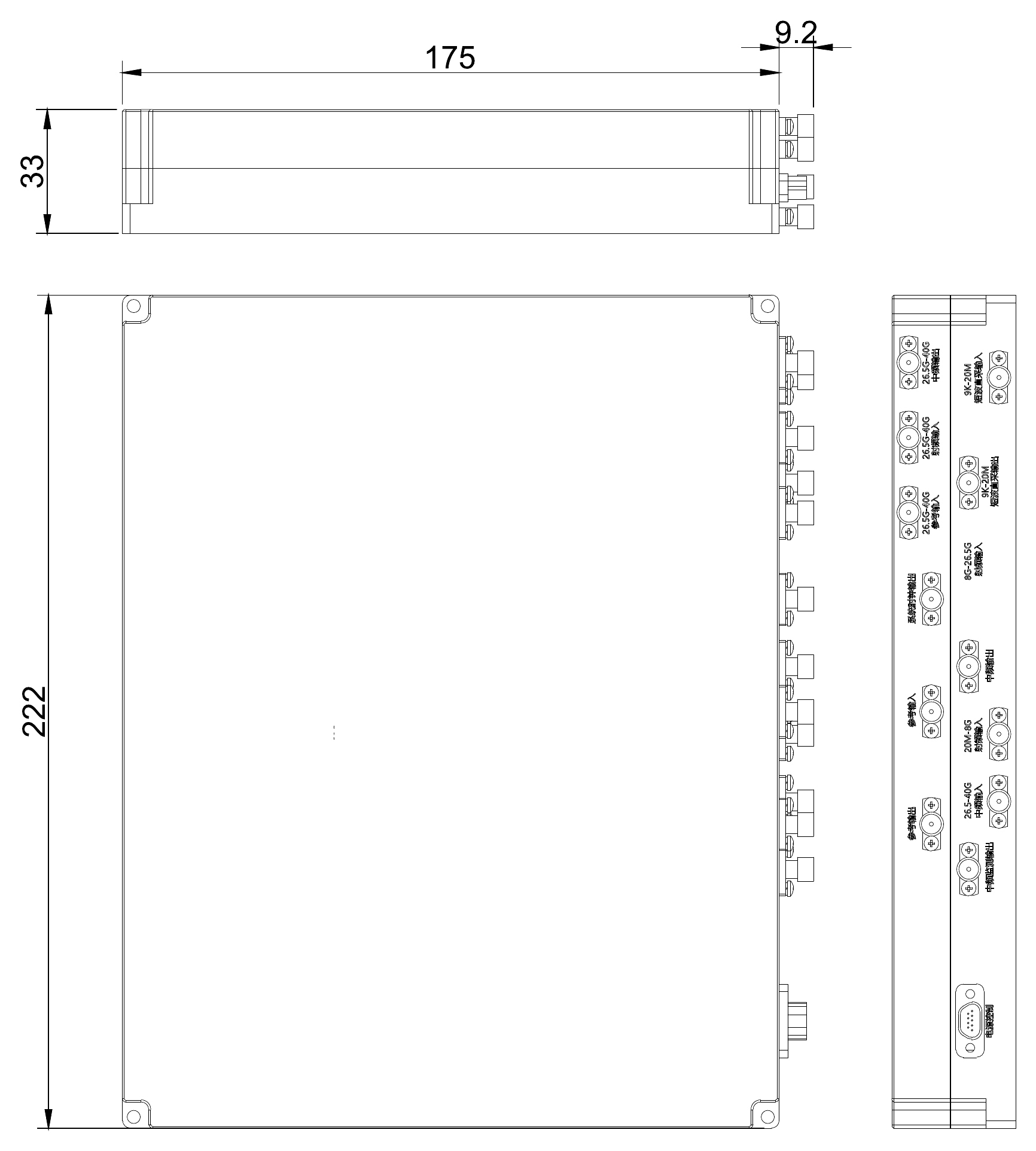

Configurable Digital RF Receiver, 320 MHz Real-Time Bandwidth – OZY02-Series-Outline
