20W Power Amplifier 2-18 GHz
Ultra-wideband frequency coverage from 2 GHz to 18 GHz
High saturated output power of 43 dBm minimum
Integrated current and temperature detection for system monitoring
Fast switching performance with 50 ns typical switching speed
Compact module design with SMA-Female RF interfaces
- Description
- Datasheet

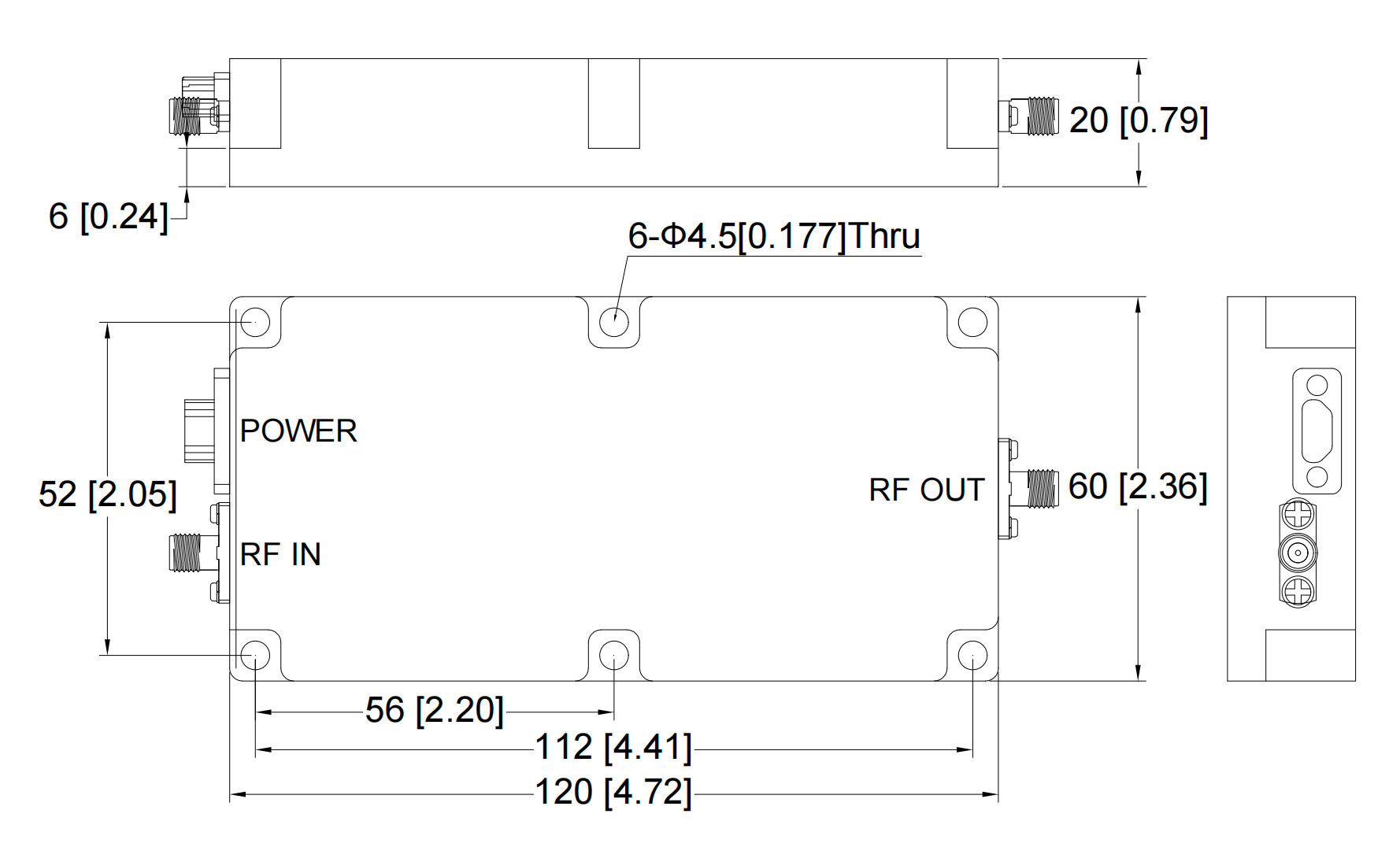

- Outline
- Reviews (0)
Description
This high-performance ultra-wideband power amplifier operates across the 2 to 18 GHz frequency range. It delivers a minimum saturated output power of 43 dBm with a small signal gain of at least 40 dB. The module is designed for continuous wave operation and includes comprehensive monitoring features such as temperature and current detection, along with an enable control interface. Housed in a compact 120 x 60 x 20 mm package, it utilizes SMA-Female connectors for RF signals and a J30J-9ZKP connector for DC power and control.
OPA20W-2-18-GC2 | |
| 20W Power Amplifier 2-18 GHz | |
Property | Value |
| Operating Frequency (GHz) | 2-18 GHz |
| Operating Temperature (degC) | -10-+40 degC |
| Storage Temperature (degC) | -40-+70 degC |
| Input Power for Rated Psat (dBm) | -5-+5 dBm |
| RF Input (Connector Type) | SMA-Female |
| RF Output (Connector Type) | SMA-Female |
| DC Interface (Connector Type) | J30J-9ZKP |
| VSWR input (Symbol) | VSWR_in |
| VSWR input (Typ) | 2.0 |
| VSWR input (Max) | 2.5 |
| Small Signal Gain (Symbol) | Gain |
| Small Signal Gain (Min) | 40 dB |
| Weight | TBD |
| Dimensions | 120 x 60 x 20 mm |
| 1 (Description) | GND |
| 1 (Specifications) | Ground |
| 2 (Description) | GND |
| 2 (Specifications) | Ground |
| 3 (Description) | EN |
| 3 (Specifications) | Amplifier Enable: +3.3V~+5V or Open (Internal Pull-up); Amplifier Disable: <1V or Short |
| 4 (Description) | V+ |
| 4 (Specifications) | +32Vdc Power |
| 5 (Description) | V+ |
| 5 (Specifications) | +32Vdc Power |
| 6 (Description) | GND |
| 6 (Specifications) | Ground |
| 7 (Description) | ID |
| 7 (Specifications) | Current detection: I = V/0.1, Unit: A (CW Pattern) |
| 8 (Description) | TP |
| 8 (Specifications) | Temperature detection: T = (V-0.5)/0.01, Unit: degC |
| 9 (Description) | V+ |
| 9 (Specifications) | +32Vdc Power |
| Cooling (Value) | External Heatsink (Not Supplied) |
| DC Interface (Specifications) | 9-Pin Connector |
| Harmonics @Pout = 43 dBm (Symbol) | 2nd |
| Harmonics @Pout = 43 dBm (Typ) | -10 dBc |
| Output Power P-1dB (Min) | 38 dBm |
| Output Power P-1dB (Symbol) | P-1dB |
| Output Power Psat (Min) | 43 dBm |
| Output Power Psat (Symbol) | Psat |
| Power Consumption @VDC = 32 V (Max) | 180 W |
| Power Consumption @VDC = 32 V (Symbol) | PC |
| Power Consumption @VDC = 32 V (Typ) | 150 W |
| Power Flatness (Max) | +/-2 dB |
| Power Flatness (Symbol) | dPo |
| Power Flatness (Typ) | +/-1.25 dB |
| RF Input (Specifications) | 50 Ohm |
| RF Output (Specifications) | 50 Ohm |
| Spurious Signals @Pout = 43 dBm (Symbol) | Spur |
| Spurious Signals @Pout = 43 dBm (Typ) | -60 dBc |
Features | |
| Ultra-wideband frequency coverage from 2 GHz to 18 GHz; High saturated output power of 43 dBm minimum; Integrated current and temperature detection for system monitoring; Fast switching performance with 50 ns typical switching speed; Compact module design with SMA-Female RF interfaces | |
Applications | |
| Wireless Infrastructure | |
| RF Microwave and Vsat | |
| Test Instrumentation | |
| Short Haul / High Capacity Links | |
| Military & Aerospace Applications | |
