30W Power Amplifier 2-18 GHz
High Output Power (45 dBm Psat)
Ultra-Wideband Frequency Range (2-18 GHz)
High Small Signal Gain (45 dB)
Fast Switching Speed (50-100 ns)
Integrated Current and Temperature Monitoring
- Description
- Datasheet

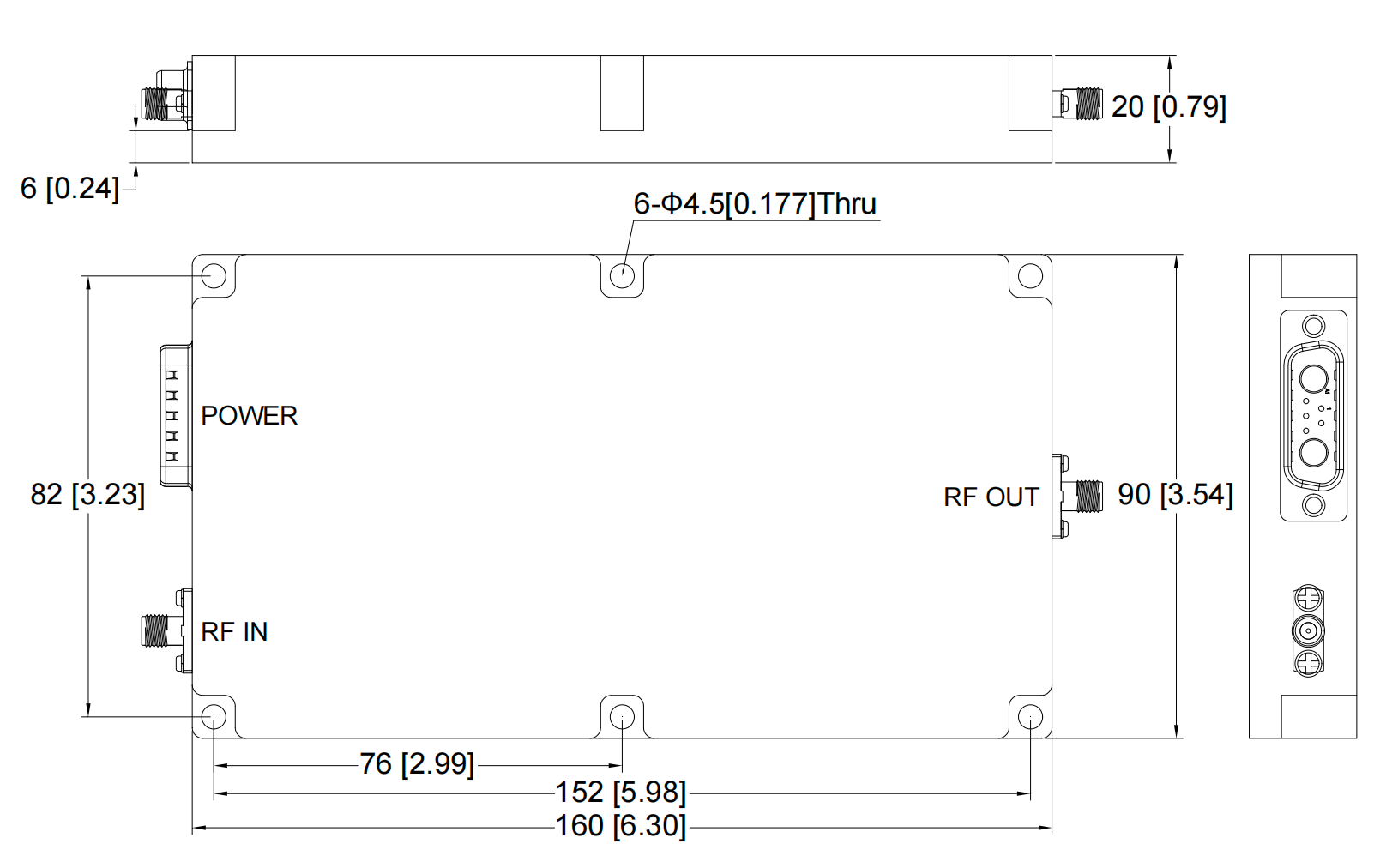

- Outline
- Reviews (0)
Description
This high-performance ultra-wideband power amplifier operates across a frequency range of 2 to 18 GHz. It delivers a saturated output power of 45 dBm with a small signal gain of 45 dB and excellent power flatness of ±1.25 dB. Designed for CW working patterns, the device features fast switching capabilities with typical speeds of 50 ns. It is housed in a compact module with SMA-Female RF connectors and a 7W2 DC interface that includes integrated current and temperature monitoring functions.
OPA30W-2-18-GC2 | |
| 30W Power Amplifier 2-18 GHz | |
Property | Value |
| Operating Frequency (GHz) | 2-18 GHz |
| Operating Temperature (degC) | -40-+50 degC |
| Storage Temperature (degC) | -40-+70 degC |
| Input Power for Rated Psat (dBm) | -5-+5 dBm |
| RF Connectors Input/Output (Value) | SMA-Female |
| DC Interface Connector (Value) | 7W2 |
| VSWR input (Symbol) | VSWR_in |
| VSWR input (Typ.) | 2.0 |
| VSWR input (Max.) | 2.5 |
| RF Impedance (Symbol) | Impedance |
| RF Impedance (Typ.) | 50 Ohm |
| Small Signal Gain (Symbol) | Gain |
| Small Signal Gain (Min.) | 45 dB |
| Weight | TBD |
| Dimensions | 160 x 90 x 20 mm |
| 1 (Description) | ID |
| 1 (Specifications) | Current detection: I = V/0.1, Unit: A (CW Pattern) |
| 2 (Description) | TP |
| 2 (Specifications) | Temperature detection: T = (V-0.5) /0.01, Unit: degC |
| 3 (Description) | GND |
| 3 (Specifications) | Control Ground |
| 4 (Description) | NC |
| 4 (Specifications) | Undefined |
| 5 (Description) | EN |
| 5 (Specifications) | Amplifier Enable: 3.3V~5V or Open (Internal Pull-up); Amplifier Disable: <1V or Short |
| A1 (Description) | +36V |
| A1 (Specifications) | Power |
| A2 (Description) | GND |
| A2 (Specifications) | Power Ground |
| Cooling (Value) | External Heatsink (Not Supplied) |
| Harmonics @Pout = 45 dBm (Symbol) | 2nd |
| Harmonics @Pout = 45 dBm (Typ.) | -10 dBc |
| Mounting Holes (Value) | 6-Ф4.5[0.177] Thru |
| Operating Voltage Limit (Max.) | +40 V |
| Operating Voltage Limit (Symbol) | VDC |
| Operating Voltage Limit (Typ.) | +36 V |
| Output Power P-1dB (Min.) | 40 dBm |
| Output Power P-1dB (Symbol) | P-1dB |
| Output Power Psat (Min.) | 45 dBm |
| Output Power Psat (Symbol) | Psat |
| Power Consumption @VDC = 40 V (Max.) | 450 W |
| Power Consumption @VDC = 40 V (Symbol) | PC |
| Power Consumption @VDC = 40 V (Typ.) | 400 W |
| Power Flatness (Max.) | +/-2 dB |
| Power Flatness (Symbol) | ΔPo |
| Power Flatness (Typ.) | +/-1.25 dB |
| Spurious Signals @Pout = 45 dBm (Symbol) | Spur |
| Spurious Signals @Pout = 45 dBm (Typ.) | -60 dBc |
| Switching Propagation Delay (Max.) | 500 ns |
| Switching Propagation Delay (Symbol) | tPHL/tPLH |
| Switching Propagation Delay (Typ.) | 150 ns |
| Switching Speed (Max.) | 100 ns |
| Switching Speed (Symbol) | Tr/Tf |
| Switching Speed (Typ.) | 50 ns |
| Tolerances | Outline drawing +/-0.1, Hole +/-0.1 mm |
| Working Pattern (Min.) | 0 |
| Working Pattern (Symbol) | WP |
| Working Pattern (Typ.) | CW |
Features | |
| High Output Power (45 dBm Psat); Ultra-Wideband Frequency Range (2-18 GHz); High Small Signal Gain (45 dB); Fast Switching Speed (50-100 ns); Integrated Current and Temperature Monitoring | |
Applications | |
| Wireless Infrastructure | |
| RF Microwave and Vsat | |
| Test Instrumentation | |
| Short Haul / High Capacity Links | |
| Military & Aerospace Applications | |
