23 dBi Gain, 33 GHz to 50 GHz, WR-22 Waveguide Millimeter SGH Antenna

$890 $757

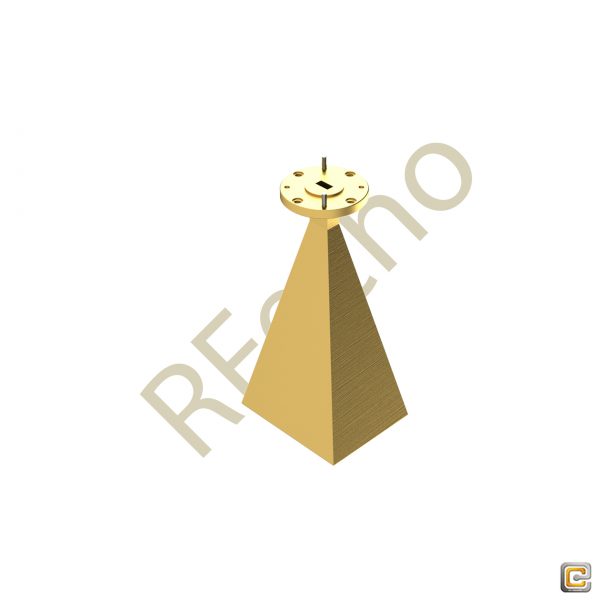

This model OLB-22-23 is a Millimeter SGH Antenna, operating frequency range is 33 GHz to 50 GHz. Millimeter SGH Antenna offers nominal gain 23dBi and typical half power beam width on the E-plane and H-plane is E 11° / H 13°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-22 waveguide withUG-383/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Description

SPEC

Millimeter SGH Antenna

23 dBi Gain, 33 GHz to 50 GHz, WR-22 Waveguide Millimeter SGH Antenna

OLB-22-23

This model OLB-22-23 is a Millimeter SGH Antenna, operating frequency range is 33 GHz to 50 GHz. Millimeter SGH Antenna offers nominal gain 23dBi and typical half power beam width on the E-plane and H-plane is E 11° / H 13°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-22 waveguide withUG-383/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Property

Value

Min. Frequency (GHz)

33

Max. Frequency (GHz)

50

Gain(dBi)

23

HPBW 3 dB Beamwidth

E 11° / H 13°

Waveguide

WR-22

Flange

UG-383/U Flange

Material

Cu

Polarization

Linear

Impedance (?)

50

Features

Inline Configuration

Linear Polarization

DC Short Circuit at Input

High Return Loss

Applications

Antenna Ranges

Antenna Gain Measurements

System Setup

PDF

Outline

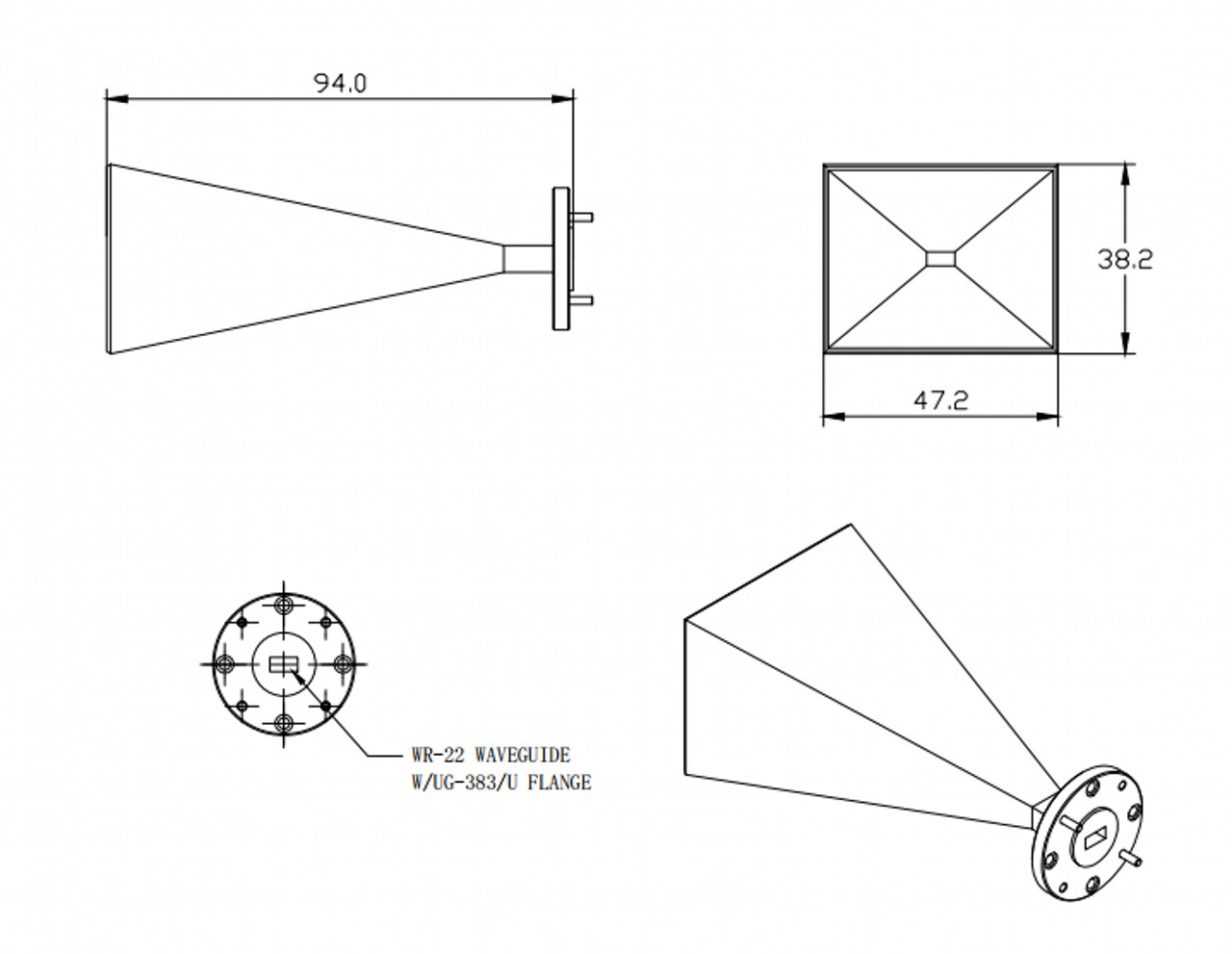

OLB 22 23 outline 23 dBi Gain, 33 GHz to 50 GHz, WR-22 Waveguide Millimeter SGH Antenna

Plot

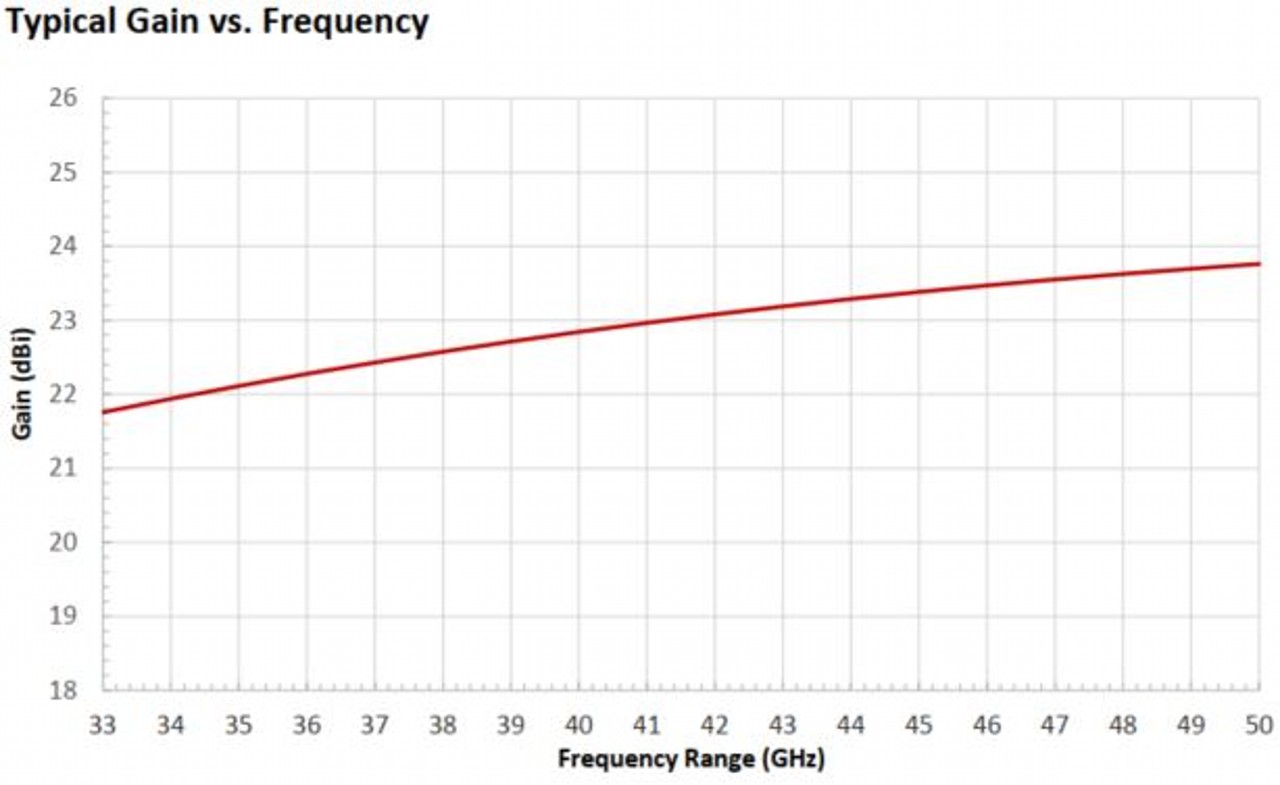

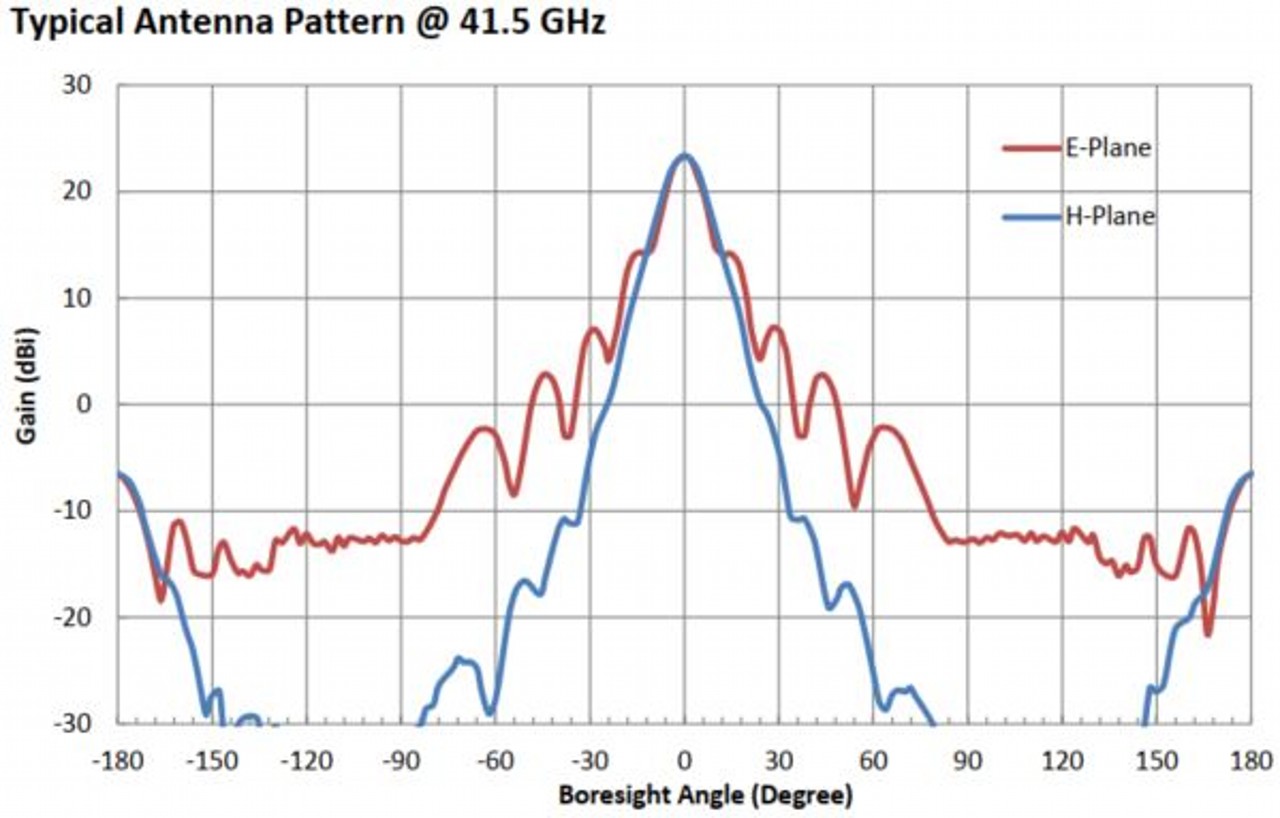

OLB 22 23 plot1 23 dBi Gain, 33 GHz to 50 GHz, WR-22 Waveguide Millimeter SGH AntennaOLB 22 23 plot2 23 dBi Gain, 33 GHz to 50 GHz, WR-22 Waveguide Millimeter SGH Antenna
