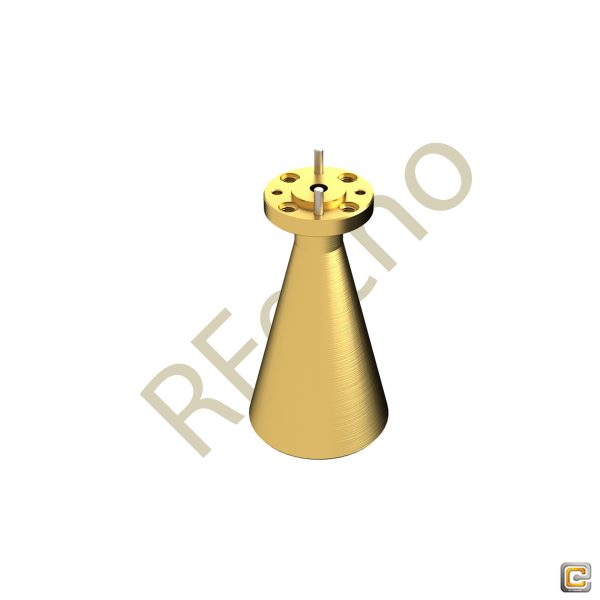

23 dBi Gain, 68 GHz to 77 GHz, 0.125″ Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn Antennas

$749

Frequency: 68-77GHz
Gain: 23dBi.
Waveguide: WR-125
Side Lobes,E-Plane,H-plane: -20,-28
Flange: UG-387/U-M flange
Band Type: E Band
Return Loss: 23dB
Diameter: 0.125Inch
The OCN-125-23 Conical Horn Antennas is suitable for Antenna Ranges,Feed Horns and System Setups.

SKU: OCN-125-23 Categories: Conical Horn Antennas, RF Antenna

Description

Conical Horn Antennas

23 dBi Gain, 68 GHz to 77 GHz, 0.125″ Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn Antennas

OCN-125-23

Model OCN-125-23 is a E Band conical horn antenna that operates from 68 GHz to 77 GHz. The antenna offers 23 dB nominal gain and a typical half power beamwidth of 11 degrees on the E-plane and 13 degrees on the H-plane.

The horn also offers typical side lobes of 20 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.125 diameter circular waveguide with UG-387/U-M flange.

Property

Value

Min. Frequency (GHz)

68

Max. Frequency (GHz)

77

Gain(dBi)

23

3 dB Beamwidth, E-plane

11°

3 dB Beamwidth, H-plane

13°

Side Lobes, E-Plane (dB)

20

Side Lobes, H-Plane (dB)

28

Return Loss (dB)

23

Waveguide

WR-125

Band Type

E Band

Flange

UG-387/U-M flange

Diameter (Inch)

0.125

VSWR

1.15:1

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear and Circular Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

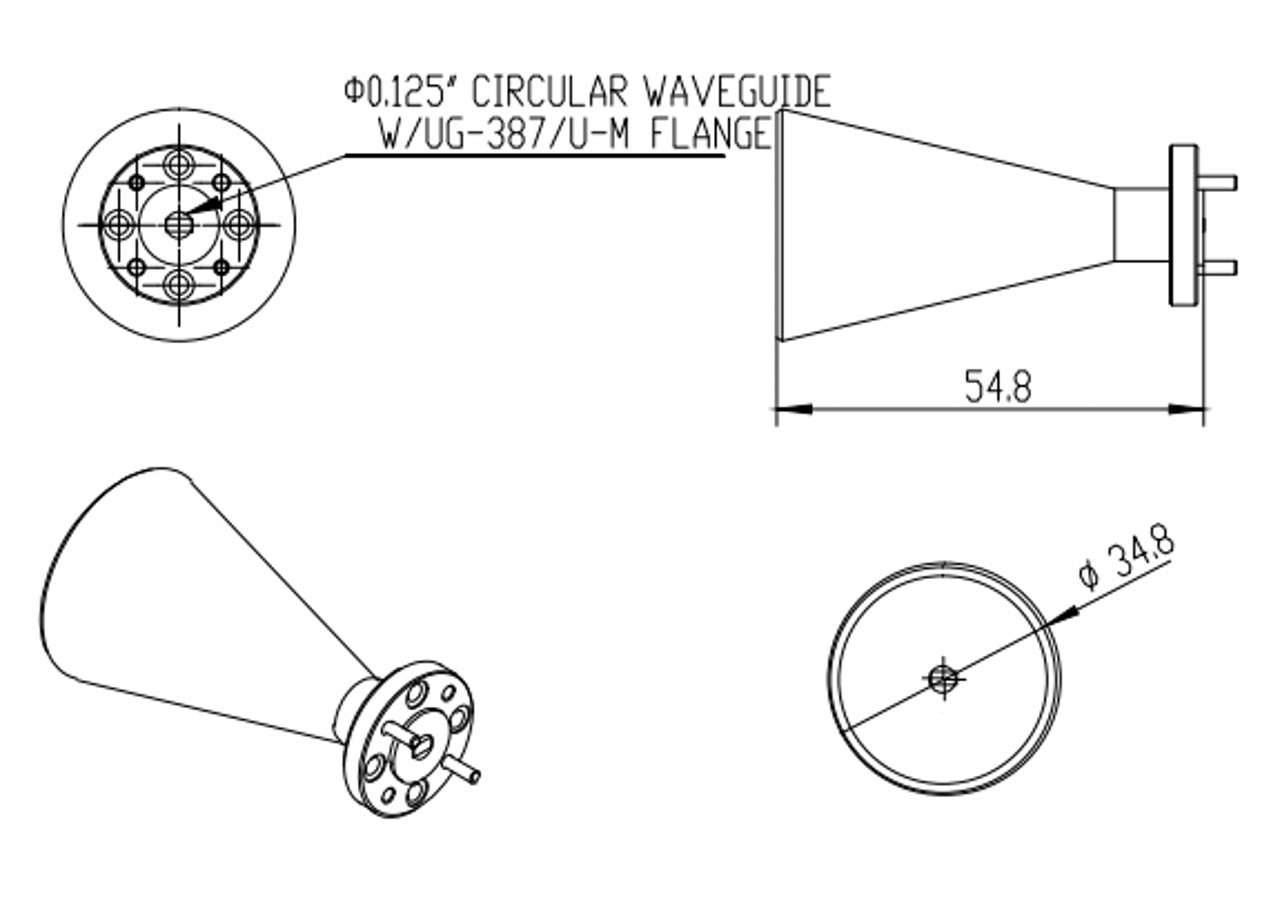

23 dBi Gain, 68 GHz to 77 GHz, 0.125″ Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn Antennas-Outline

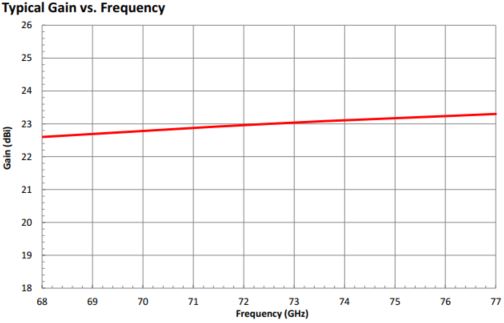

23 dBi Gain, 68 GHz to 77 GHz, 0.125″ Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn Antennas-Plot

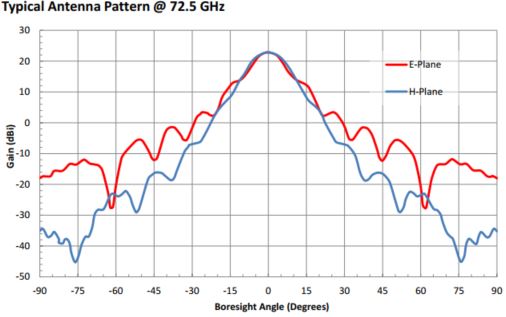

23 dBi Gain, 68 GHz to 77 GHz, 0.125″ Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn Antennas-Plot

Additional information

Min. Frequency (GHz)

68

Max. Frequency (GHz)

77

Gain (dBi)

23

Waveguide

WR-125

VSWR

1.15:1

Side Lobes, H-Plane (dB)

-28

Side Lobes, E-Plane (dB)

-20

Flange

UG-387/U-M Flange

Band Type

E Band

Return Loss (dB)

23

Diameter (inch)

0.125
