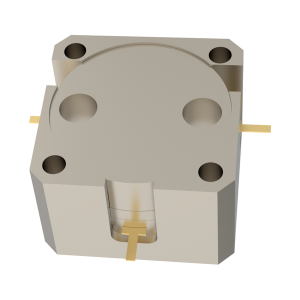

3.4 GHz to 3.6 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, Drop-in Series Circulators OHYH531A-3400-3600
Embedded stripline design
High isolation up to 20dB
Low insertion loss of 0.30dB
Broad operating temperature range from -40 to +85 degC
High power handling capability up to 100W
- Description
- Datasheet

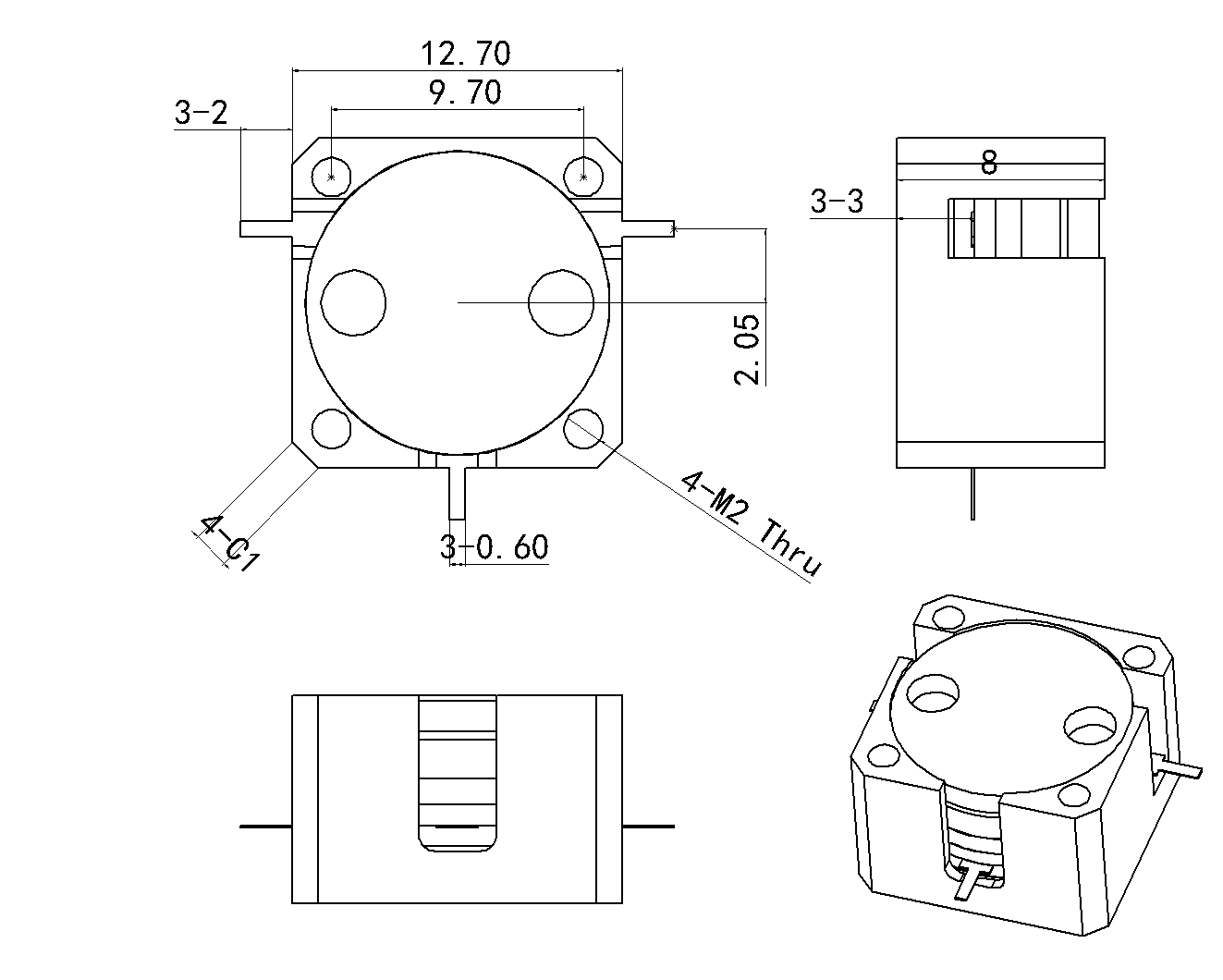

- Outline
- Reviews (0)
Description
The product named OHYH531A-3400-3600 is high-performance Stripline Products: Embedded Circulator designed for telecommunications applications, featuring robust performance and reliable signal isolation.
OHYH531A-3400-3600 | |
| 3.4 GHz to 3.6 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, Drop-in Series Circulators OHYH531A-3400-3600 | |
Property | Value |
| Frequency (MHz) | 3400-3600 |
| Return Loss (dB) | 20 |
| Isolation (dB) | 20 |
| Insertion Loss (dB) | 0.3 |
| IMD3 (dBc) | -65 |
| Power (W) | 2 |
| Operating Temp ( degC) | -40 to 85 |
Features | |
| Embedded stripline design | |
| High isolation up to 20dB | |
| Low insertion loss of 0.30dB | |
| Broad operating temperature range from -40 to +85 degC | |
| High power handling capability up to 100W | |
Applications | |
| Designed for telecommunications applications, featuring robust performance and reliable signal isolation. | |
