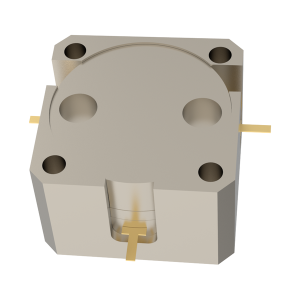

OH531A Drop-in Circulator

← Back to circulator catalogDrop-in RF circulator

4500–5000 MHz · 0.40 dB insertion loss max.
18 dB isolation min. · 100 W

OH531A-4500-5000

SKU: OHYH531A-4500-5000 Categories: Circulators, Drop-In Series Circulators

Description

Technical specifications

4500–5000 MHzFrequency range
0.40 dB max.Insertion loss
18 dB min.Isolation
Frequency range
4500–5000 MHz
Insertion loss
0.40 dB maximum
Isolation
18 dB minimum
Return loss
18 dB minimum
Power rating
100 W
IMD3
−60 dBc at 2 × 10 W
Operating temperature
−40 to +85 °C
Body dimensions
12.70 × 12.70 × 8.00 mm
Mounting holes
4 × M2 through; 9.70 mm pitch
RF tab height above base
3.0 ± 0.3 mm
RF tab width / extension
0.60 mm / 2.0 ± 0.3 mm

Circulator details

OH531A  —  4500–5000 MHz  —  Three-port drop-in circulator

The OH531A-4500-5000 is an embedded stripline circulator with three RF tab connections. The specified insertion loss is 0.40 dB maximum, with isolation and return loss of 18 dB minimum.

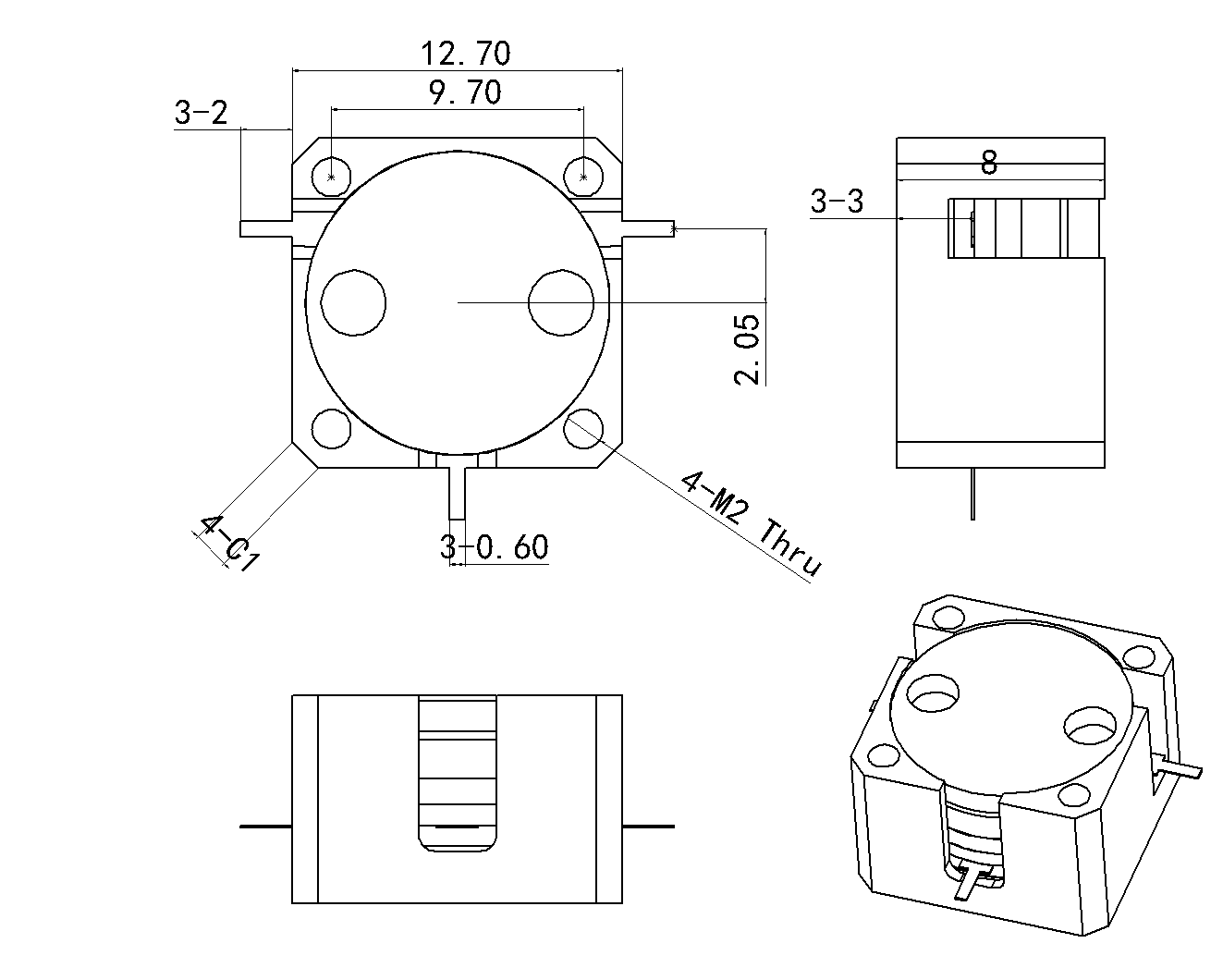

Mechanical outline

OH531A solid orthographic dimension views
Top, side, front and isometric views. Dimensions in mm; RF tab height: 3.0 ± 0.3 mm above the base.

Frequency-remapped performance illustrations

S11

S11 frequency-remapped illustration

S11 marker data · frequency-remapped
Frequency (MHz) Magnitude (dB)
4500 -22.9990
5000 -32.2540

S21

S21 frequency-remapped illustration

S21 marker data · frequency-remapped
Frequency (MHz) Magnitude (dB)
4500 -0.2069
5000 -0.1990

S22

S22 frequency-remapped illustration

S22 marker data · frequency-remapped
Frequency (MHz) Magnitude (dB)
4500 -21.4400
5000 -24.7660

S12

S12 frequency-remapped illustration

S12 marker data · frequency-remapped
Frequency (MHz) Magnitude (dB)
4500 -26.0390
5000 -31.0090

Product datasheet

Full specifications, solid mechanical dimensions and frequency-remapped performance illustrations.

Download PDF datasheet

OH531A Drop-in Circulator-Outline
