33GHz-50GHz ,VSWR(Max):1.06, Waveguide Load 82502

33GHz-50GHz ,VSWR(Max):1.06, Waveguide Load 82502

The waveguide load frequency covers 500GHz, with complete matching loads, excellent performance, small voltage standing  wave ratio and power up to 30KW. The basic materials are copper, aluminum and stainless steel, and the surface treatment methods include gold plating, silver plating, nickel plating, passivation and conductive oxidation.

The application information includes: waveguide load is necessaryfor checking the working ability andverification of various microwaveimpedance measuring instruments(including panoramic voltagestandingwave coefficient (KCBH)measuring instruments),and can be customized according tocustomer requirements.

SKU: 82502 Categories: Load, Passive Devices, Waveguide Load

Description

SPEC

Waveguide Load

33GHz-50GHz ,VSWR(Max):1.06, Waveguide Load

82502

The waveguide load frequency covers 500GHz, with complete matching loads, excellent performance, small voltage standing  wave ratio and power up to 30KW. The basic materials are copper, aluminum and stainless steel, and the surface treatment methods include gold plating, silver plating, nickel plating, passivation and conductive oxidation.

The application information includes: waveguide load is necessaryfor checking the working ability andverification of various microwaveimpedance measuring instruments(including panoramic voltagestandingwave coefficient (KCBH)measuring instruments),and can be customized according tocustomer requirements.

Property

Value

Min. Frequency (GHz)

33

Max. Frequency (GHz)

50

waveguide

WR22

VSWR(Max)

1.06

Features

Rich product types

The frequency covers 500GHz

Can be customized according to user needs

PDF

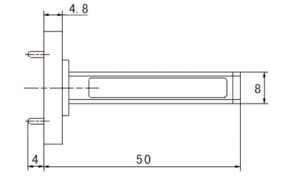

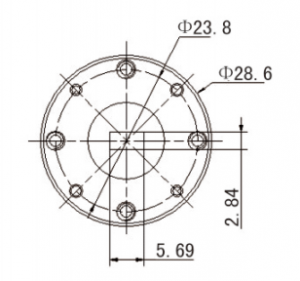

Outline

33GHz-50GHz ,VSWR(Max):1.06,  Waveguide Load   8250233GHz-50GHz ,VSWR(Max):1.06,  Waveguide Load   82502

Additional information

Min. Frequency (GHz)

33

Max. Frequency (GHz)

50

VSWR(Max)

1.06

Waveguide

WR-22
