4.0 GHz to 18 GHz Rejection ≥60 dB @ DC – 3.5 GHz High Pass Cavity Filter

4.0 GHz to 18 GHz Rejection ≥60 dB @ DC – 3.5 GHz High Pass Cavity Filter

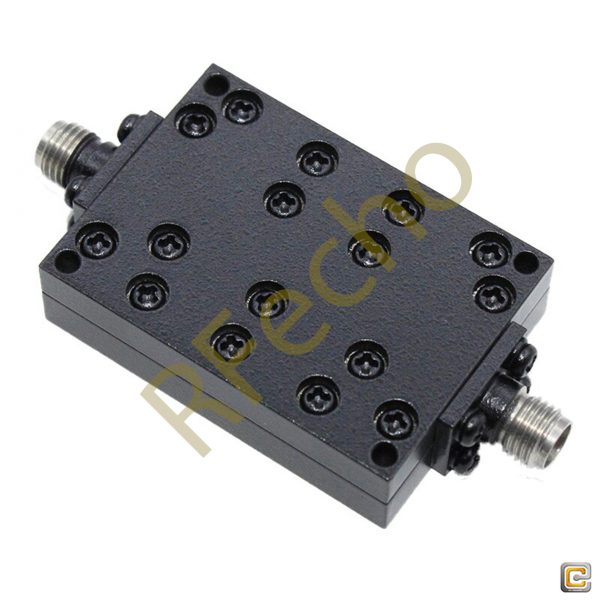

OHP-4000-18000:

  • Cut Off Frequency: 4.0GHz,
  • Pass Band Frequency: 4-18GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 1.6,
  • Rejection: ≥60 dB @ DC – 3.5 GHz.



SKU: OHP-4000-18000 Categories: , Tag:

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. More Cavity Filters…

High Pass Filter (OHP) – OHP-4000-18000:

  • Cut Off Frequency: 4.0GHz,
  • Pass Band Frequency: 4-18GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 1.6,
  • Rejection: ≥60 dB @ DC – 3.5 GHz.

Outline

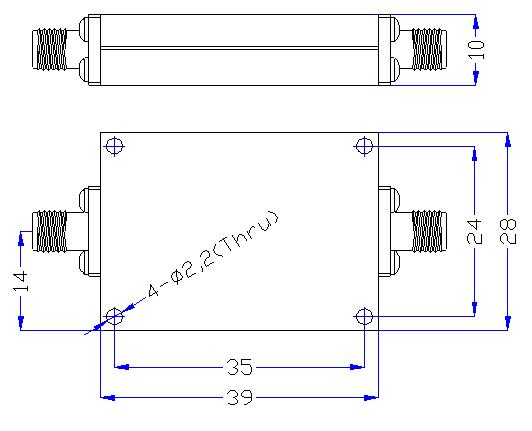

4.0 GHz to 18 GHz Rejection ≥60 dB @ DC - 3.5 GHz High Pass Cavity Filter 01

Plot

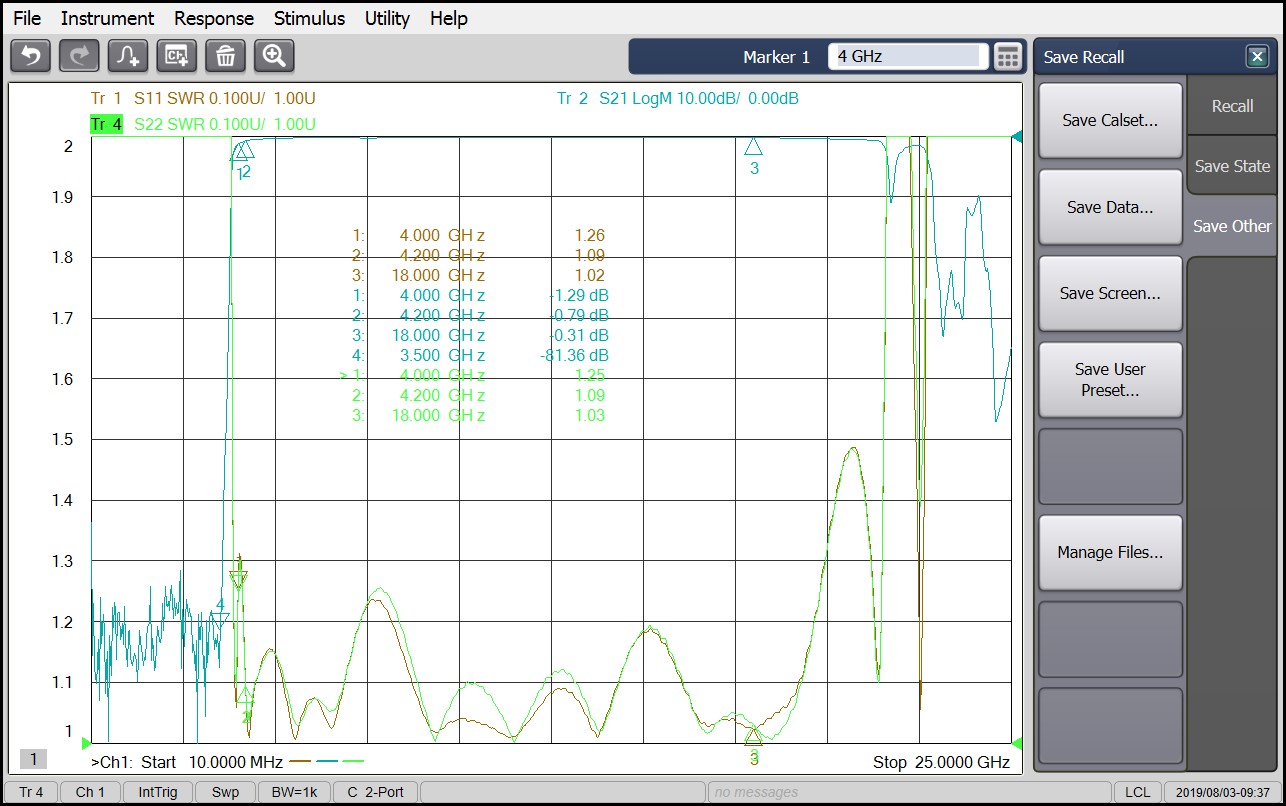

4.0 GHz to 18 GHz Rejection ≥60 dB @ DC - 3.5 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.035 kg
Min. Pass Band Frequency (GHz)

Max. Pass Band Frequency (GHz)

Connection Type

Power Handling (W)

Insertion Loss

VSWR

≤1.6:1

Rejection

Impedance (Ω)

Surface Finish
