4.8 GHz to 5 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, SMD Series Circulators OH107C-4800-5000
High isolation
Low insertion loss
Compact surface mount package
Wide operating temperature range
Excellent power handling capabilities
- Description
- Datasheet

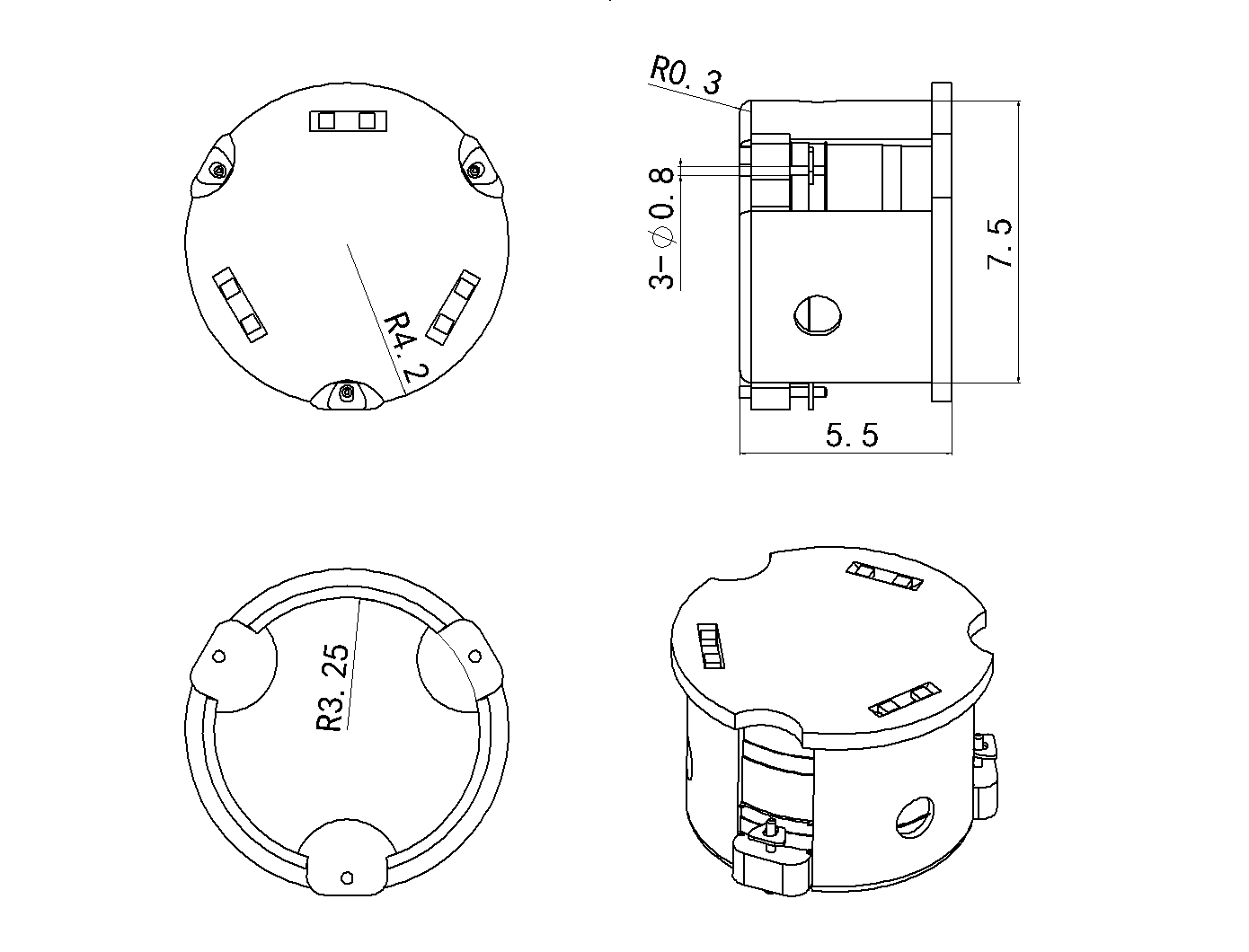

- Outline
- Reviews (0)
Description

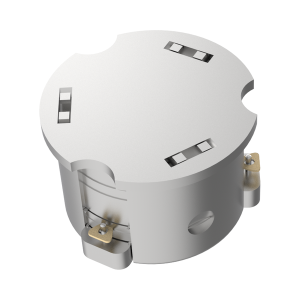

The product named OH107C-4800-5000 is high-performance stripline surface mount circulator designed for high-reliability telecommunication applications.
OH107C-4800-5000 | |
| 4.8 GHz to 5 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, SMD Series Circulators OH107C-4800-5000 | |
Property | Value |
| Frequency (MHz) | 4800-5000 |
| Return Loss (dB) | 22 |
| Isolation (dB) | 22 |
| Insertion Loss (dB) | 0.25 |
| IMD3 (dBc) | -60 |
| Power (W) | 2 |
| Power note | 2*5W |
| Operating Temp ( degC) | 5 to 22 |
Features | |
| High isolation | |
| Low insertion loss | |
| Compact surface mount package | |
| Wide operating temperature range | |
| Excellent power handling capabilities | |
Applications | |
| Designed for robust performance in communication systems. | |
