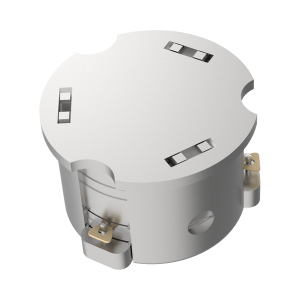

6.425 GHz to 7.125 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators OH107C-6425-7125
High isolation
Low insertion loss
Compact surface mount package
Wide operating temperature range
Excellent power handling capabilities
- Description
- Datasheet

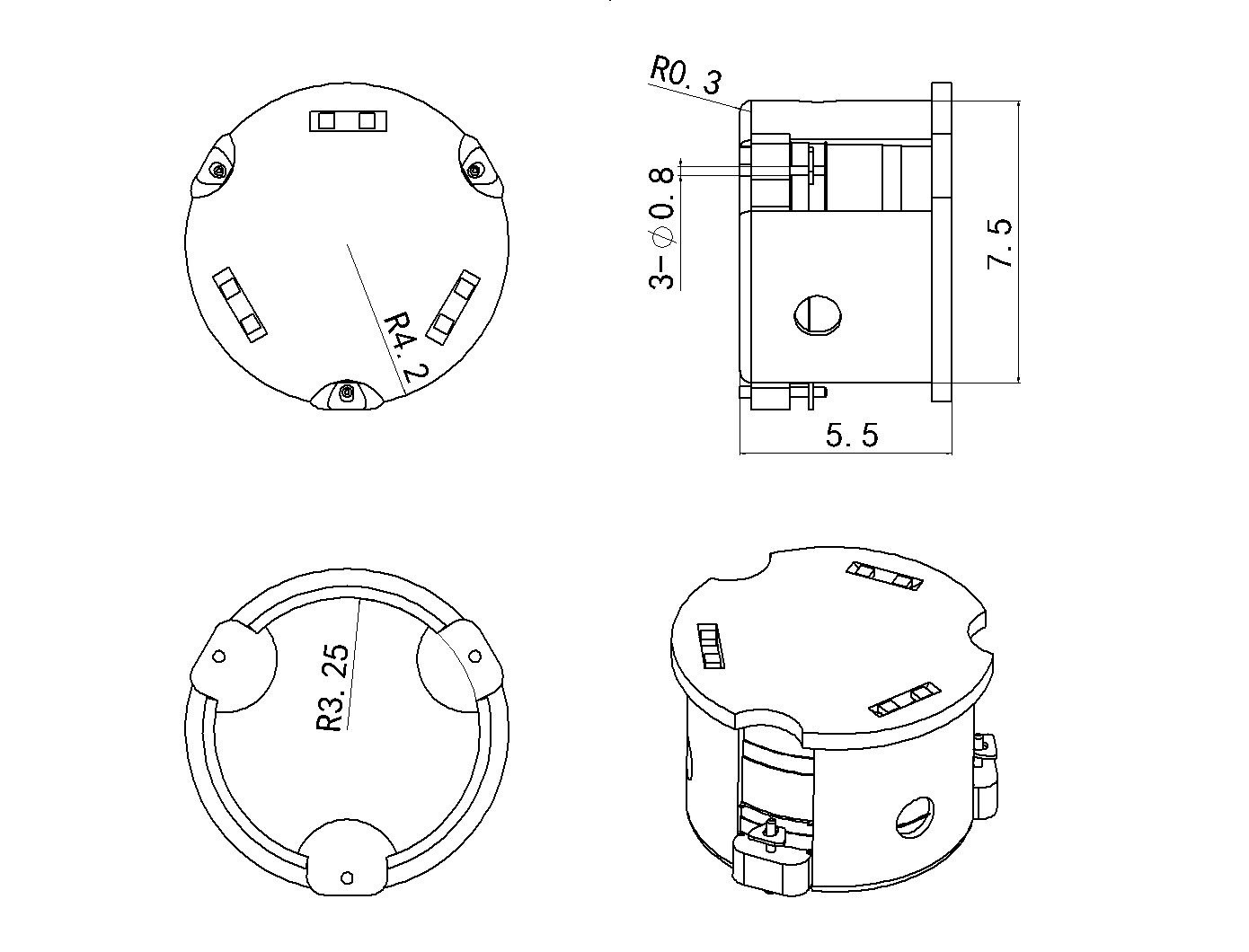

- Outline
- Reviews (0)
Description
The product named OH107C-6425-7125 is high-performance stripline surface mount circulator designed for high-reliability telecommunication applications.
OH107C-6425-7125 | |
| 6.425 GHz to 7.125 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators OH107C-6425-7125 | |
Property | Value |
| Frequency (MHz) | 6425-7125 |
| Return Loss (dB) | 20 |
| Isolation (dB) | 20 |
| Insertion Loss (dB) | 0.3 |
| IMD3 (dBc) | -60 |
| Power (W) | 2 |
| Power note | 2*5W |
| Operating Temp ( degC) | 5 to 20 |
Features | |
| High isolation | |
| Low insertion loss | |
| Compact surface mount package | |
| Wide operating temperature range | |
| Excellent power handling capabilities | |
Applications | |
| Designed for robust performance in communication systems. | |
Reviews
There are no reviews yet.
