45 dBi Gain with Amplifier, 0.68 GHz to 10 GHz, Active Directional Antenna -A (f 380 MHz)
Ultra high gain ACTIVE directional antenna. Wide frequency range from 0.68 GHz to 10 GHz. This antenna offers the nominal gain of 45 dBi and the connection type is SMA socket (18GHz) or N socket. Optional laser, compass etc. Every antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality gold coating, a high-tech antenna-case (radome)which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and a SMA connector (18 GHz version) with twist protection. All antennas include a complete high resolution (10 MHz steps!) calibration data set with up to 533 calibration points (on CD).
This offers the ability to make a very accurate measurement with any Spectrum Analyzer. All antennas are developed, individually produced and calibrated. This guarantees highest standard so that we can offer every customer a full 10 years warranty for all antennas.
- Description
- Additional information
- Reviews (0)
Description
SPEC
Active Directional Antenna -A (f 380 MHz) |
|
45 dBi Gain with Amplifier, 0.68 GHz to 10 GHz, Active Directional Antenna -A (f 380 MHz) |
|
OLP-680M-100-A |
|
Ultra high gain ACTIVE directional antenna. Wide frequency range from 0.68 GHz to 10 GHz. This antenna offers the nominal gain of 45 dBi and the connection type is SMA socket (18GHz) or N socket. Optional laser, compass etc. Every antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality gold coating, a high-tech antenna-case (radome)which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and a SMA connector (18 GHz version) with twist protection. All antennas include a complete high resolution (10 MHz steps!) calibration data set with up to 533 calibration points (on CD). This offers the ability to make a very accurate measurement with any Spectrum Analyzer. All antennas are developed, individually produced and calibrated. This guarantees highest standard so that we can offer every customer a full 10 years warranty for all antennas. |
|
Property |
Value |
Min. Frequency (GHz) |
0.68 |
Max. Frequency (GHz) |
10 |
Gain(dBi) |
45 |
Impedance (?) |
50 |
VSWR (Typ.) |
<1:2,5 |
Connection Type |
SMA socket (18GHz) or N socket |
Tripod Connection (in.) |
1/4 |
Features |
|
Ultra high gain for detecting even lowest RF sources |
|
Integrated Low Noise Preamplifier incl. LiPo battery |
|
Runs with battery or external power supply (included) |
|
Integrated calibration data on EEprom (readout via USB) |
|
Special designed radome for perfect antenna protection |
|
Gold coatingfor stable performance? Wide bandwidth |
|
Coverage of various mobile radio frequency ranges |
|
Applications |
|
ISM434, LTE800, ISM868, GSM900, GSM1800, GSM1900 |
|
UMTS?Universal Mobile Telecommunications System? |
|
DECT?Digital Enhanced Cordless Telecommunications? |
|
Bluetooth? WiFi?WLAN?Microwave, LTE2.6, WiMAX, 5GHz WLAN |
Outline

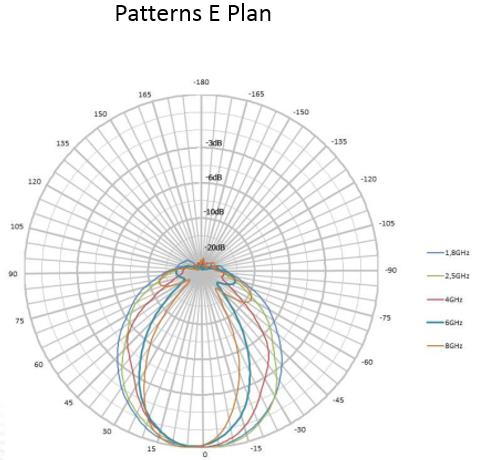

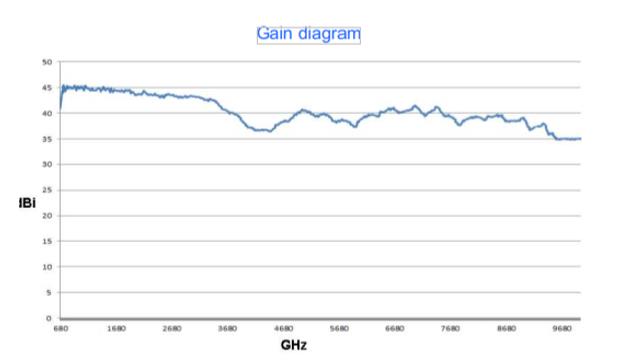

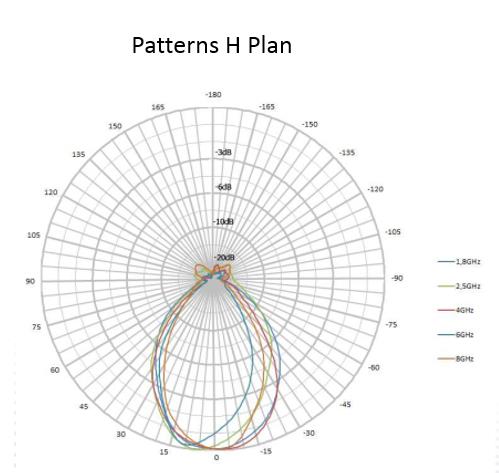

Plot
Additional information
Min. Frequency (GHz) | 0.68 |
---|---|
Max. Frequency (GHz) | 10 |
Gain (dBi) | 45 |
Connection Type | |
Impedance (Ω) | |
Net Weight (Kg) |
