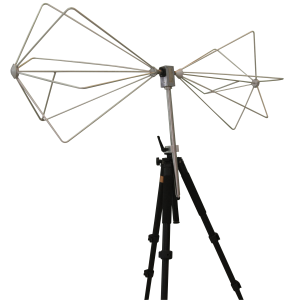

45 MHz to 450 MHz, N Female, OBC-45M450M-10W-1 EMC Biconical Antenna

45 MHz to 450 MHz, N Female, OBC-45M450M-10W-1 EMC Biconical Antenna

$1490

Biconical antenna is a vertically polarized omnidirectional antenna. Its frequency range is 45 MHz to 450 MHz. Its pattern stability is better. Biconical antenna model OBC-45M450M-10W-1 is used for transmission and immunity test to meet various EMC standards. Its broadband characteristics make it an ideal choice for a wide range of EMI testing applications, including demonstrating compliance with FCC, CE, MIL-STD, RTCADO-160, and other requirements.

SKU: OBC-45M450M-10W-1 Categories: Biconical Antenna, EMC Antenna, EMC-Biconical Antenna, RF Antenna

Description

SPEC

Biconical antenna is a vertically polarized omnidirectional antenna. Its frequency range is 45 MHz to 450 MHz. Its pattern stability is better. Biconical antenna model OBC-45M450M-10W-1 is used for transmission and immunity test to meet various EMC standards. Its broadband characteristics make it an ideal choice for a wide range of EMI testing applications, including demonstrating compliance with FCC, CE, MIL-STD, RTCADO-160, and other requirements.

OBC-45M450M-10W-1 biconical EMC broadband antenna has a durable aluminum alloy, and we powder coated them to improve corrosion resistance.OBC-45M450M-10W-1 model is used for radiation and immunity testing to meet various EMC standards. The broadband characteristic of the biconical antenna makes it an ideal choice for scanning measurement and automatic measurement systems. Biconical antennas can be used for many applications, in which half-wave dipoles have been used traditionally. An enormous reduction of measurement time can be achieved because the time-consuming tuning of the antenna elements to the half-wavelength is not needed, an important condition for swept broadband.

Electrical Specifications

45 MHz to 450 MHz, N Female

OBC-45M450M-10W-1

Property

Value

Min. Frequency (MHz)

45

Max. Frequency (MHz)

450

Impedance (?)

50

Power Handling (W)

10

Balun Type Transform Ratio

1:1

Connection Type

N Female

Features

Low Return Loss

Linear gain with frequency

EMC and EMI testing

Radio Link Testing

Applications

Broadband RX-Antenna for Emission Testing

TX-Antenna for Immunity testing

Specially designed at low frequencies

PDF

Outline

Biconical Antenna 45 MHz to 450 MHz for EMI/EMC Testing

Additional information

Min. Frequency (MHz)

45

Max. Frequency (MHz)

450

Impedance (Ω)

50

Power Handling (W)

10

Max. Output Power (mW), AM

NA

Min. Gain (dBi)

NA

Max. Gain (dBi)

NA

Balun Type Transform Ratio

1:1

Connection Type

N Female
