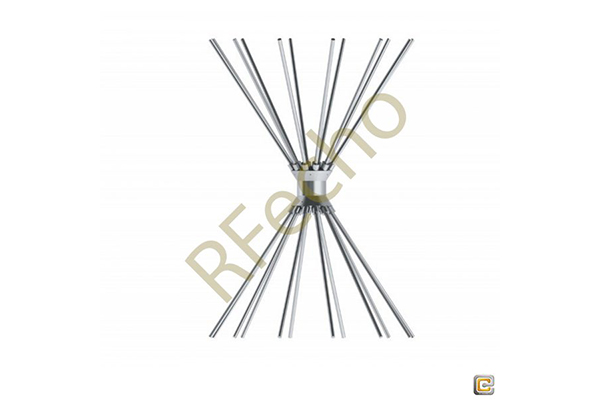

450 MHz to 1000 MHz, N Female, EMC Biconical Antenna-RFecho

$1590

The OBC-450M1000M-200W is a vertically polarized omnidirectional antenna with a frequency range of 450 MHz to 1000 MHz, known for its improved pattern stability. This model is constructed from durable aluminum alloy and is powder-coated to enhance its corrosion resistance, ensuring longevity and robust performance. Its broadband design allows for efficient scanning measurements and automatic measurement systems. This design significantly reduces measurement time, a critical factor for swept broadband operations. Additionally, the antenna features low return loss and linear gain with frequency, ensuring stable and consistent performance.

The OBC-450M1000M-200W is ideal for a variety of applications. First of all, this model is commonly used for EMC compliance of devices operating within the UHF spectrum, such as telecommunications equipment, industrial electronics, and certain consumer electronics, providing essential coverage for devices in the mid-range UHF band, crucial for various communication systems. In telecommunications and broadcasting, this antenna supports testing for a wide variety of systems, including cellular networks, UHF TV broadcasting, two-way radios, and public safety communications. It is particularly effective for ensuring proper functionality in mobile networks, TV channels, and emergency communication systems like police, fire, and ambulance services. The OBC-450M1000M-200W is extensively used for testing public safety communications and military radios, including systems used for police, firefighter, and tactical communications. In industrial applications, it is also employed for testing wireless utility meters, remote monitoring systems, and other wireless industrial devices operating within the UHF spectrum. It ensures that these industrial electronics and utility systems comply with necessary standards. Lastly, this model supports narrowband and wideband testing, focusing on systems that may not require the same bandwidth as higher-frequency devices, making it ideal for testing a wide variety of communication and industrial systems.https://www.rfecho.com/product-category/emc-antenna/

SKU: OBC-450M1000M-200W Categories: Biconical Antenna, EMC Antenna, EMC-Biconical Antenna, RF Antenna

Description

The OBC-450M1000M-200W is a vertically polarized omnidirectional antenna with a frequency range of 450 MHz to 1000 MHz, known for its improved pattern stability. This model is constructed from durable aluminum alloy and is powder-coated to enhance its corrosion resistance, ensuring longevity and robust performance. Its broadband design allows for efficient scanning measurements and automatic measurement systems. This design significantly reduces measurement time, a critical factor for swept broadband operations. Additionally, the antenna features low return loss and linear gain with frequency, ensuring stable and consistent performance.

The OBC-450M1000M-200W is ideal for a variety of applications. First of all, this model is commonly used for EMC compliance of devices operating within the UHF spectrum, such as telecommunications equipment, industrial electronics, and certain consumer electronics, providing essential coverage for devices in the mid-range UHF band, crucial for various communication systems. In telecommunications and broadcasting, this antenna supports testing for a wide variety of systems, including cellular networks, UHF TV broadcasting, two-way radios, and public safety communications. It is particularly effective for ensuring proper functionality in mobile networks, TV channels, and emergency communication systems like police, fire, and ambulance services. The OBC-450M1000M-200W is extensively used for testing public safety communications and military radios, including systems used for police, firefighter, and tactical communications. In industrial applications, it is also employed for testing wireless utility meters, remote monitoring systems, and other wireless industrial devices operating within the UHF spectrum. It ensures that these industrial electronics and utility systems comply with necessary standards. Lastly, this model supports narrowband and wideband testing, focusing on systems that may not require the same bandwidth as higher-frequency devices, making it ideal for testing a wide variety of communication and industrial systems.https://www.rfecho.com/product-category/emc-antenna/

Electrical Specifications

450 MHz to 1000 MHz, N Female

OBC-450M1000M-200W

Property

Value

Min. Frequency (MHz)

450

Max. Frequency (MHz)

1000

Impedance (?)

50

Power Handling (W)

200

Balun Type Transform Ratio

NA

Connection Type

N Female

Features

Low Return Loss

Linear gain with frequency

EMC and EMI testing

Radio Link Testing

Applications

Broadband RX-Antenna for Emission Testing

TX-Antenna for Immunity testing

Specially designed at low frequencies

Biconical Antenna 450 MHz to 1000 MHz for EMI/EMC Testing

Additional information

Min. Frequency (MHz)

450

Max. Frequency (MHz)

1000

Impedance (Ω)

50

Power Handling (W)

200

Max. Output Power (mW), AM

NA

Min. Gain (dBi)

NA

Max. Gain (dBi)

NA

Balun Type Transform Ratio

NA

Connection Type

N Female
