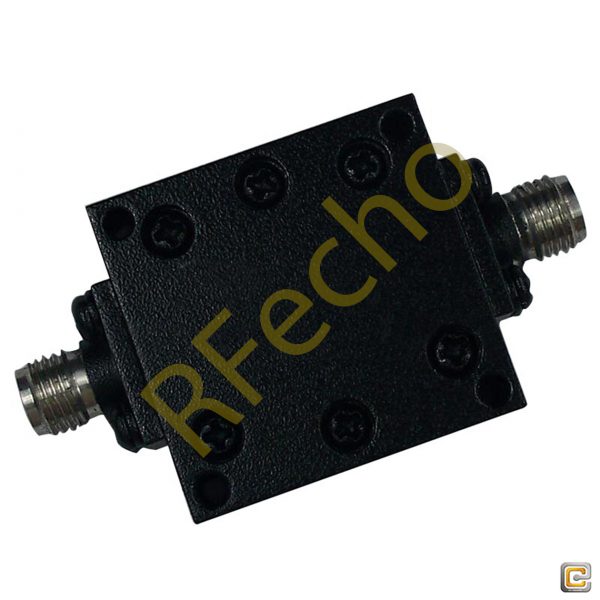

5.5 GHz to 16 GHz Rejection ≥45 dB @ DC-4.25 GHz High Pass Cavity Filter

5.5 GHz to 16 GHz Rejection ≥45 dB @ DC-4.25 GHz High Pass Cavity Filter

OHP-5500-16000:

  • Cut Off Frequency: 5GHz,
  • Pass Band Frequency: 5.5-16GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 2.0,
  • Rejection: ≥45 dB @ DC-4.25 GHz.
SKU: OHP-5500-16000 Categories: , Tag:

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. More Cavity Filters…

High Pass Filter (OHP) – OHP-5500-16000:

  • Cut Off Frequency: 5.0GHz,
  • Pass Band Frequency: 5.5-16GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 2.0,
  • Rejection: ≥45 dB @ DC-4.25 GHz.

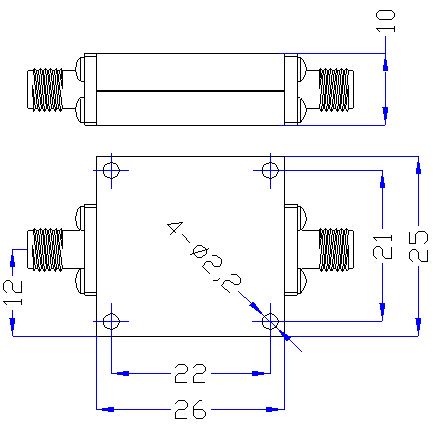

Outline

5.5 GHz to 16 GHz Rejection ≥45 dB @ DC-4.25 GHz High Pass Cavity Filter 01

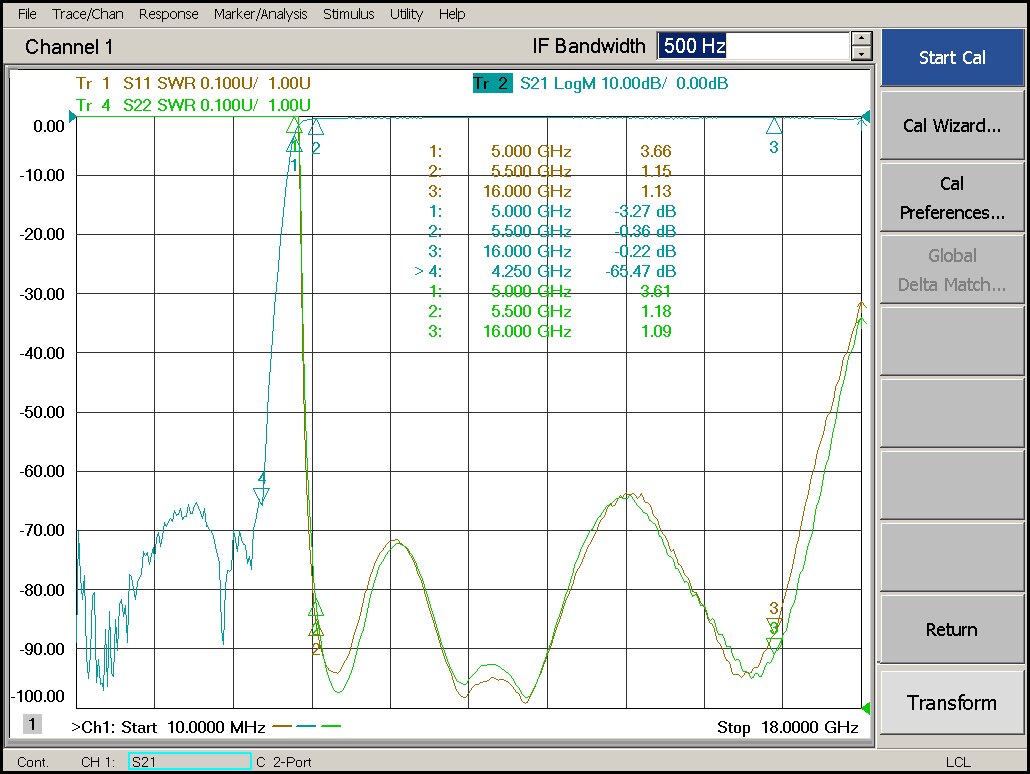

Plot

5.5 GHz to 16 GHz Rejection ≥45 dB @ DC-4.25 GHz High Pass Cavity Filter 02

PDF

Additional information

Min. Pass Band Frequency (GHz)

Max. Pass Band Frequency (GHz)

Connection Type

Power Handling (W)

Insertion Loss

VSWR

≥45dB @ DC~4.25GHz

Rejection

Impedance (Ω)

Surface Finish
