5 to 10 GHz, SPI Ultra-Low Phase Noise Frequency Synthesizer – OTFS35Y-10
- Output frequency range: 5–10 GHz
- Frequency step: 0.1 mHz
- Frequency switching time: ≤20 ms typical
- Output power: ≥9 dBm
The OTFS35Y-10 is a ultra-low phase noise frequency synthesizer with an output frequency range of 5 to 10 GHz. Control interface: SPI. Reference frequency: 10 MHz. The frequency step is 0.1 mHz. Frequency switching time: ≤20 ms typical. Output power: ≥9 dBm. Dimensions: 100 × 90 × 18 mm. Weight: ≤0.5 kg. Operating temperature: 0 to +50 °C.
- Description
- Datasheet

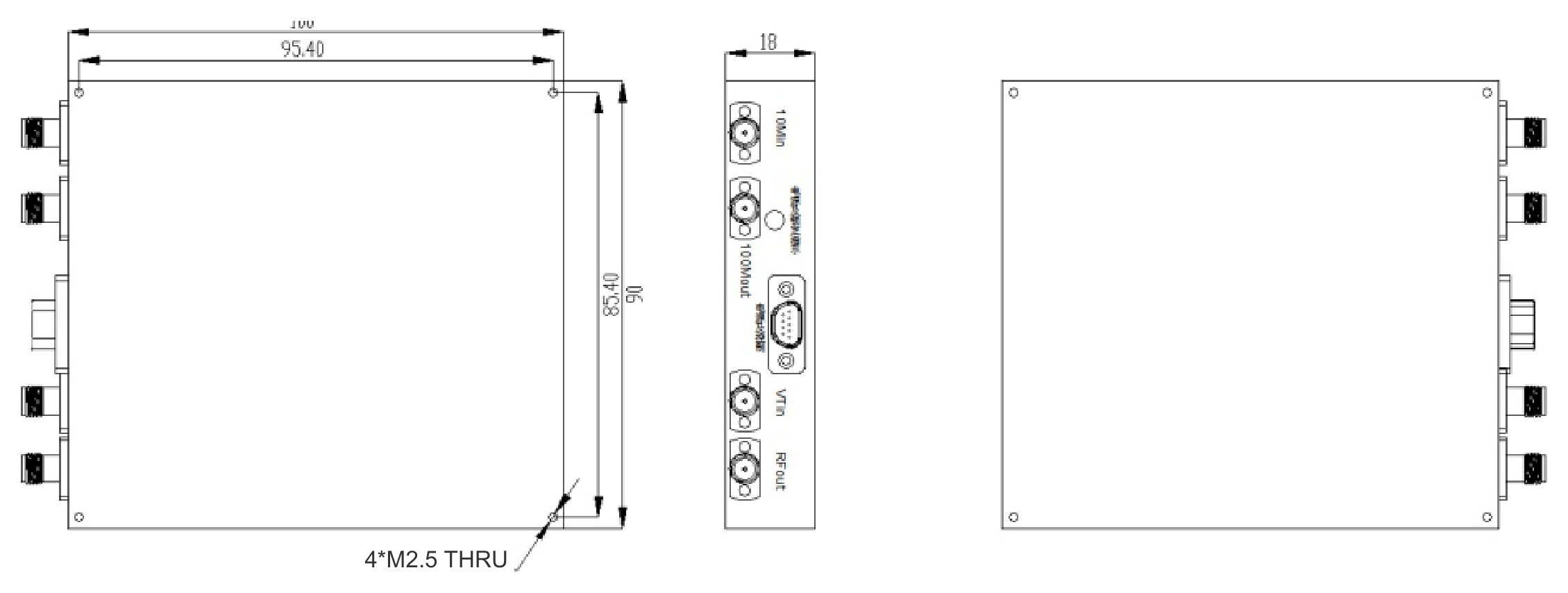

- Outline
- Reviews (0)
Description
The OTFS35Y-10 is a ultra-low phase noise frequency synthesizer with an output frequency range of 5 to 10 GHz. Control interface: SPI. Reference frequency: 10 MHz. The frequency step is 0.1 mHz. Frequency switching time: ≤20 ms typical. Output power: ≥9 dBm. Dimensions: 100 × 90 × 18 mm. Weight: ≤0.5 kg. Operating temperature: 0 to +50 °C.
| OTFS35Y-10 | |
| 5 to 10 GHz, SPI Ultra-Low Phase Noise Frequency Synthesizer – OTFS35Y-10 | |
| Property | Value |
|---|---|
| Output frequency range | 5–10 GHz |
| Frequency step | 0.1 mHz |
| Frequency switching time | ≤20 ms typical |
| Output power | ≥9 dBm |
| Frequency stability | ±0.2 ppm (internal reference) |
| Spurious level | ≤-75 dBc typical; ≤-70 dBc maximum |
| Harmonic level | ≤-10 dBc |
| Reference frequency | 10 MHz |
| Reference input power | 7 ±3 dBm |
| Reference phase noise | ≤-150 dBc/Hz at 100 Hz offset; ≤-158 dBc/Hz at 1 kHz offset; ≤-160 dBc/Hz at 10 kHz offset; ≤-160 dBc/Hz at 100 kHz offset; ≤-160 dBc/Hz at 1 MHz offset |
| Supply voltage | +12 V ±0.5 V; maximum +15 V |
| Supply current | ≤2.2 A startup; 1.95 A steady state |
| Control interface | SPI |
| Operating temperature | 0 to +50 °C |
| Storage temperature | -20 to +70 °C |
| Dimensions | 100 × 90 × 18 mm |
| Weight | ≤0.5 kg |
| Clock output | 100 MHz; ≥10 dBm; spurious level ≤-80 dBc; harmonic level ≤-30 dBc |
| Clock phase noise | ≤-135/-167/-178/-180/-180 dBc/Hz at 100 Hz offset/1 kHz/10 kHz/100 kHz/1 MHz offsets |
| Sweep input | YIG sweep voltage input (VT) |
| RF output connector | Removable SMA-K |
| Reference/clock/VT connectors | Removable SMA-K |
| Power/control connector | J30J-9-ZKP |
| Internal reference | Built-in low-phase-noise, high-stability crystal oscillator |
| Phase Noise (dBc/Hz) | |
| 5 GHz | 100 Hz offset: ≤-101; 1 kHz offset: ≤-126; 10 kHz offset: ≤-135; 100 kHz offset: ≤-135; 1 MHz offset: ≤-144 |
| 10 GHz | 100 Hz offset: ≤-95; 1 kHz offset: ≤-122; 10 kHz offset: ≤-130; 100 kHz offset: ≤-130; 1 MHz offset: ≤-140 |
| Features | |
| |
