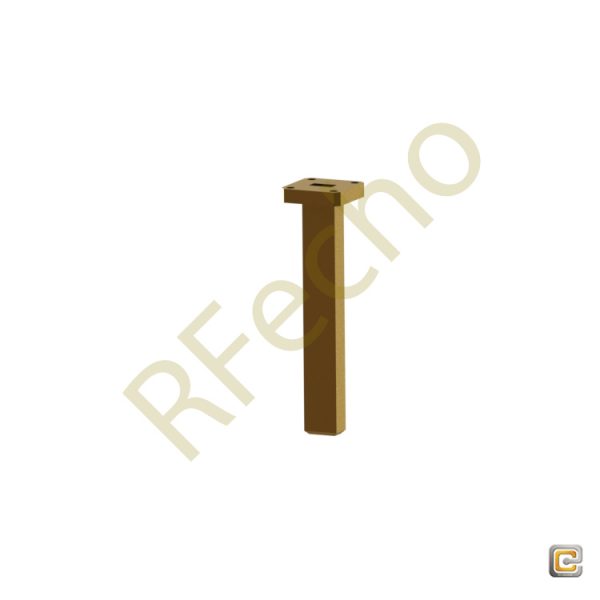

6.5 dBi Gain, 22 GHz to 33 GHz, WR-34 Waveguide Probe Antenna

$550

Frequcncy: 22-33GHz
Gain: 6.5dBi.
VSWR: 2:1Typ.
Used for 5G and satellite communication.
OPRO-34 Waveguide Probe Antenna is also heavily utilized in weather and environmental monitoring
Waveguide Probe Antenna is essential for high-capacity data links

SKU: OPRO-34 Categories: Probe Antennas, RF Antenna

Description

Probe Antenna

6.5 dBi Gain, 22 GHz to 33 GHz, WR-34 Waveguide Probe Antenna

OPRO-34

The OPRO-34 Band Probe Antenna operates over a broad frequency range from 22 GHz to 33 GHz. With a nominal gain of 6.5 dBi, this probe antenna provides reliable performance with a half-power beamwidth (HPBW) of 115 degrees on the E-plane and 60 degrees on the H-plane. Designed to support linear polarized waveforms, the OPRO-34 features a WR-34 waveguide input, ensuring efficient signal transmission. It also offers excellent sidelobe suppression, with -10 dB on the E-plane and -14 dB on the H-plane, minimizing interference and enhancing signal clarity.

The OPRO-34 is a critical component in several advanced applications. Firstly, this model is particularly used for 5G and satellite communication. Operating within the K-band and Ka-band, it plays a vital role in 5G networks and high-frequency satellite communication links, ensuring high-speed data transfer and reliable connectivity. This antenna is also heavily utilized in weather and environmental monitoring, where weather radar systems collect atmospheric data, providing accurate environmental sensing. In military and aerospace radar, the OPRO-34 supports precise long-range detection and tracking systems, crucial for defense and aerospace communication. Additionally, this antenna is essential for high-capacity data links, supporting microwave backhaul and high-bandwidth communication, particularly in urban areas where fast data transmission is necessary. Furthermore, the antenna’s application extends to Earth observation and remote sensing technologies, making it indispensable for satellite-based environmental studies and monitoring Earth’s surface and atmosphere.Probe Antenna https://www.rfecho.com/product-category/rf-antenna/probe-antennas/

Property

Value

Min. Frequency (GHz)

22

Max. Frequency (GHz)

33

Gain(dBi)

6.5

Waveguide

WR-34

Polarization

Linear

HPBW 3 dB Beamwidth (E-Plane)

115

HPBW 3 dB Beamwidth (H-Plane)

60

Side Lobes, E-Plane (dB)

-10

Side Lobes, H-Plane (dB)

-14

VSWR

2:1

Band Type

NA

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

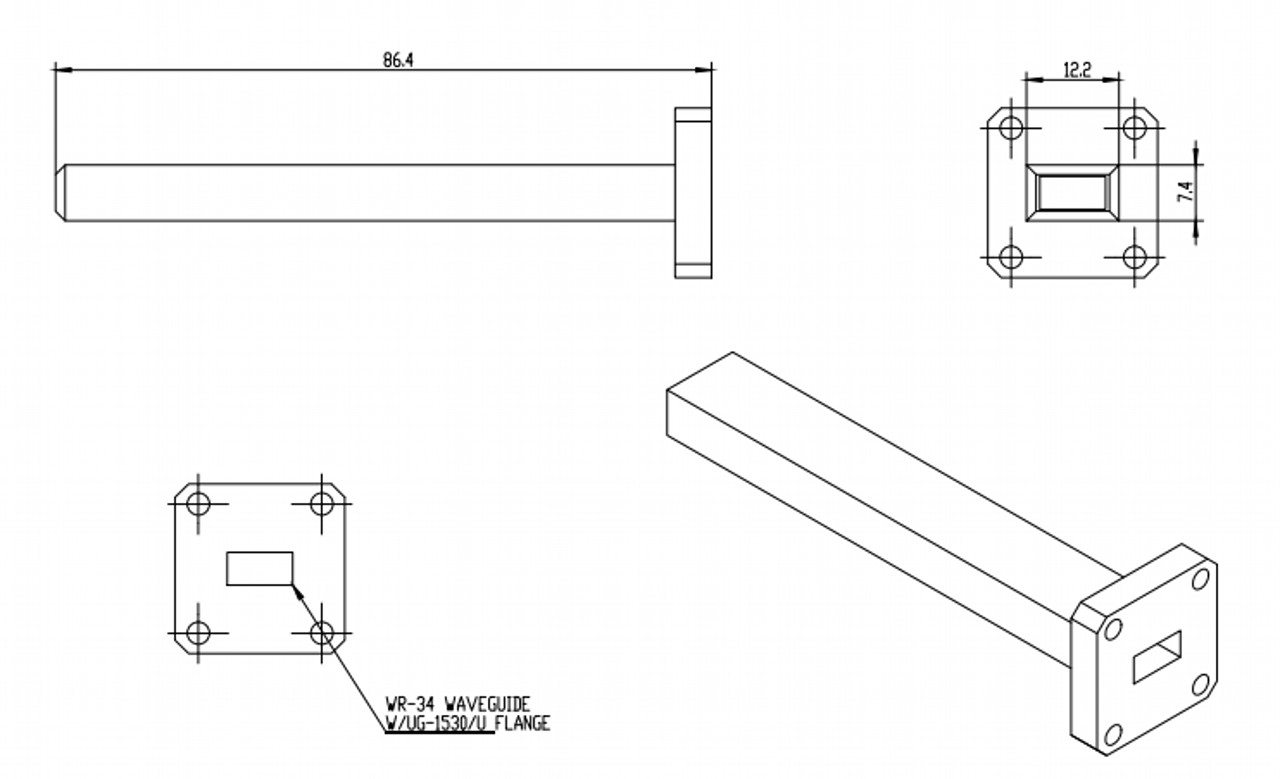

6.5 dBi Gain, 22 GHz to 33 GHz, WR-34 Waveguide Probe Antenna-Outline

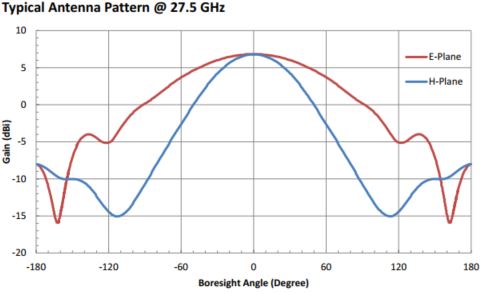

6.5 dBi Gain, 22 GHz to 33 GHz, WR-34 Waveguide Probe Antenna-Plot

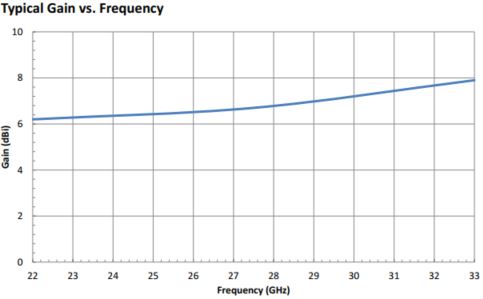

6.5 dBi Gain, 22 GHz to 33 GHz, WR-34 Waveguide Probe Antenna-Plot

Additional information

Weight 1 kg
Dimensions 26 × 11.5 × 14.5 cm
Min. Frequency (GHz)

22

Max. Frequency (GHz)

33

Gain (dBi)

6.5

VSWR

2:01

HPBW 3 dB Beamwidth (E-Plane)

115

HPBW 3 dB Beamwidth (H-Plane)

60

Waveguide

WR-34

Polarization

Linear

Band Type

NA

Side Lobes, E-Plane (dB)

-10

Side Lobes, H-Plane (dB)

-14
