6.5 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Probe Antenna

$550

Frequcncy: 26.5-40GHz
Gain: 6.5dBi.
VSWR: 2:1Typ.
Used in Ka-Band satellite communication,military radar and aircraft communication
OPRO-28 Waveguide Probe Antenna is crucial for delivering high data rates
Circular Waveguide Interface
High Return Loss

SKU: OPRO-28 Categories: Probe Antennas, RF Antenna

Description

Probe Antenna

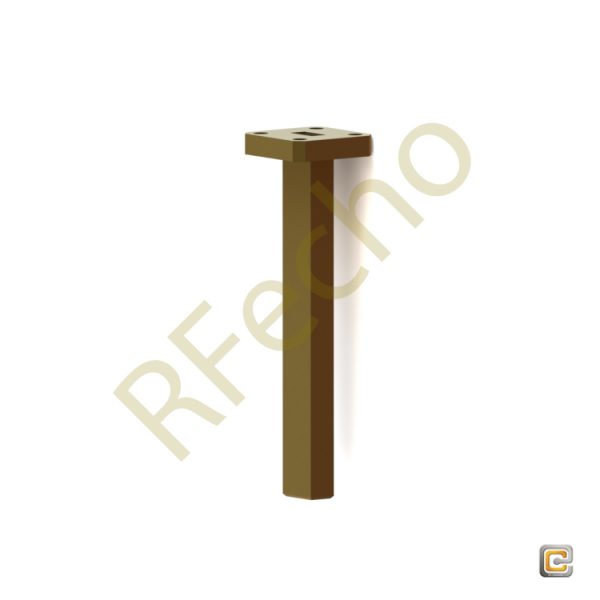

6.5 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Probe Antenna

OPRO-28

The OPRO-28 Probe Antenna operates over the 26.5 GHz to 40 GHz frequency range. This antenna provides a nominal gain of 6.5 dBi, offering excellent performance with a typical half-power beamwidth (HPBW) of 115 degrees on the E-plane and 60 degrees on the H-plane. Designed to support linear polarized waveforms, the OPRO-28 features an WR-28 waveguide input, ensuring efficient signal transmission. It also offers excellent sidelobe suppression, with -10 dB on the E-plane and -14 dB on the H-plane, minimizing interference and enhancing signal clarity.

The OPRO-28 operates within the Ka-band, making it essential for a wide range of high-frequency applications. First of all, it is widely used in Ka-Band satellite communication, supporting high-frequency satellite services such as satellite internet, TV broadcasting, and telemetry. The antenna is also crucial for delivering high data rates, which is why it’s particularly well-suited for high-throughput satellites. Additionally, this design is integral to 5G mmWave technology, enabling high-speed mobile networks in urban areas. In military and aerospace applications, the antenna is frequently used for military radar and aircraft communication, supporting secure communication links and precise target tracking. The OPRO-28 is also applied in automotive radar systems, where it plays a vital role in collision avoidance, adaptive cruise control, and parking assistance. These radar systems benefit from the high precision and short-range detection capabilities. Lastly, for remote sensing, it is employed in Earth observation satellites, offering detailed measurements of environmental factors such as weather monitoring, land use, and atmospheric data collection.Probe Antenna https://www.rfecho.com/product-category/rf-antenna/probe-antennas/

Property

Value

Min. Frequency (GHz)

26.5

Max. Frequency (GHz)

40

Gain(dBi)

6.5

Waveguide

WR-28

Polarization

Linear

HPBW 3 dB Beamwidth (E-Plane)

115

HPBW 3 dB Beamwidth (H-Plane)

60

Side Lobes, E-Plane (dB)

-10

Side Lobes, H-Plane (dB)

-14

VSWR

2:1

Band Type

Ka Band

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

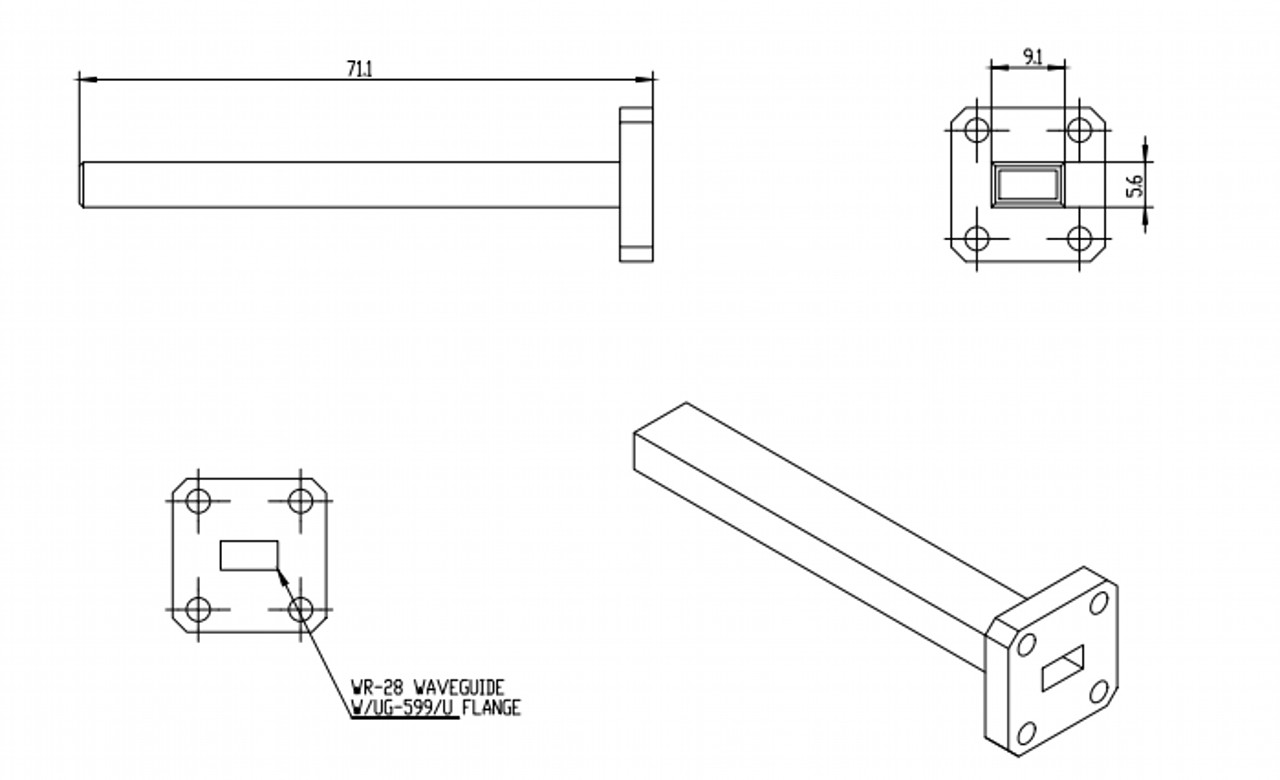

6.5 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Probe Antenna-Outline

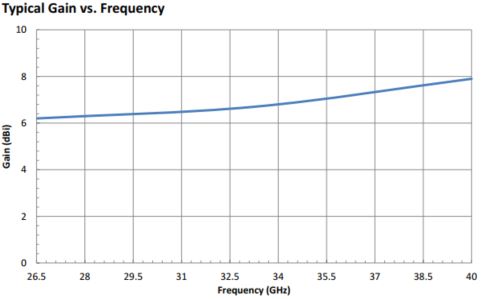

6.5 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Probe Antenna-Plot

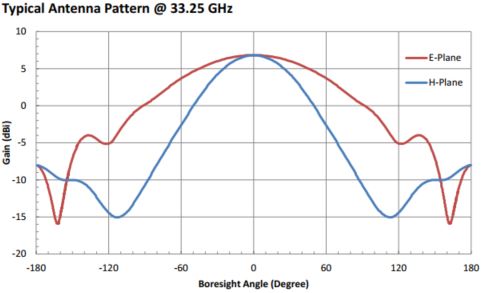

6.5 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Probe Antenna-Plot

Additional information

Weight 1 kg
Dimensions 26 × 11.5 × 14.5 cm
Min. Frequency (GHz)

26.5

Max. Frequency (GHz)

40

Gain (dBi)

6.5

VSWR

2:01

HPBW 3 dB Beamwidth (E-Plane)

115

HPBW 3 dB Beamwidth (H-Plane)

60

Waveguide

WR-28

Polarization

Linear

Band Type

Ka Band

Side Lobes, E-Plane (dB)

-10

Side Lobes, H-Plane (dB)

-14
