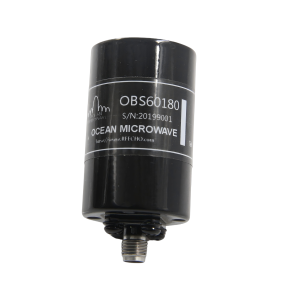

6 GHz to 18 GHz Cavity Backed Spiral Antenna OBS-60180

HOT

6 GHz to 18 GHz Cavity Backed Spiral Antenna OBS-60180

0 out of 5

$1305

The OBS-60180 is a compact, moderate gain, moderate VSWR, circularly-polarized cavity-backed spiral antenna designed to transmit and receive in the frequency band of 6.0 GHz to 18.0 GHz. The antenna exhibits an excellent impedance match and radiation pattern.

It is capable of receiving both linearly polarized signals and a circularly polarized signal.The linear gain (dBil) is about 3 dB lower than the circular gain (dBic).
The antenna has the advantages of a low profile, a planar aperture, no phase center offset, near constant beam width across the frequency band, normally symmetrical radiation beamwidth,extreme flexibility for carrying, and light weight.

The seadvant ages render the antenna a very good candidate for electronic-warfare,direction-finding, telemetry and surveillance systems, as well as flush-mounted airborne applications. The antenna can be used as a broadband feed for reflector antennas.

The antenna’s outermost dimensions are a diameter of 68mm and height of 50mm.

SKU: OBS-60180 Categories: Cavity Backed Spiral Antenna, RF Antenna

Description

SPEC

Cavity Backed Spiral Antenna

6GHz to 18GHz

OBS-60180

The OBS-60180 is a compact, moderate gain, moderate VSWR, circularly-polarized cavity-backed spiral antenna designed to transmit and receive in the frequency band of 6.0 GHz to 18.0 GHz.  The antenna exhibits an excellent impedance match and radiation pattern.

It is capable of receiving both linearly polarized signals and a circularly polarized signal. The linear gain (dBil) is about 3 dB lower than the circular gain (dBic).

The antenna has the advantages of a low profile, a planar aperture, no phase center offset, near constant beam width across the frequency band, normally symmetrical radiation beam-width, extreme flexibility for carrying, and light weight.

The seadvant ages render the antenna a very good candidate for electronic-warfare, direction-finding, telemetry and surveillance systems, as well as flush-mounted airborne applications.  The antenna can be used as a broadband feed for reflector antennas.

The antenna’s outermost dimensions are a diameter of 68mm and height of 50mm.



Applications

Satellite communications
Personal mobile communications
Electronic Warfare, Direction Finding, Telemetry and Surveillance Systems

Embedded Airborne Applications





Features

Very convenient to carry

Wide frequency band

Light Weight

small volume

Easy package

Main lobe width

With circular polarization, wide beam width



Part No.

OBS-60180

Frequency*

Nominal Gain3 dB

VSWR

Pattern

3 dB Beam-width

10 dB Beam-width

Input Impedance

Input Connector

6.0GHz-18.0GHz

-2 Typ~2 Typ2.5?1Maximum2.0:1 Typical

Directional Bean

65°Minimum?Typical

120° Typical

50 Ohms Nominal

SMA-female







PDF

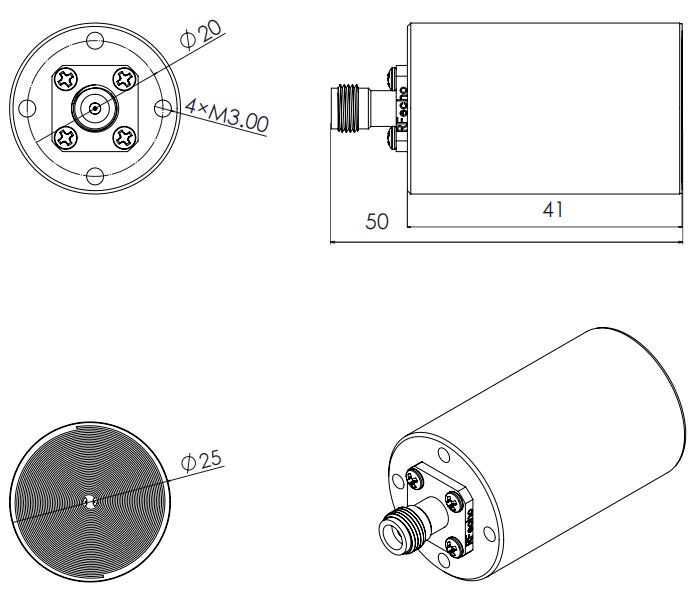

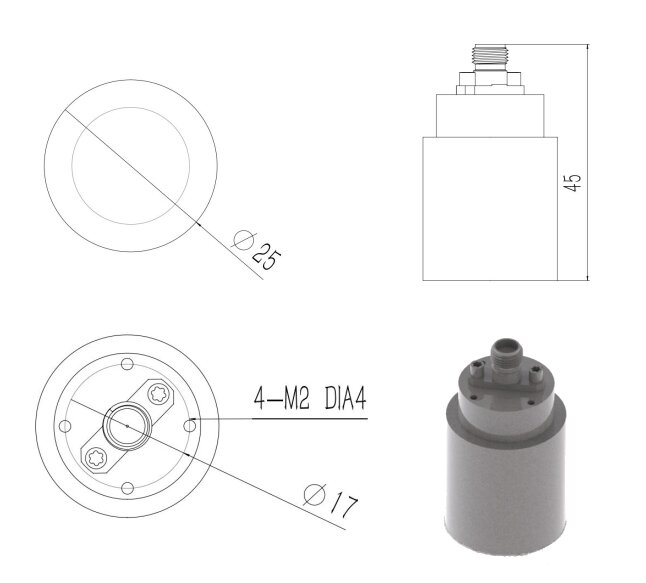

Outline

6 GHz to 18 GHz Cavity Backed Spiral Antenna OBS-60180

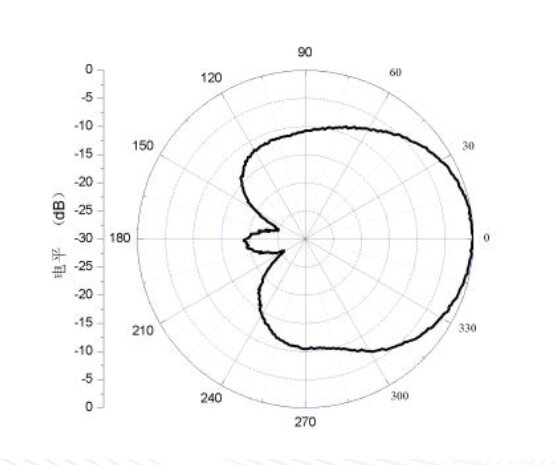

Plot

6 GHz to 18 GHz Cavity Backed Spiral Antenna OBS-601806 GHz to 18 GHz Cavity Backed Spiral Antenna OBS-60180

Additional information

Min. Frequency (GHz)

6

Max. Frequency (GHz)

18

Gain (dBi)

-2 Typ

VSWR

2.5:1

Impedance (Ω)

50

Connection Type

SMA-Female

Polarization

LHCP/RHCP
