Model OPRO-10 is a W Band Probe Antenna, operates from 75 GHz to 110 GHz. The antenna offers the nominal gain of 6.5 dBi, and 115 degrees typical half power beamwidth on the E-plane and 60 degrees typical halfpower beamwidth on the H-plane.

Probe Antenna supports linear polarized waveforms. The input of this antenna is a WR-10 waveguide. Probe antenna offers the -10 dB on E-plan side lobes and -14 dB on H-plan side lobes.

Description

SPEC

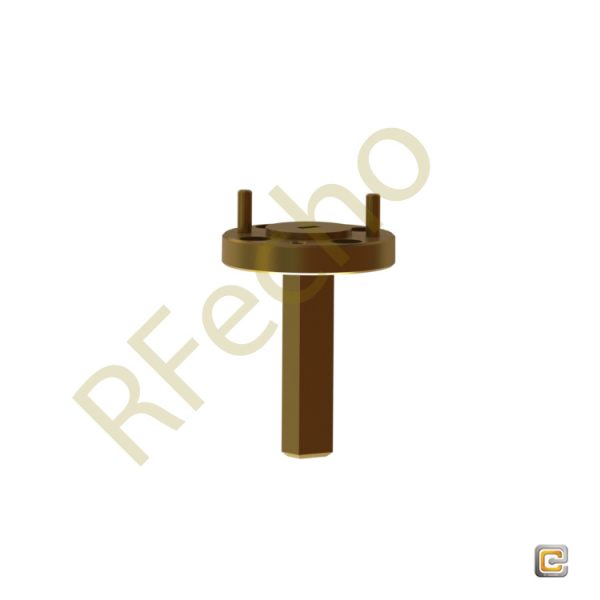

Probe Antenna

6.5 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Probe Antenna

OPRO-10

Model OPRO-10 is a W Band Probe Antenna, operates from 75 GHz to 110 GHz. The antenna offers the nominal gain of 6.5 dBi, and 115 degrees typical half power beamwidth on the E-plane and 60 degrees typical halfpower beamwidth on the H-plane.

Probe Antenna supports linear polarized waveforms. The input of this antenna is a WR-10 waveguide. Probe antenna offers the -10 dB on E-plan side lobes and -14 dB on H-plan side lobes.

Property

Value

Min. Frequency (GHz)

75

Max. Frequency (GHz)

110

Gain(dBi)

6.5

Waveguide

WR-10

Polarization

Linear

HPBW 3 dB Beamwidth (E-Plane)

115

HPBW 3 dB Beamwidth (H-Plane)

60

Side Lobes, E-Plane (dB)

-10

Side Lobes, H-Plane (dB)

-14

VSWR

2:1

Band Type

W Band

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

PDF

Outline

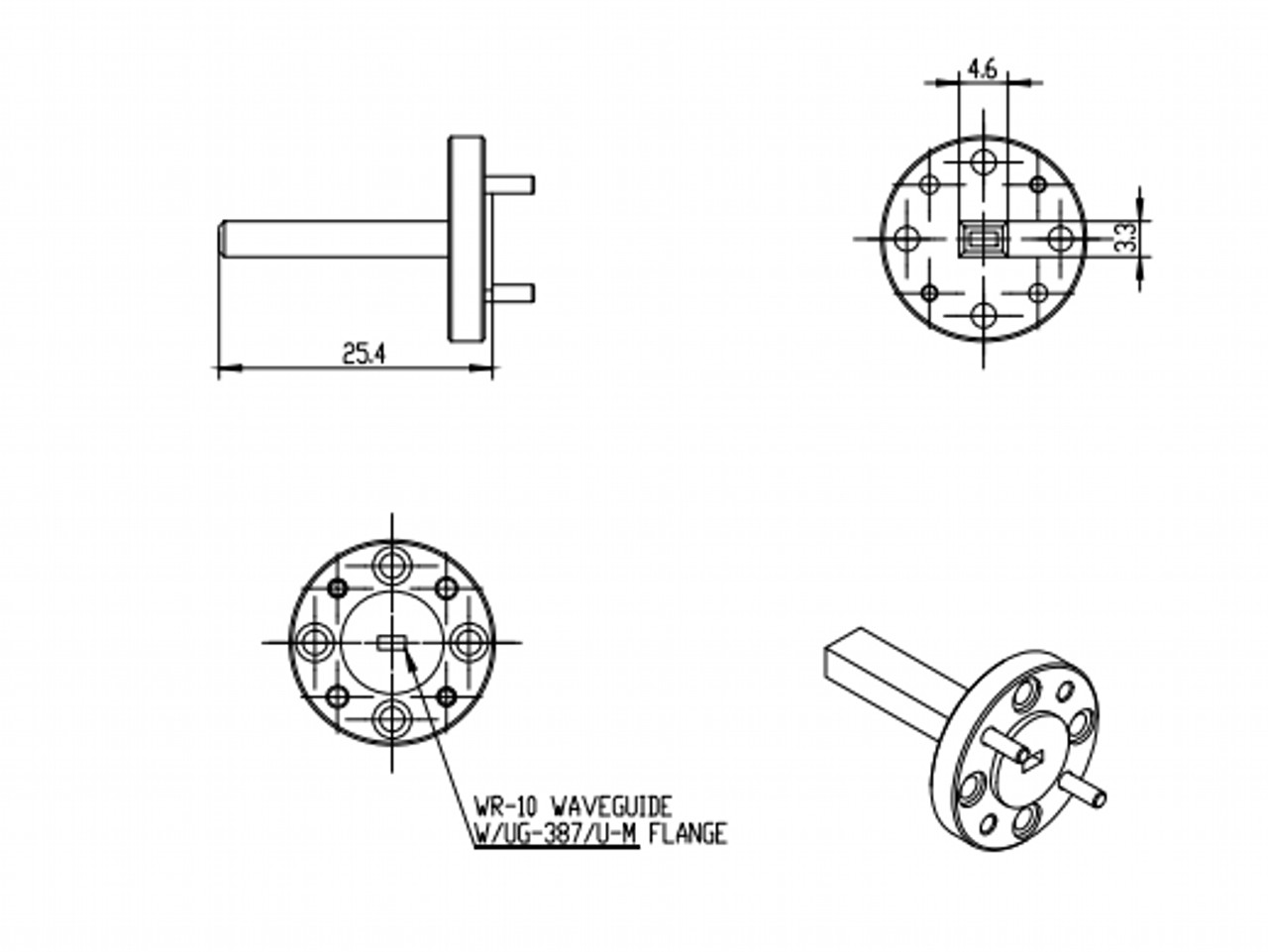

OPRO 10 outline 6.5 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Probe Antenna

Plot

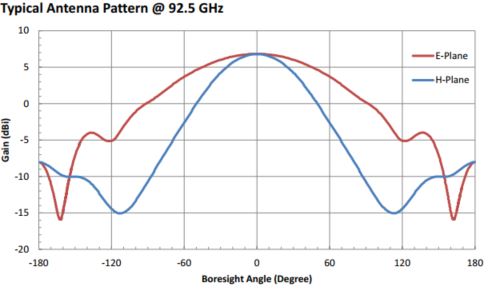

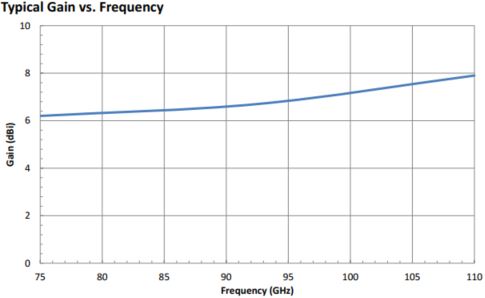

OPRO 10 plot1 6.5 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Probe AntennaOPRO 10 plot2 6.5 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Probe Antenna
