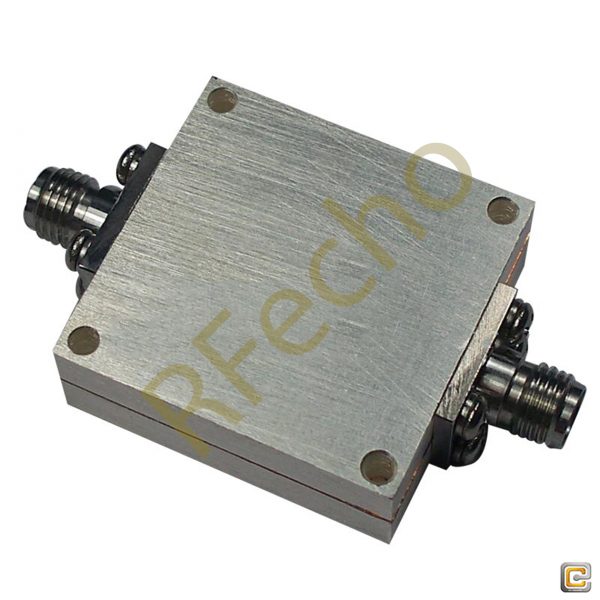

RF High Pass Microwave Filter model OHP: 6600-18000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This RF High Pass Microwave Filter Manufactured with a passband frequency from 6.6GHz to 18GHz and a Cut-off frequency 6GHz. Our RF Cavity High Pass Filter provides a nominal insertion loss of 1.5dB across its passband and a typical rejection of ≥45dB @DC- 5.1GHz. Since the high end cutoff frequency of RF High Pass Microwave Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Cavity High Pass Filter has Passband VSWR of ≤2.0:1 and power handling of ≤15W. RF High Pass Microwave Filter is manufactured with SMA Female Connector.
6.6GHz to 18GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 6.6GHz to 18GHz RF High Pass Microwave Filter is ready for shipping worldwide after purchase. Additional specs of this RF Cavity High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-6600-18000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Cavity Filter (OHP) – OHP-6600-18000:

  • Cut Off Frequency is 6GHz,
  • Pass Band Frequency is 6.6-18GHz,
  • Pass Band Insertion Loss is 1.5dB,
  • Pass Band VSWR is 2.0,
  • Rejection: ≥45 dB @ DC-5.1 GHz

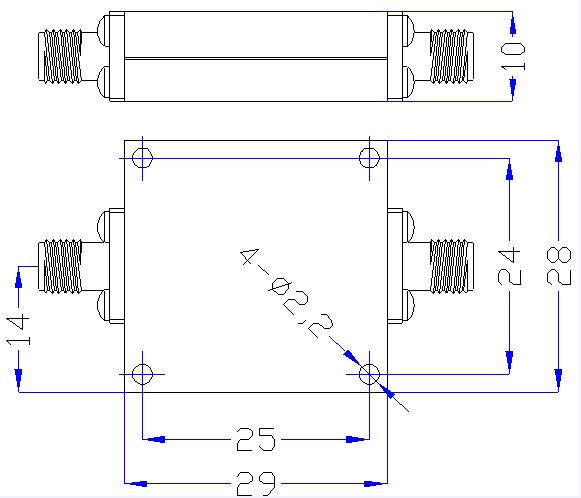

Outline

6.6 GHz to 18 GHz Rejection ≥45 dB @ DC-5.1 GHz High Pass Cavity Filter 01

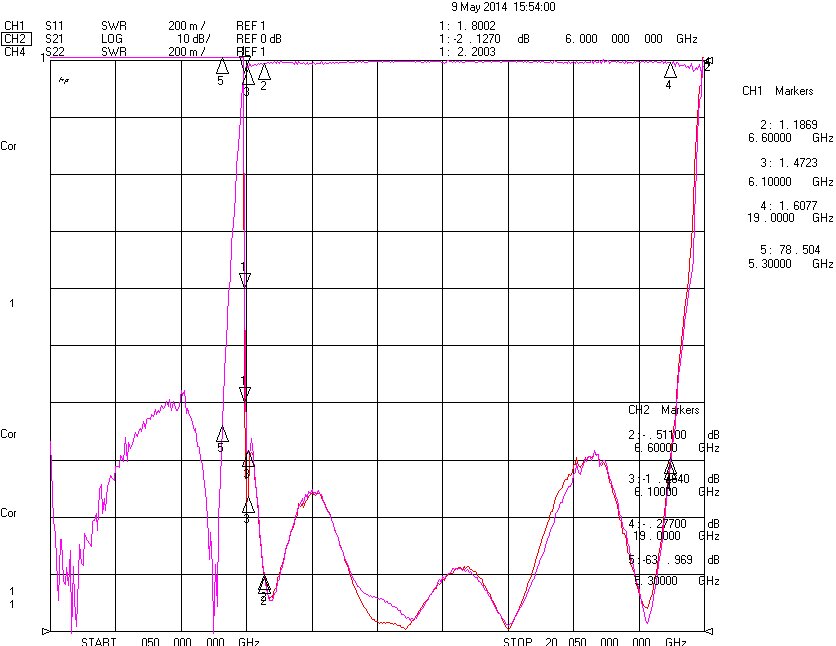

Plot

6.6 GHz to 18 GHz Rejection ≥45 dB @ DC-5.1 GHz High Pass Cavity Filter 02

PDF

Additional information

Min. Pass Band Frequency (GHz)

6.6

Max. Pass Band Frequency (GHz)

18

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

NA

VSWR

≤2.0:1

Rejection

≥45 dB @ DC-5.1 GHz

Impedance (Ω)

NA

Surface Finish

Guide Oxygen or Black Paint
