60 MHz to 600 MHz, N Female, EMC Biconical Antenna-RFecho

$1290

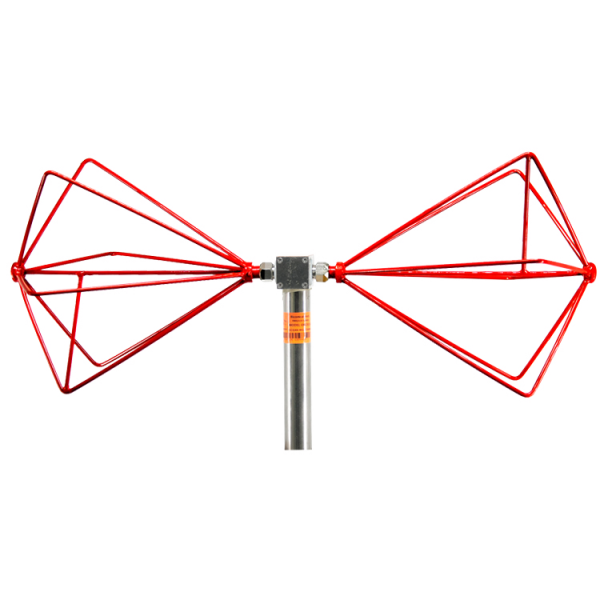

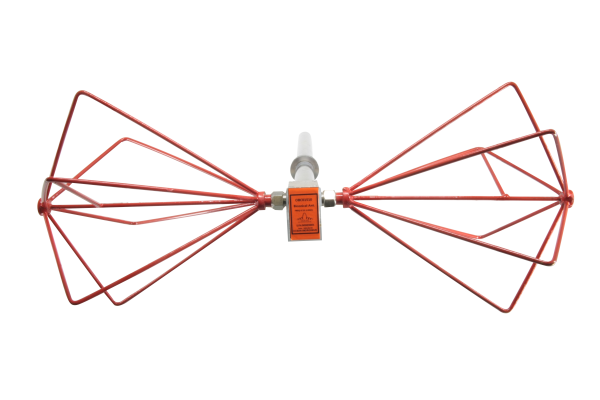

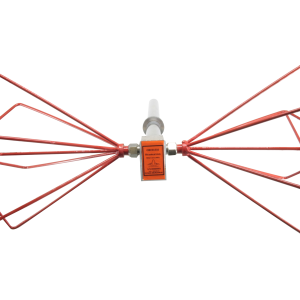

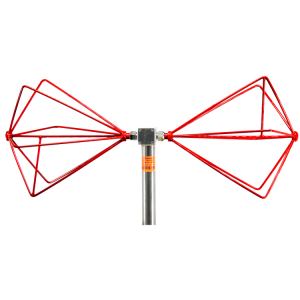

The OBC-066-10W-4 is a vertically polarized omnidirectional antenna with a frequency range of 60 MHz to 600 MHz, known for its improved pattern stability. This model is constructed from durable aluminum alloy and is powder-coated to enhance its corrosion resistance, ensuring longevity and robust performance. Its broadband design allows for efficient scanning measurements and automatic measurement systems. This design significantly reduces measurement time, a critical factor for swept broadband operations. Additionally, the antenna features low return loss and linear gain with frequency, ensuring stable and consistent performance.

The OBC-066-10W-4 is perfectly suited for a broad spectrum of applications. Initially, this model is perfect for low-frequency EMC testing, making them suitable for testing older communication systems, broadcast equipment, and industrial electronics. It primarily covers the VHF (Very High Frequency) and the lower portion of the UHF (Ultra High Frequency) spectrum. For broadcasting systems, the antenna is perfect for testing VHF broadcasting such as FM radio and VHF TV channels, ensuring compliance with emissions standards. It also supports analog TV signals and portions of UHF TV broadcasting. In public safety and military communications, this model is essential for testing public safety communications, including police, fire, and emergency services, as well as military communication systems like two-way radios and tactical radios, which operate in the VHF or lower UHF bands for short-range, reliable communication. Lastly, for industrial electronics, the OBC-066-10W-4 is used to test utility communication systems, low-frequency wireless meters, and remote monitoring devices, ensuring these systems meet regulatory standards and function properly in industrial environments.https://www.rfecho.com/product-category/emc-antenna/

Description

The OBC-066-10W-4 is a vertically polarized omnidirectional antenna with a frequency range of 60 MHz to 600 MHz, known for its improved pattern stability. This model is constructed from durable aluminum alloy and is powder-coated to enhance its corrosion resistance, ensuring longevity and robust performance. Its broadband design allows for efficient scanning measurements and automatic measurement systems. This design significantly reduces measurement time, a critical factor for swept broadband operations. Additionally, the antenna features low return loss and linear gain with frequency, ensuring stable and consistent performance.

The OBC-066-10W-4 is perfectly suited for a broad spectrum of applications. Initially, this model is perfect for low-frequency EMC testing, making them suitable for testing older communication systems, broadcast equipment, and industrial electronics. It primarily covers the VHF (Very High Frequency) and the lower portion of the UHF (Ultra High Frequency) spectrum. For broadcasting systems, the antenna is perfect for testing VHF broadcasting such as FM radio and VHF TV channels, ensuring compliance with emissions standards. It also supports analog TV signals and portions of UHF TV broadcasting. In public safety and military communications, this model is essential for testing public safety communications, including police, fire, and emergency services, as well as military communication systems like two-way radios and tactical radios, which operate in the VHF or lower UHF bands for short-range, reliable communication. Lastly, for industrial electronics, the OBC-066-10W-4 is used to test utility communication systems, low-frequency wireless meters, and remote monitoring devices, ensuring these systems meet regulatory standards and function properly in industrial environments.https://www.rfecho.com/product-category/emc-antenna/

EMC Biconical Antenna

60 MHz to 600 MHz, N Female

OBC-066-10W-4

Property

Value

Min. Frequency (MHz)

60

Max. Frequency (MHz)

600

Impedance (?)

50

Power Handling (W)

10

Balun Type Transform Ratio

4:1

Connection Type

N Female

Features

Low Return Loss

Linear gain with frequency

EMC and EMI testing

Radio Link Testing

Applications

Broadband RX-Antenna for Emission Testing

TX-Antenna for Immunity testing

Specially designed at low frequencies

Biconical Antenna 60 MHz to 600 MHz for EMI/EMC Testing

Additional information

Min. Frequency (MHz)

60

Max. Frequency (MHz)

600

Impedance (Ω)

50

Power Handling (W)

10

Max. Output Power (mW), AM

NA

Min. Gain (dBi)

NA

Max. Gain (dBi)

NA

Balun Type Transform Ratio

4:01

Connection Type

N Female
