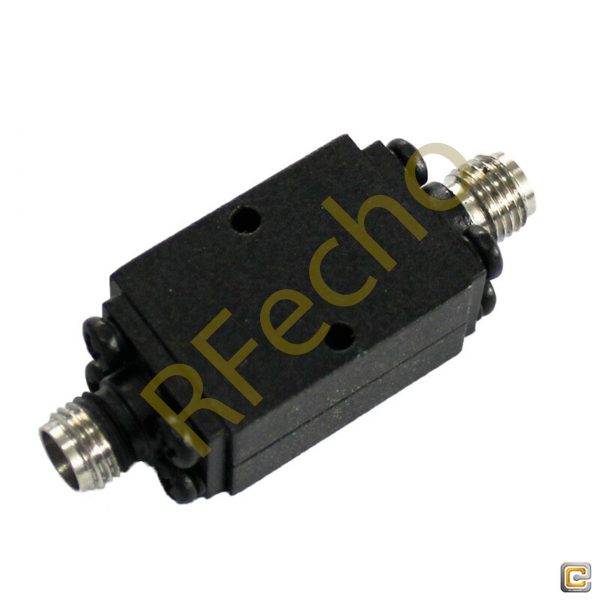

OHP-7000-26000:

  • Cut Off Frequency: 7.0GHz,
  • Pass Band Frequency: 7.0-26GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 1.8,
  • Rejection: ≥50 dB @ DC-5.85 GHz.



SKU: OHP-7000-26000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Filter (OHP) – OHP-7000-26000:

  • Cut Off Frequency: 7.0GHz,
  • Pass Band Frequency: 7.0-26GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 1.8,
  • Rejection: ≥50 dB @ DC-5.85 GHz.

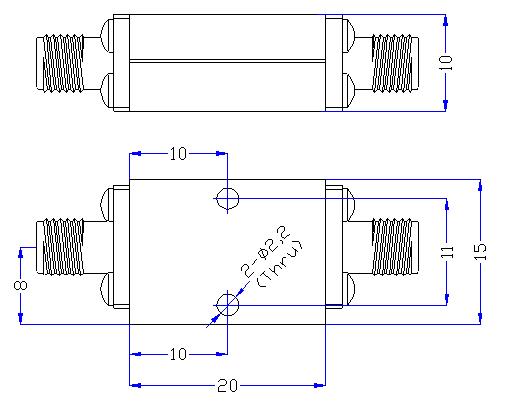

Outline

7.0 GHz to 26 GHz Rejection ≥50 dB @ DC-5.85 GHz High Pass Cavity Filter 01

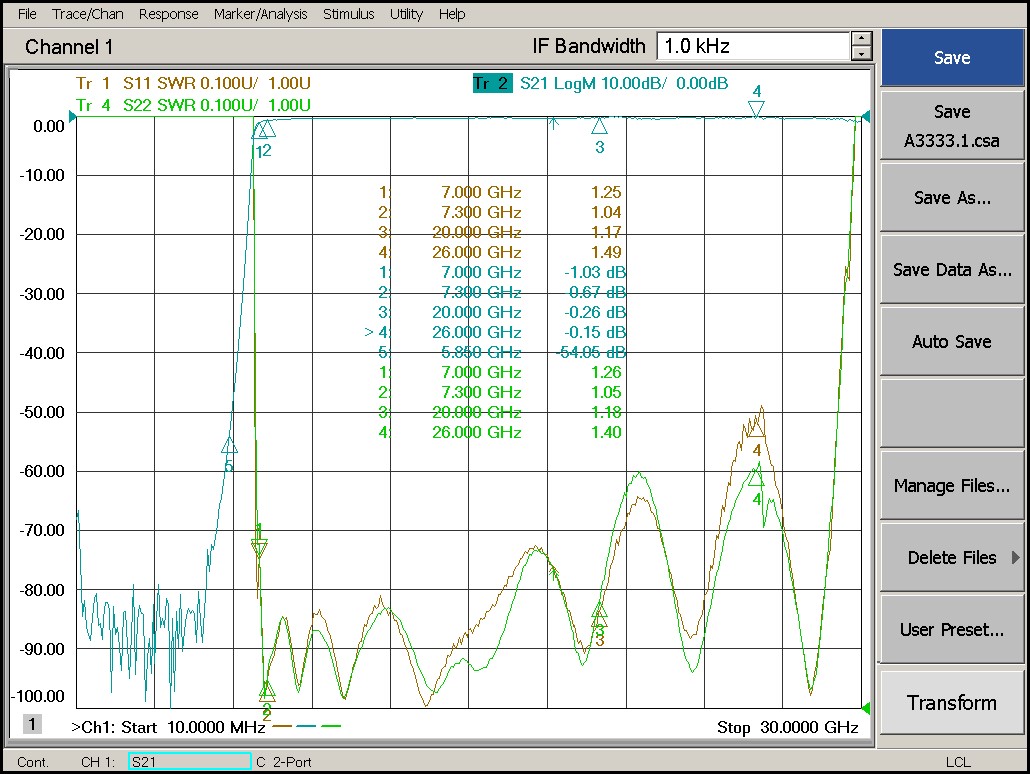

Plot

7.0 GHz to 26 GHz Rejection ≥50 dB @ DC-5.85 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.015 kg
Min. Pass Band Frequency (GHz)

7.0

Max. Pass Band Frequency (GHz)

26

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤1.5dB @ 7.0 ~7.3GHz ≤1.0dB @ 7.3~26 GHz

VSWR

≤1.5:1 @ 7.0 ~20GHz ≤1.8:1 @ 20~26GHz

Rejection

≥50 dB @ DC-5.85 GHz

Impedance (Ω)

50

Surface Finish

Guide Oxygen or Black Paint
